PLAN 1092-35

Key Specs

2528
sq ft

4
Beds

3
Baths

2
Floors

1
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

Ash is a beautiful home that features four bedrooms, three baths, an open Kitchen/Dining Room/Living Room, a front porch and a garage. Designed for use as a PEMB (Pre-engineered Metal Building) This Metal House Plan will typically be built using Z8 metal core and steel columns with insulated metal sheeting on the exterior and 2X4" studs for the interior walls. The exterior walls are usually assembled offsite and delivered to the build location. A PEMB can often be built much faster than using traditional framing, but if that isn't an option for you; the plan is also available using traditional 2x6" wood framing.

Floor Plans

Floor Plan - Main Floor

Reverse

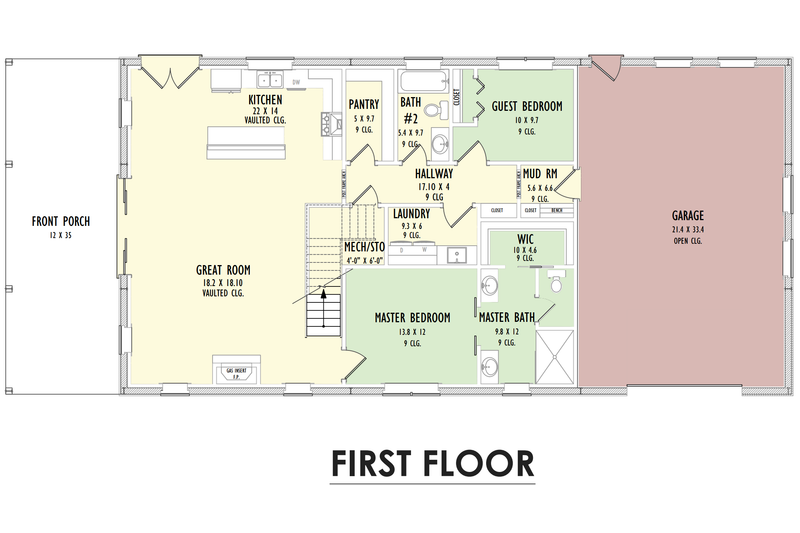

Home Plan - Barndominium Floor Plan - Main Floor Plan #1092-35

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Floor Plan - Upper Floor

Reverse

Home Plan - Barndominium Floor Plan - Upper Floor Plan #1092-35

Full Specs & Features

Dimension

Depth : 35'

Height : 29'

Width : 82'

Area

Garage : 782 sq/ft

Main Floor : 1668 sq/ft

Porch : 420 sq/ft

Upper Floor : 860 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'

Upper Ceiling Ft : 8'

Roof

Primary Pitch : 6/12

Roof Framing : PEMB and Stick

Roof Type : Metal

Secondary Pitch : 3/12

Exterior Wall Framing

Exterior Wall Finish : Metal

Framing : Z8 and 2x4

Bedroom Features

Guest Suite

Main Floor Master Bedroom

Upstairs Bedrooms

Walk In Closet

Kitchen Features

Eating Bar

Walk In Pantry Cabinet Pantry

Additional Room Features

Loft

Main Floor Laundry

Mud Room

Garage Features

Side Entry Garage

Jack & Jill Bath

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Questions? Call 1-888-447-1946

Plan Set

PDF Set:
$1298.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Foundation

Slab:
$0.00

Ideal for level lot, single layer concrete poured directly on grade.

Framing

Metal (PEMB):
$0.00

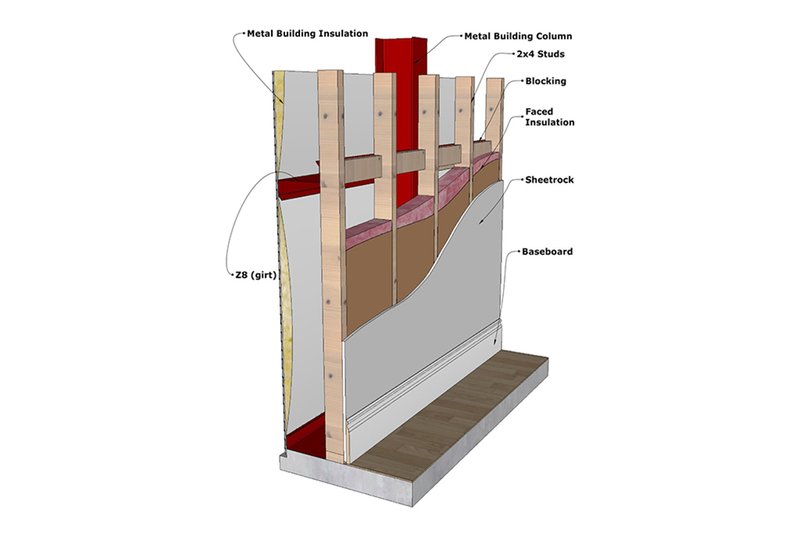

Designed for use as a PEMB (Pre-Engineered Metal Building) using Z8 metal framing with insulated panels on the exterior and 2x4" studs for the interior.

Wood 2x6:
$395.00

Wood 2x6 Exterior Walls

Additional Options

Right-Reading Reverse:
$250.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Audio Video Design:
$165.00

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List:
$495.00

Construction Guide:
$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$165.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Unlimited Use License:
$1798.00

Allows you to build this home as many times as you want.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
