PLAN 112-176
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
- Simple roof lines add to the grace of this timeless beauty. - An over-sized garage includes a full bath and can also serve as a shop and storage. - The open kitchen is highly functional and also includes a pantry. - Vaulted ceilings are enhanced by transom windows spanning from the great room to the Kitchen. - The primary bedroom features it’s own private bathroom along with a walk-in closet. - A stacking washer and dryer is located in a closet. - A secondary bedroom is served by a bathroom nearby.
Floor Plans

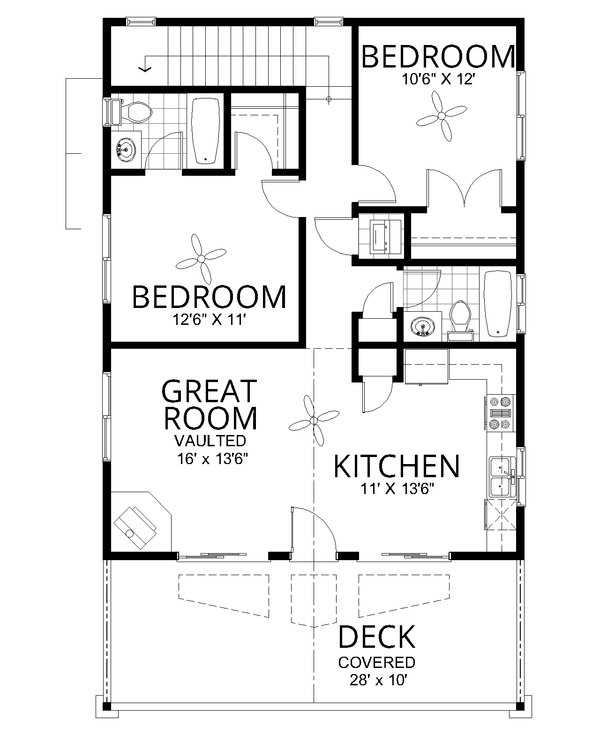

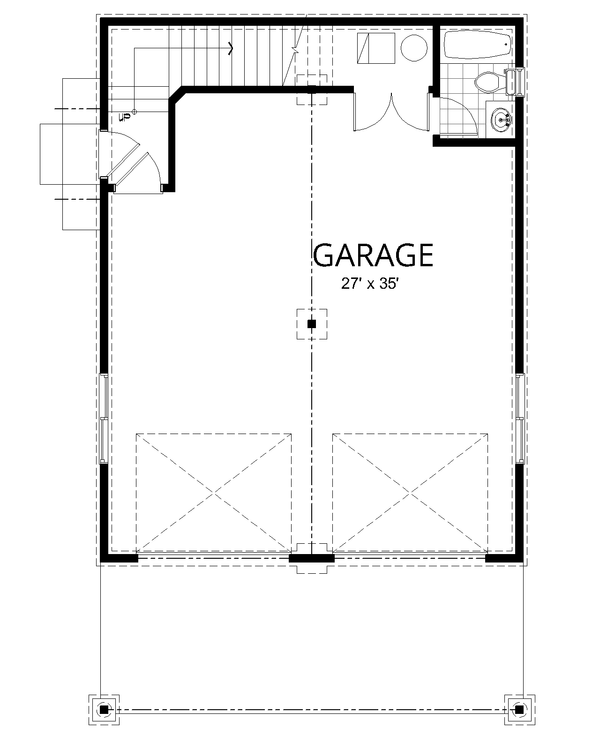

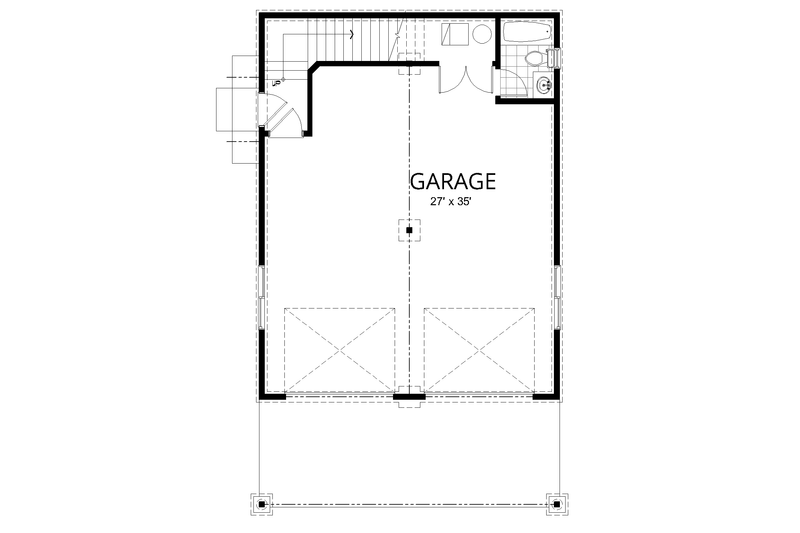

Floor Plan - Main Floor

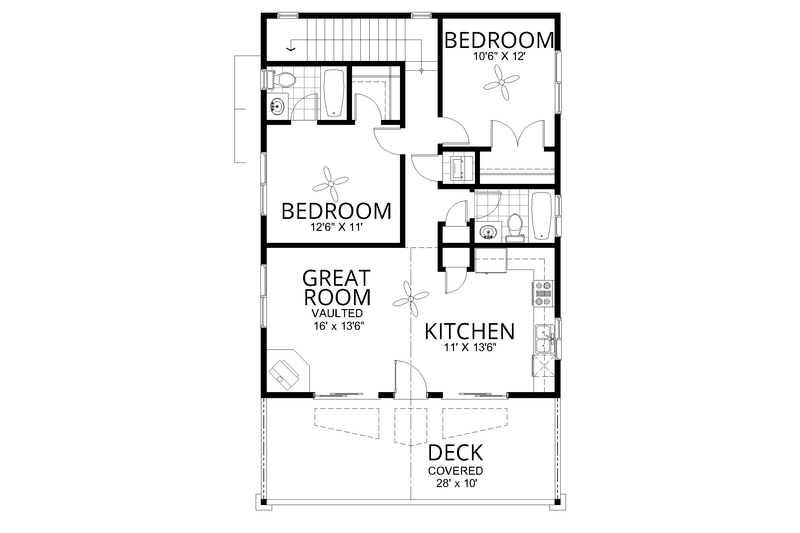

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 46'
Height : 24' 6"
Width : 28'
Area
Decks : 280 sq/ft
Garage : 814 sq/ft
Main Floor : 1008 sq/ft
Porch : 16 sq/ft
Upper Floor : 1008 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Ceiling Details : Living area ceiling vaults from 8'-0" at the wall to 10-4" at the interior ridge
Garage Ceiling : 9'
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Roof
Primary Pitch : 4/12
Roof Framing : Roof Trusses
Roof Load : 40 L.L. /15 D.L.
Roof Type : Standard/Scissor
Exterior Wall Framing
Exterior Wall Finish : Lap siding, Shakes, Stone
Framing : 2x6
Insulation : R-21
Bedroom Features
Upstairs Master Bedrooms
Walk In Closet
Additional Room Features
Great Room Living Room
Storage Area
Upstairs Laundry
Workshop
Garage Features
Front Entry Garage
Garage Under
Lot Characteristics
Suited For Corner Lot
Suited For Narrow Lot
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Grill Deck Sundeck
More
Economical To Build
Empty Nester
Suited For Vacation Home
What's Included In This Plan Set
-

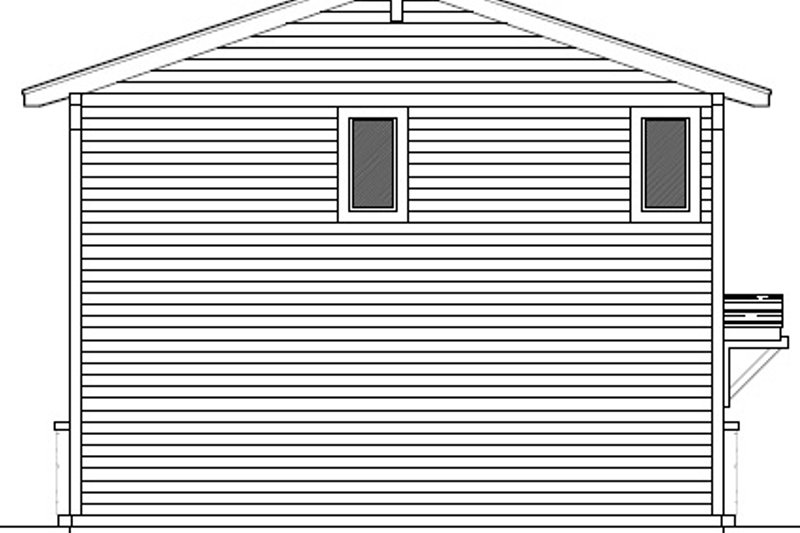

Exterior Elevations:
- Front, Rear, and Side Elevations
- Scale 1/4" = 1'-0"
- Roof Slopes
-
Floor Plans:
- Scale 1/4" = 1'-0"
- All Dimensions and Post Locations
- Beam and Header Sizes
- Door and Window Sizes
- Ceiling Details
- Floor & Deck Joist Size & Spacing
- Notes Pertaining to Code Requirements
- Mechanical & Plumbing Locations
- Electrical Layout
- Square Footage of Floor Area, Garage, Decks, and Patios
-
Foundation Plan:
- Scale 1/4" = 1'-0"
- All Dimensions and Post Locations
- All Foundation Wall and Footing Sizes
- Beam and Header Sizes
- Door and Window Sizes
- Floor & Deck Joist Sizes & Spacing
- Notes Pertaining to Code Requirements
- Mechanical & Plumbing Locations
- Electrical Layout
-
Roof Framing Plan:
- Scale 1/4" = 1'-0"
- All Framing Members Type and Size
- All Beam & Header Sizes & Locations
- Truss Hangers
- Roof Lines, Ridges, Valleys, & Hips
- Notes Pertaining to Code Requirements
- Over-Framed or Over-Build Areas
- Girder and Hip Master Truss Locations
- Raised and Lowered Plate Heights
-
Building Sections:
- Scale 1/4" = 1'-0"
- Roof Trusses and Rafter Framing
- Beam Connections and Locations
- Special Framing Details
- Plate Heights and Foundation Wall Heights
- Roof Slopes and Construction Materials
- Structural Members
-
Braced Wall Panel Plans: May Require
Local Engineering
- Scale 1/4" = 1'-0"
- Braced Panel Locations
- Alternate Braced Panel Locations
- Engineered Panel Locations
- Alternate Braced Panel Details
- Braced Panel Notes and Tables
-
Wall Sections:
- Scale 1/2" = 1'-0"
- All Materials and Construction Notes
- Insulation Requirements
-
Stair Detail:
- Scale 1/2" = 1'-0"
- Section Through Stairway
- Notes Pertaining to Code Requirements
- Floor to Floor Heights
- Rise and Run Dimensions
-
Cabinet Elevations:
- Scale 3/8" = 1'-0"
- Dimensions and Details of All Cabinets
- Notes: Nailing Schedule, Radon Notes, Structural Design Loads, Abbreviations, Truss Notes Electrical Symbol Key, & Insulation Notes
