PLAN 84-658
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 67' 8"
Height : 14'
Width : 27'
Area
First Floor: 1231 sq/ft height 8'
Garage: 419 sq/ft height 8'
Porch: 50 sq/ft
Roof
Primary Pitch : 5:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Shingle
Framing : Wood - 2x4
Bedroom Features
Main Floor Master Bedroom
Additional Room Features
Family Room Keeping Room
Main Floor Laundry
Garage Features
Rear Entry Garage
Side Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms
Bedroom 2:
110 sq/ft width 10' x depth 11'
Bedroom 3:
110 sq/ft width 10' x depth 11'
Dining Room:
114 sq/ft width 12' 8" x depth 9'
Family Room:
187 sq/ft width 15' x depth 12' 6"
Garage:
373 sq/ft width 18' 6" x depth 20' 2"
Kitchen:
105 sq/ft width 9' x depth 11' 8"
Master Bedroom:
143 sq/ft width 11' x depth 13'
What's Included In This Plan Set
- FOUNDATION LAYOUT PLAN: 1/4" Scale - Dimensioned but not engineered. Structural design of foundation needs to be provided by a local structural engineer.
- FRONT RENDERING: 1/4" Scale

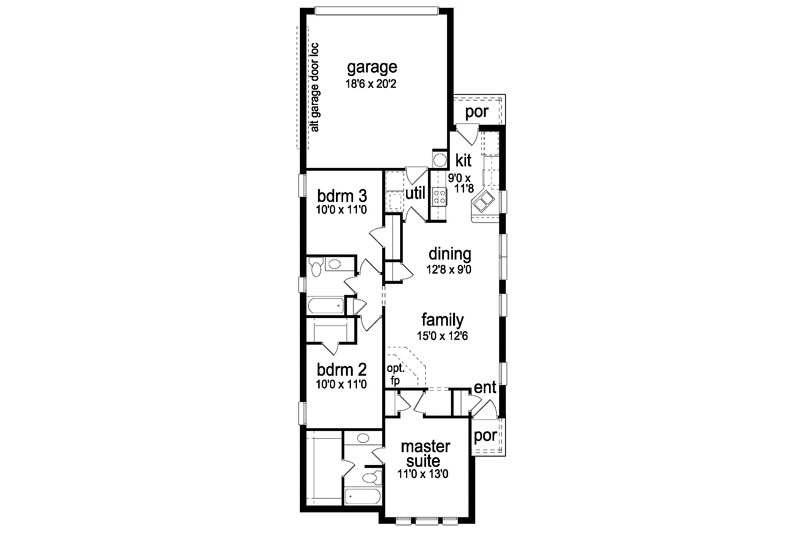

- FLOOR PLAN(S): 1/4" Scale - Electrical and plumbing noted directly on plan(s). Mechanical layouts not included.

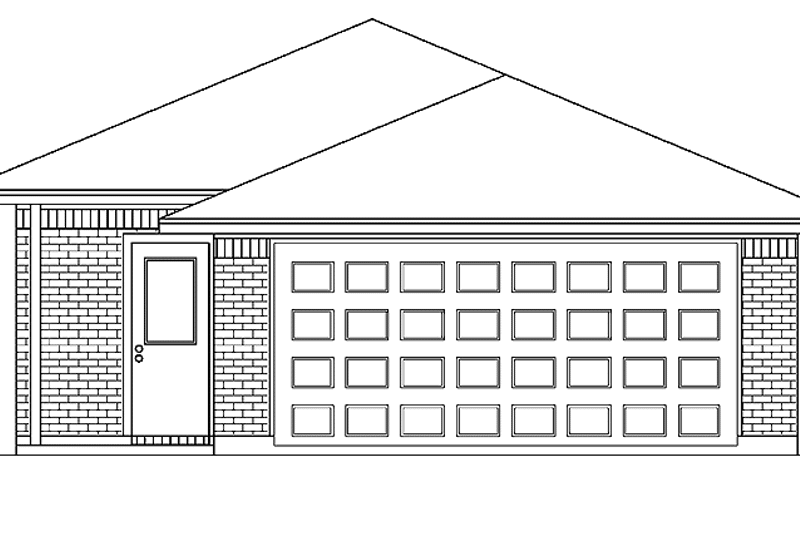

- ELEVATIONS: 1/4" scale rear elevation and 1/8" scale side elevations
- ROOF PLAN: 1/8" scale showing hips, peaks and valleys of roof. Information noted on Elevations page.
- STANDARD DETAIL PAGE: Shows typical building section (not necessarily specific to this plan), and building code notes.
Plan Set
$750.00
$800.00
$900.00
$900.00
$1400.00
$625.00
Foundation
$0.00
Framing
$0.00
Additional Options
$200.00
$50.00
$100.00
$39.00
$100.00
$75.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
