PLAN 112-171
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
- This attractive Northwest Craftsman home will be the focal point of your street. - The Great Room ceiling soars to 12' upon entering from the spacious covered Porch. - A relaxing covered Deck is sure to spawn many memorable moments - The open Dining/Kitchen area is perfect for entertaining and nightly dinners with the family. - The Kitchen is loaded with storage cabinets and is cook friendly. - A half Bath is located just off the entrance from the 2-car Garage. - Upstairs, the Master Bedroom beholds it's own Bath along with a spacious Walk-In Closet. - Two secondary Bedrooms have large closets and share an additional Bath. - The Laundry Room is conveniently located upstairs making it a breeze to wash clothes.
Floor Plans

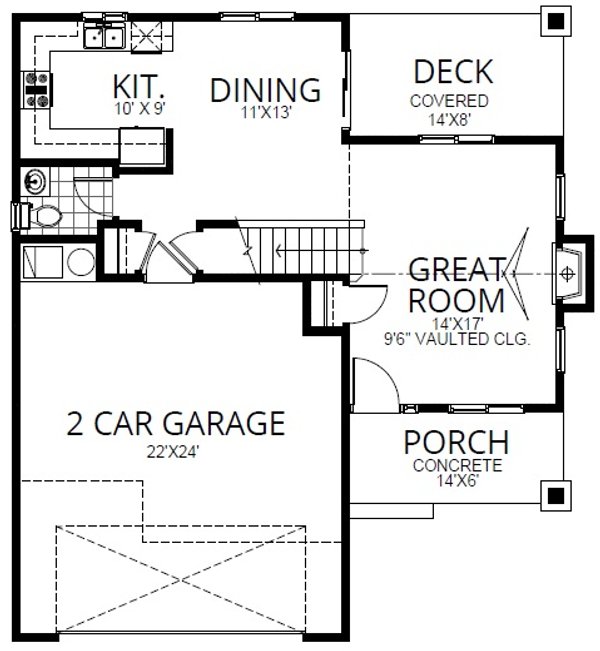

Floor Plan - Main Floor

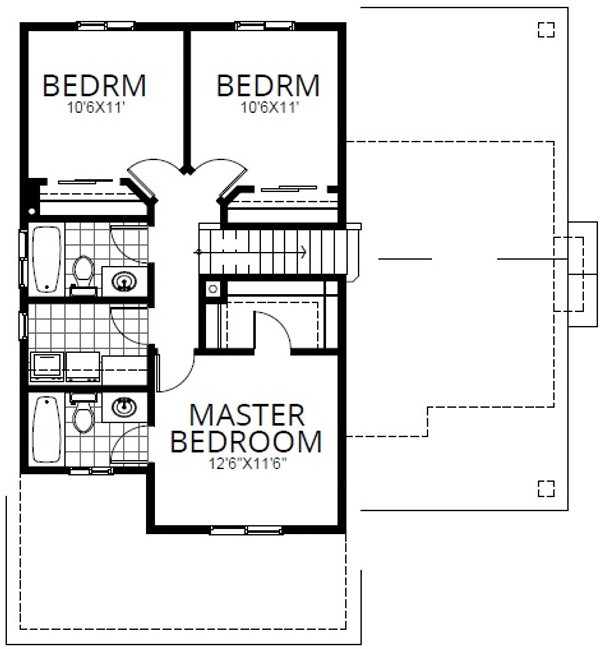

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 41'
Height : 23'
Width : 38'
Area
Decks : 112 sq/ft
Garage : 518 sq/ft
Main Floor : 636 sq/ft
Porch : 84 sq/ft
Upper Floor : 695 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Ceiling Details : Great Room: 8'-0" at walls sloping to 12'-0" at the ridge.
Garage Ceiling : 9'
Main Ceiling : 8'
Upper Ceiling Ft : 8'
Roof
Primary Pitch : 6/12
Roof Framing : Standard Trusses/Scissor Trusses
Roof Load : 40 L.L. /15 D.L.
Secondary Pitch : 5/12
Exterior Wall Framing
Exterior Wall Finish : Lap siding, Shakes, Stone
Framing : 2x6
Insulation : R-21
Bedroom Features
Split Bedrooms
Upstairs Bedrooms
Upstairs Master Bedrooms
Walk In Closet
Additional Room Features
Upstairs Laundry
Garage Features
Front Entry Garage
Lot Characteristics
Suited For Narrow Lot
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
What's Included In This Plan Set
-
Exterior Elevations:
- Front, Rear, and Side Elevations
- Scale 1/4" = 1'-0"
- Roof Slopes
-
Floor Plans:
- Scale 1/4" = 1'-0"
- All Dimensions and Post Locations
- Beam and Header Sizes
- Door and Window Sizes
- Ceiling Details
- Floor & Deck Joist Size & Spacing
- Notes Pertaining to Code Requirements
- Mechanical & Plumbing Locations
- Electrical Layout
- Square Footage of Floor Area, Garage, Decks, and Patios
-
Foundation Plan:
- Scale 1/4" = 1'-0"
- All Dimensions and Post Locations
- All Foundation Wall and Footing Sizes
- Beam and Header Sizes
- Door and Window Sizes
- Floor & Deck Joist Sizes & Spacing
- Notes Pertaining to Code Requirements
- Mechanical & Plumbing Locations
- Electrical Layout
-
Roof Framing Plan:
- Scale 1/4" = 1'-0"
- All Framing Members Type and Size
- All Beam & Header Sizes & Locations
- Truss Hangers
- Roof Lines, Ridges, Valleys, & Hips
- Notes Pertaining to Code Requirements
- Over-Framed or Over-Build Areas
- Girder and Hip Master Truss Locations
- Raised and Lowered Plate Heights
-
Building Sections:
- Scale 1/4" = 1'-0"
- Roof Trusses and Rafter Framing
- Beam Connections and Locations
- Special Framing Details
- Plate Heights and Foundation Wall Heights
- Roof Slopes and Construction Materials
- Structural Members
-
Braced Wall Panel Plans: May Require
Local Engineering
- Scale 1/4" = 1'-0"
- Braced Panel Locations
- Alternate Braced Panel Locations
- Engineered Panel Locations
- Alternate Braced Panel Details
- Braced Panel Notes and Tables
-
Wall Sections:
- Scale 1/2" = 1'-0"
- All Materials and Construction Notes
- Insulation Requirements
-
Stair Detail:
- Scale 1/2" = 1'-0"
- Section Through Stairway
- Notes Pertaining to Code Requirements
- Floor to Floor Heights
- Rise and Run Dimensions
-
Cabinet Elevations:
- Scale 3/8" = 1'-0"
- Dimensions and Details of All Cabinets
- Notes: Nailing Schedule, Radon Notes, Structural Design Loads, Abbreviations, Truss Notes Electrical Symbol Key, & Insulation Notes
