Plan Description
This home's exterior boasts various architectural details creating a narrow lot home design with great curb appeal. The open concept floor plan consists of a kitchen with breakfast bar, great room with fireplace, and dining/breakfast room with a bay window and patio access. Just off the garage entrance is a laundry room and a large pantry. The master bedroom has a private bath including a double bowl vanity and linen closet. The secondary bedrooms are located in a hallway to themselves and a convenient full bath is nearby.
Floor Plans

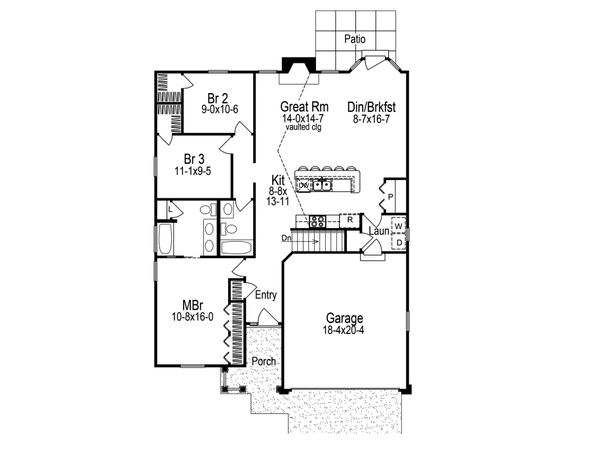

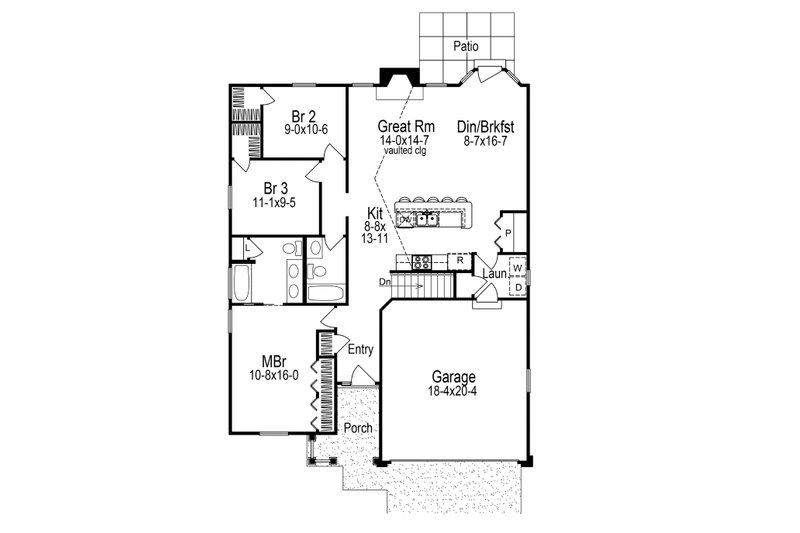

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 48' 4"
Height : 19' 7"
Width : 38'
Area
Basement : 1344 sq/ft
Garage : 373 sq/ft
Main Floor : 1344 sq/ft
Porch : 178 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 8'
Roof
Primary Pitch : 6:12
Roof Framing : Truss
Roof Type : Composite Shingle
Secondary Pitch : 9:12
Exterior Wall Framing
Exterior Wall Finish : Board and Batten, Wood Shake/Shingle, Stone Veneer
Framing : 2x4
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Additional Room Features
Great Room Living Room
Main Floor Laundry
Garage Features
Front Entry Garage
Lot Characteristics
Suited For Narrow Lot
Outdoor Spaces
Covered Front Porch
More
Economical To Build
Empty Nester
Energy Efficient Features
Energy Efficient Design
What's Included In This Plan Set
