PLAN 42-411
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans

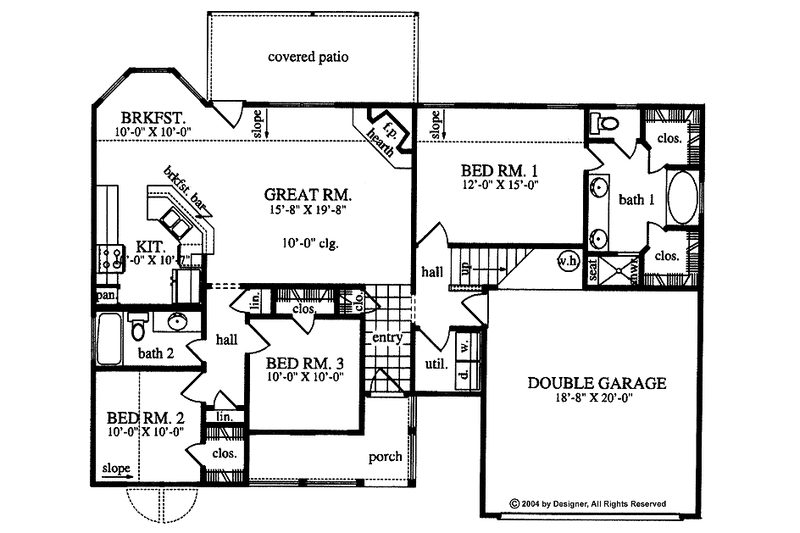

Floor Plan - Main Floor

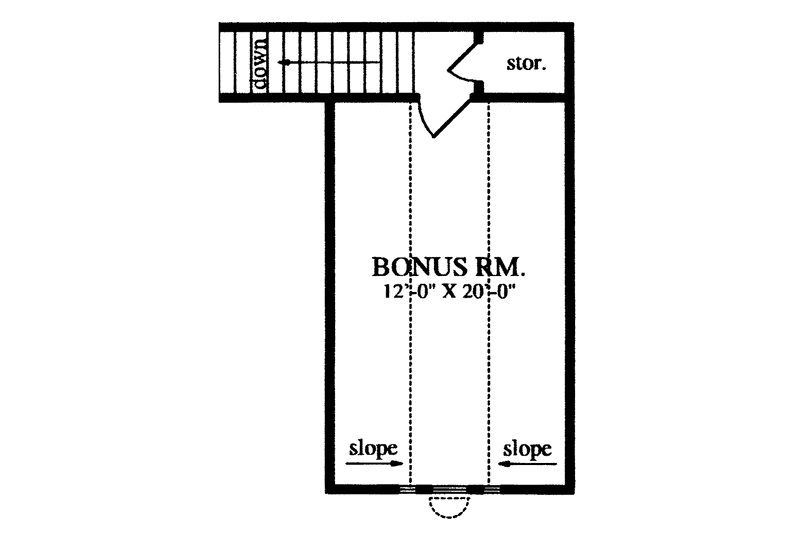

Floor Plan - Other Floor
Full Specs & Features
Dimension
Depth : 44' 8"
Height : 20'
Width : 54' 8"
Area
Bonus: 312 sq/ft
First Floor: 1360 sq/ft height 8'
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x4
Bedroom Features
Fireplace
Main Floor Master Bedroom
Split Bedrooms
Kitchen Features
Breakfast Nook
Kitchenette Wet Bar
Additional Room Features
Great Room Living Room
Main Floor Laundry
Open Floor Plan
Unfinished Future Space
Outdoor Spaces
Courtyard
Covered Front Porch
Covered Rear Porch
Wrap Around Porch
Rooms
3rd BR Closet:
16 sq/ft width 5' x depth 3' 4"
Bathroom 2:
45 sq/ft width 5' x depth 9'
Bedroom 2:
100 sq/ft width 10' x depth 10'
Bedroom 2 Closet:
12 sq/ft width 6' x depth 2'
Bedroom 3:
100 sq/ft width 10' x depth 10'
Bedroom 3 Closet:
12 sq/ft width 6' x depth 2'
Bonus Room - Finished:
240 sq/ft width 12' x depth 20'
Breakfast Room:
100 sq/ft width 10' x depth 10'
Coat Closet:
5 sq/ft width 2' 6" x depth 2'
Covered Porch:
60 sq/ft width 15' x depth 4'
Dining Room:
100 sq/ft width 10' x depth 10'
Foyer:
39 sq/ft width 4' 2" x depth 9' 6"
Front Entry:
41 sq/ft width 4' 2" x depth 10'
Garage:
380 sq/ft width 19' x depth 20'
Garage Storage:
36 sq/ft width 10' x depth 3' 8"
Gathering Room:
155 sq/ft width 10' x depth 15' 6"
Hall:
557 sq/ft width 30' 8" x depth 18' 2"
Hall Bathroom:
50 sq/ft width 5' x depth 10'
Hall Closet:
5 sq/ft width 2' 6" x depth 2'
Kitchen:
105 sq/ft width 10' 6" x depth 10'
Laundry Room:
32 sq/ft width 5' 10" x depth 5' 6"
Master Bathroom:
166 sq/ft width 16' 8" x depth 10'
Master Bedroom:
180 sq/ft width 15' x depth 12'
Master Closet:
25 sq/ft width 5' x depth 5'
Master Closet Two:
25 sq/ft width 5' x depth 5'
Pantry:
4 sq/ft width 2' x depth 2'
Patio:
149 sq/ft width 18' 8" x depth 8'
Porch - Front:
70 sq/ft width 15' x depth 4' 8"
Porch - Rear:
149 sq/ft width 18' 8" x depth 8'
Utility Room:
31 sq/ft width 5' 4" x depth 5' 10"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

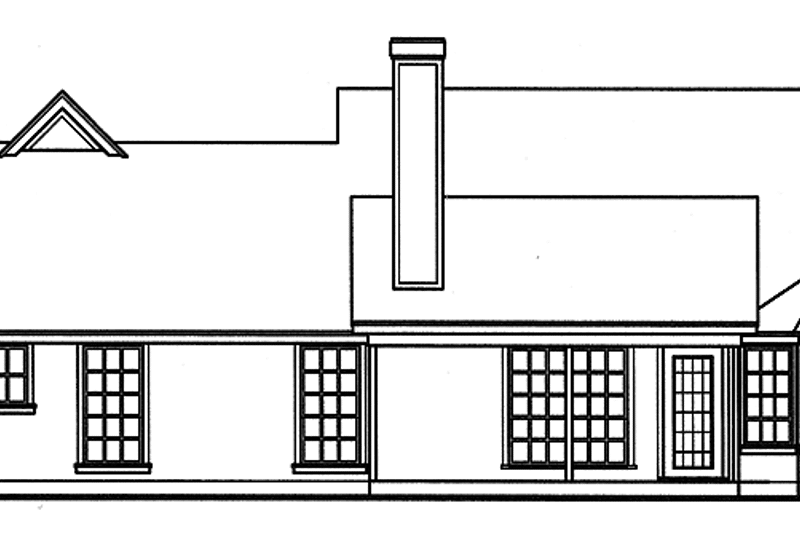

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
