PLAN 117-1017
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 50'
Height : 23' 4"
Width : 64'
Area
Garage : 660 sq/ft

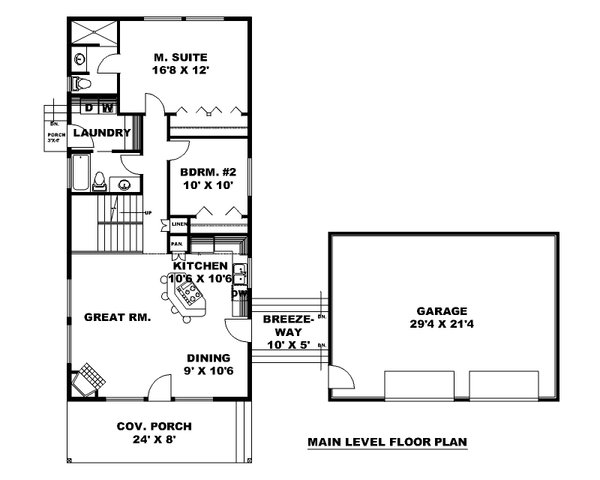

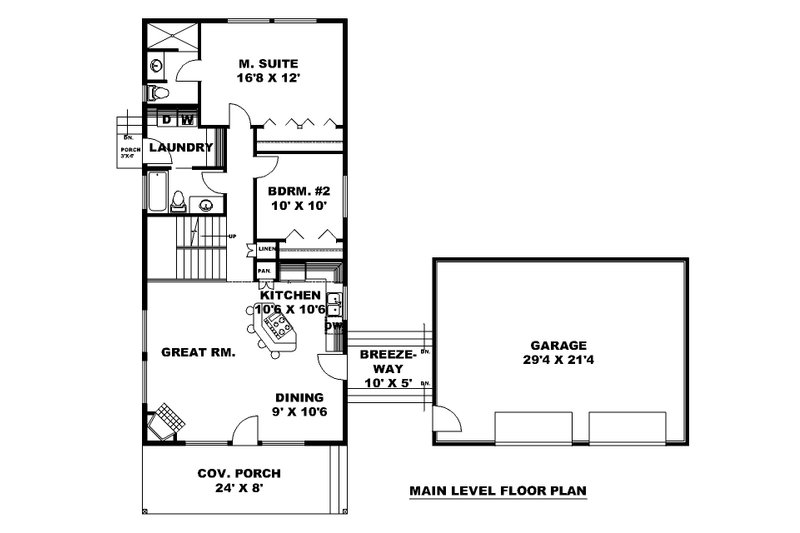

Main Floor : 1200 sq/ft

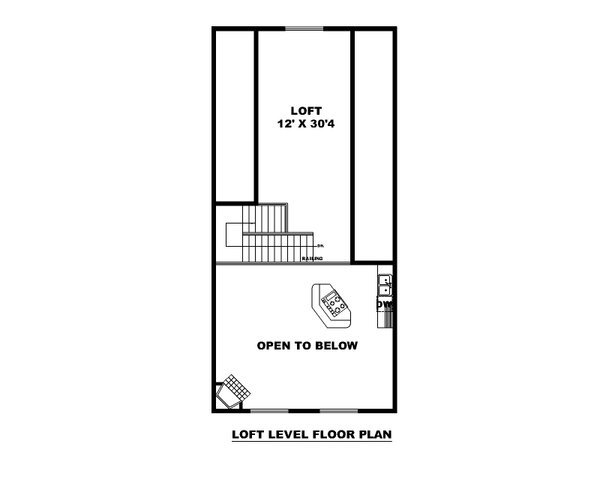

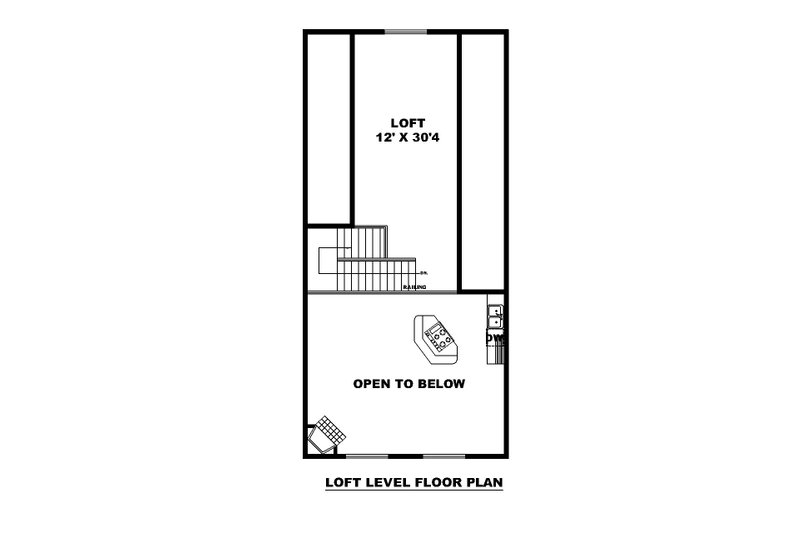

Upper Floor : 400 sq/ft
Ceiling
Ceiling Details : Main ceiling vaults to 19'-6" Upper ceiling vaults to 8'
Garage Ceiling : 8' 6"
Main Ceiling : 8'
Upper Ceiling Ft : 5'
Roof
Primary Pitch : 12/12
Roof Framing : Truss/stick
Secondary Pitch : 6/12, 7.25/12
Exterior Wall Framing
Framing : 2x6
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Additional Room Features
Great Room Living Room
Loft
Mud Room
Garage Features
Detached Garage
Oversized Garage
Outdoor Spaces
Breezeway
Covered Front Porch
More
Empty Nester
Suited For Vacation Home
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

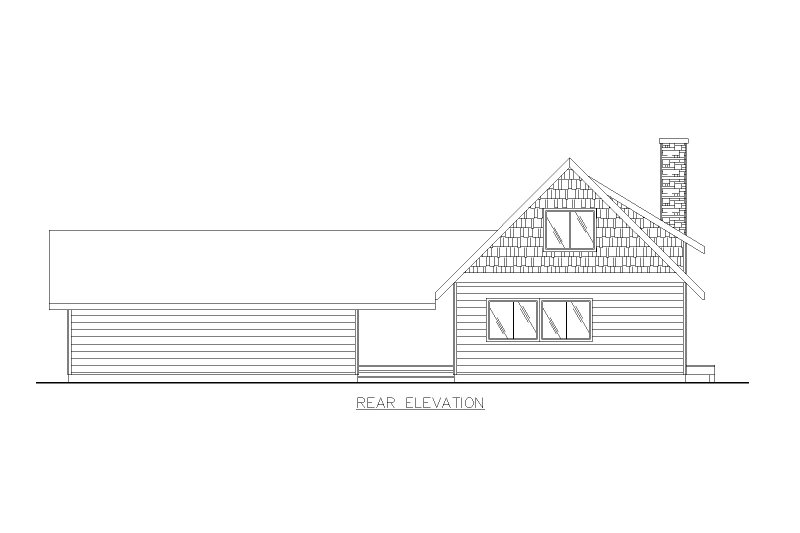

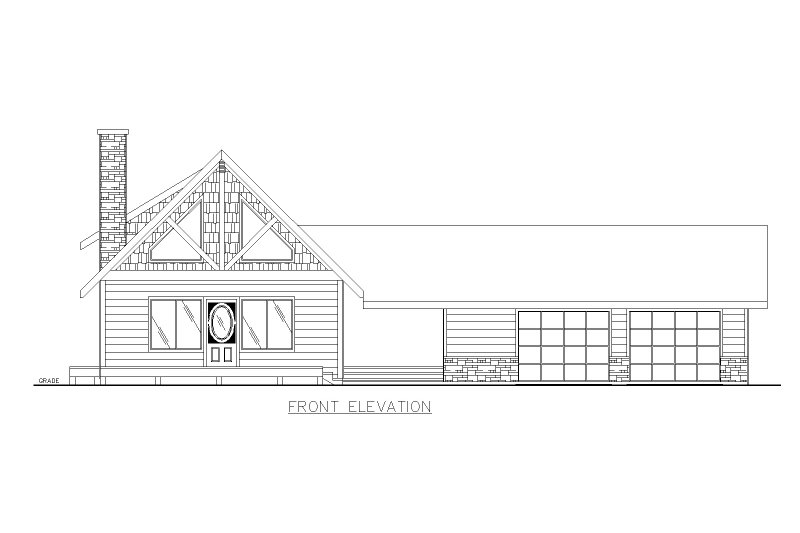

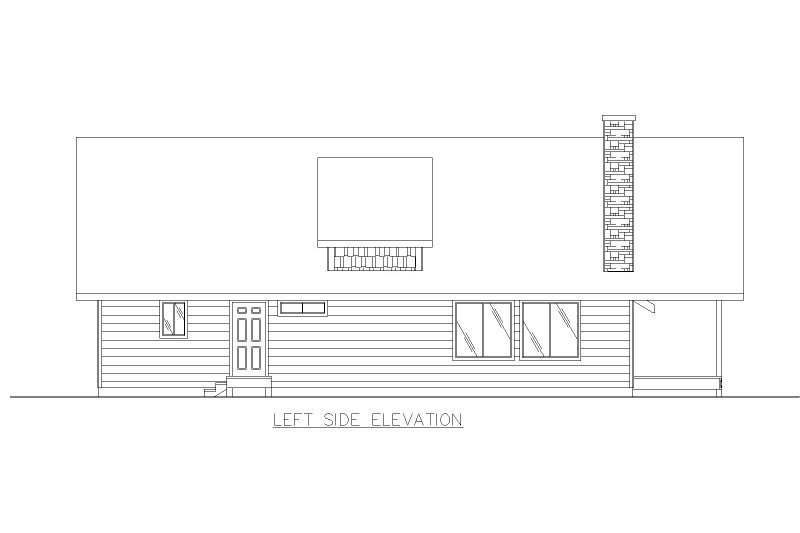

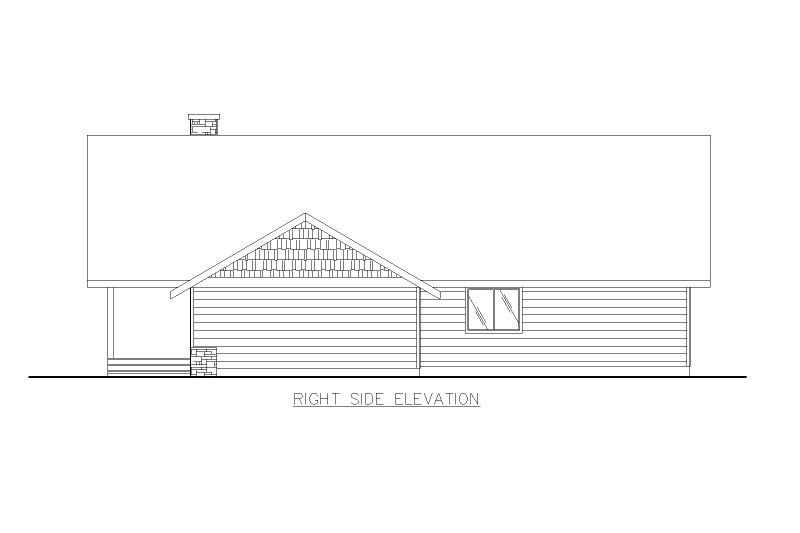

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$1145.00
$1245.00
$1245.00
$1245.00
$1395.00
Foundation
$0.00
Framing
$0.00
Additional Options
$165.00
$295.00
$39.00
$165.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
