PLAN 1058-5

Home > Style > Mediterranean

Key Specs

1684
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

A front courtyard provides a beautiful and interesting introduction to this home. Out back, the loggia and optional summer kitchen add even more space, accessed via two sets of French doors from the gathering room and owner's suite. The kitchen's snack bar lets you serve up appetizers while chatting with family and friends. An impressive shower highlights the master bath.

Floor Plans

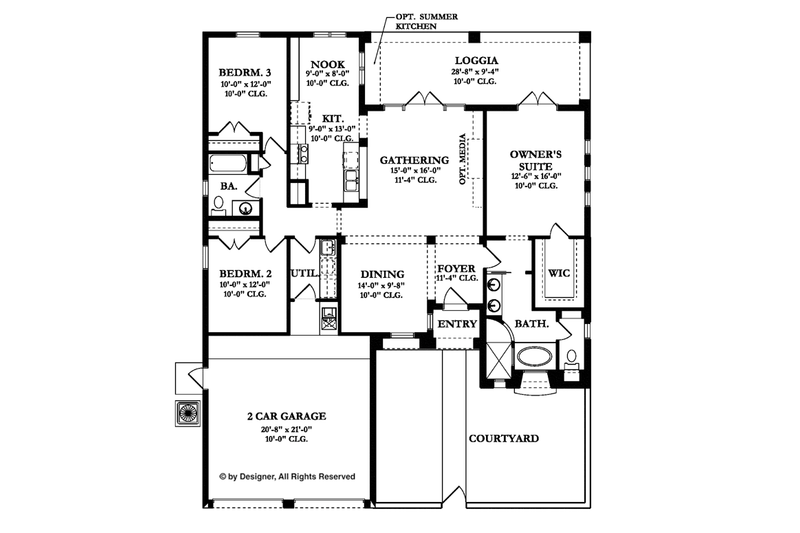

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Full Specs & Features

Dimension

Depth : 60' 8"

Height : 19'

Width : 49' 4"

Area

First Floor: 1684 sq/ft

Garage: 509 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 4:12

Roof Framing : Truss

Roof Type : Tile

Exterior Wall Framing

Exterior Wall Finish : Stucco

Framing : Block

Bedroom Features

Formal Dining Room

Main Floor Master Bedroom

Split Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Additional Room Features

Great Room Living Room

Main Floor Laundry

Open Floor Plan

Garage Features

Front Entry Garage

Outdoor Spaces

Courtyard

Covered Front Porch

Covered Rear Porch

Rooms

Bedroom 2:

width 10' x depth 12'

Bedroom 3:

width 10' x depth 12'

Dining:

width 14' x depth 9' 8"

Garage:

509 sq/ft width 20' 8" x depth 21'

Gathering Room:

width 15' x depth 16'

Kitchen:

width 9' x depth 13'

Master Bedroom:

width 12' 6" x depth 16'

Nook:

width 9' x depth 8'

Porch Front:

40 sq/ft

Porch Rear:

267 sq/ft

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Questions? Call 1-888-447-1946

Plan Set

5 Copy Set:
$1520.00

5 printed plan sets mailed to you.

CAD Set:
$1840.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

PDF Set:
$1840.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Foundation

Slab:
$200.00

Ideal for level lot, single layer concrete poured directly on grade.

Framing

Block:
$0.00

Concrete Block Exterior Walls (Upper Levels may be wood-framed)

Additional Options

Right-Reading Reverse:
$240.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets:
$40.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Additional Use License:
$920.00

Allows you to build one more home for each additional license purchased.

Audio Video Design:
$80.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide:
$31.20

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$80.00

Receive an overlay sheet with suggested placement of lighting fixtures.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
