Plan Description
- A Contemporary Modern façade is blended with a Mid-Century vibe. - 9’-0” flat and vaulted ceilings provide the sense of volume throughout the Main Floor. - The open living area with vaulted ceilings keeps everyone in on the conversation. - The Kitchen features plenty of countertop space including an island with an eating bar, not to mention a large Walk-In Pantry. - The Den can serve as a Home Office or double as a Guest Bedroom. - The Laundry Room off of the 2-Car Garage is convenient and keeps clutter from entering the home. - The spacious Main Suite has a private Bath with double sinks, a make-up counter, a Walk-In Shower, and a private toilet a not to mention the Walk-In Closet. - Two secondary Bedrooms share a Hall Bath and allow privacy from each other as well as the Main.
Floor Plans

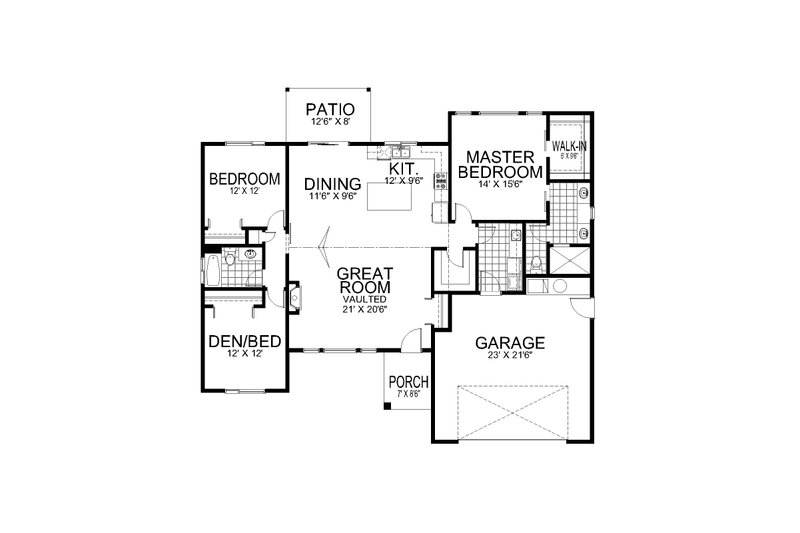

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 52' 6"
Height : 16' 9"
Width : 58'
Area
Garage : 535 sq/ft
Main Floor : 1762 sq/ft
Patios : 100 sq/ft
Porch : 60 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Ceiling Details : Living Area: 9'-0" at walls to 1'-6" at interior ridge
Garage Ceiling : 9' 6"
Main Ceiling : 9'
Roof
Primary Pitch : 4/12
Roof Framing : Roof Trusses
Roof Load : 40 L.L. /15 D.L.
Roof Type : Standard/Scissor
Secondary Pitch : 3/12
Exterior Wall Framing
Exterior Wall Finish : Lap siding, Sheet Siding
Framing : 2x6
Insulation : R-21
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Main Floor Laundry
Garage Features
Front Entry Garage
Lot Characteristics
Suited For Corner Lot
Suited For Narrow Lot
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
More
Economical To Build
Empty Nester
Suited For Vacation Home
Energy Efficient Features
Energy Efficient Design
What's Included In This Plan Set
-

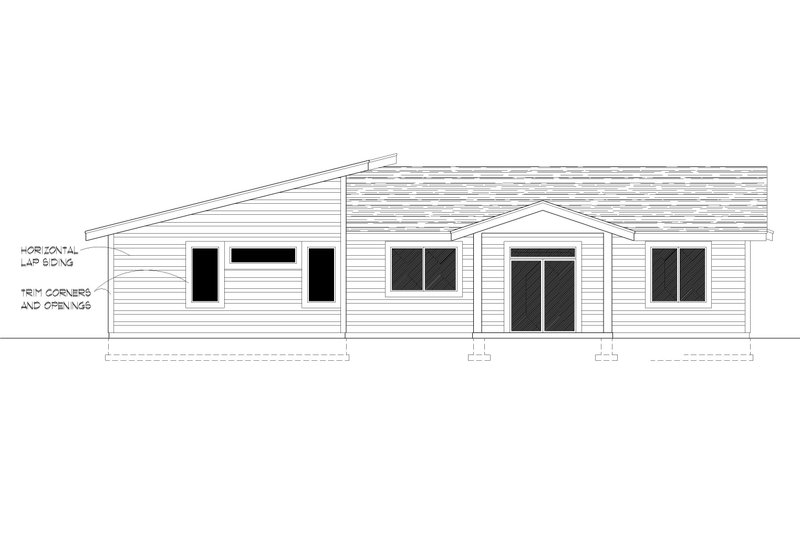

Exterior Elevations:
- Front, Rear, and Side Elevations
- Scale 1/4" = 1'-0"
- Roof Slopes
-
Floor Plans:
- Scale 1/4" = 1'-0"
- All Dimensions and Post Locations
- Beam and Header Sizes
- Door and Window Sizes
- Ceiling Details
- Floor & Deck Joist Size & Spacing
- Notes Pertaining to Code Requirements
- Mechanical & Plumbing Locations
- Electrical Layout
- Square Footage of Floor Area, Garage, Decks, and Patios
-
Foundation Plan:
- Scale 1/4" = 1'-0"
- All Dimensions and Post Locations
- All Foundation Wall and Footing Sizes
- Beam and Header Sizes
- Door and Window Sizes
- Floor & Deck Joist Sizes & Spacing
- Notes Pertaining to Code Requirements
- Mechanical & Plumbing Locations
- Electrical Layout
-
Roof Framing Plan:
- Scale 1/4" = 1'-0"
- All Framing Members Type and Size
- All Beam & Header Sizes & Locations
- Truss Hangers
- Roof Lines, Ridges, Valleys, & Hips
- Notes Pertaining to Code Requirements
- Over-Framed or Over-Build Areas
- Girder and Hip Master Truss Locations
- Raised and Lowered Plate Heights
-
Building Sections:
- Scale 1/4" = 1'-0"
- Roof Trusses and Rafter Framing
- Beam Connections and Locations
- Special Framing Details
- Plate Heights and Foundation Wall Heights
- Roof Slopes and Construction Materials
- Structural Members
-
Braced Wall Panel Plans: May Require
Local Engineering
- Scale 1/4" = 1'-0"
- Braced Panel Locations
- Alternate Braced Panel Locations
- Engineered Panel Locations
- Alternate Braced Panel Details
- Braced Panel Notes and Tables
-
Wall Sections:
- Scale 1/2" = 1'-0"
- All Materials and Construction Notes
- Insulation Requirements
-
Stair Detail:
- Scale 1/2" = 1'-0"
- Section Through Stairway
- Notes Pertaining to Code Requirements
- Floor to Floor Heights
- Rise and Run Dimensions
-
Cabinet Elevations:
- Scale 3/8" = 1'-0"
- Dimensions and Details of All Cabinets
- Notes: Nailing Schedule, Radon Notes, Structural Design Loads, Abbreviations, Truss Notes Electrical Symbol Key, & Insulation Notes
Questions? Call 1-888-447-1946
Plan Set
PDF Set:
$800.00
$800.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy and PDF Set:
$1000.00
$1000.00
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set:
$1280.00
$1280.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
CAD Single Build:
$1280.00
$1280.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
PDF Unlimited Build:
$1400.00
$1400.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Unlimited Build:
$1840.00
$1840.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation
Crawlspace:
$0.00
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Framing
Wood 2x6:
$0.00
$0.00
Wood 2x6 Exterior Walls
Additional Options
Right-Reading Reverse:
$236.00
$236.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets:
$60.00
$60.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design:
$132.00
$132.00
Receive an overlay sheet with suggested placement of audio and video components.
Comprehensive Material List:
$236.00
$236.00
A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.
Construction Guide:
$31.20
$31.20
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$132.00
$132.00
Receive an overlay sheet with suggested placement of lighting fixtures.
