PLAN 430-99
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans

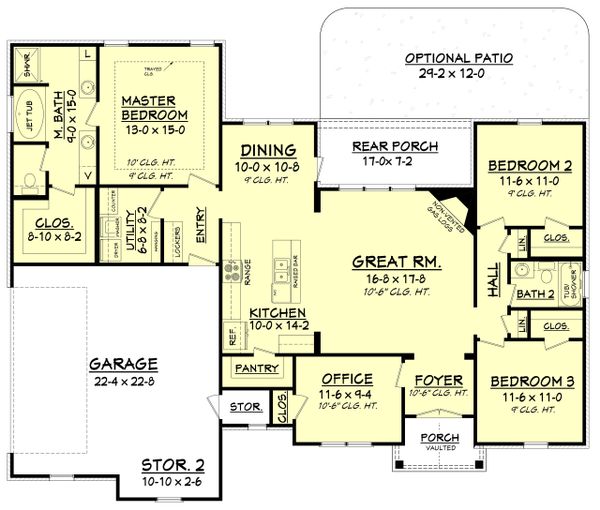

Floor Plan - Main Floor
Floor Plan - Other Floor
Full Specs & Features
Dimension
Depth : 49' 8"
Height : 22' 8"
Width : 62' 6"
Area
First Floor: 1769 sq/ft height 9'
Garage: 525 sq/ft
Storage: 50 sq/ft
Ceiling
Main Ceiling : 9'
Roof
Primary Pitch : 12:12
Roof Framing : stick
Roof Load : 40
Roof Type : shingles
Secondary Pitch : 9:12
Exterior Wall Framing
Exterior Wall Finish : brick/ siding
Framing : 2x4
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Main Floor Laundry
Mud Room
Play Flex Room
Storage Area
Garage Features
Side Entry Garage
Lot Characteristics
Suited For Sloping Lot
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
More
Economical To Build
Empty Nester
Rooms
Bedroom 2:
127 sq/ft width 11' 6" x depth 11'
Bedroom 3:
127 sq/ft width 11' 6" x depth 11'
Covered Front Porch:
46 sq/ft
Covered Rear Porch:
122 sq/ft width 17' x depth 7' 2"
Dining Area:
107 sq/ft width 10' x depth 10' 8"
Garage:
525 sq/ft width 22' 4" x depth 22' 8"
Garage Storage:
50 sq/ft
Great Room:
294 sq/ft width 16' 8" x depth 17' 8"
Kitchen:
142 sq/ft width 10' x depth 14' 2"
Master Closet:
width 8' x depth 8' 2"
Master Bath:
135 sq/ft width 9' x depth 15'
Master Bedroom:
195 sq/ft width 13' x depth 15'
Office:
107 sq/ft width 11' 6" x depth 9' 4"
Optional Patio:
width 29' 2" x depth 12'
Utility Room:
54 sq/ft width 6' 8" x depth 8' 2"
