PLAN 434-4
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
This wonderful Bungalow hame encompasses an open floor plan, generous
room sizes, built-ins, and an abundance of architectural accents.
Floor Plans

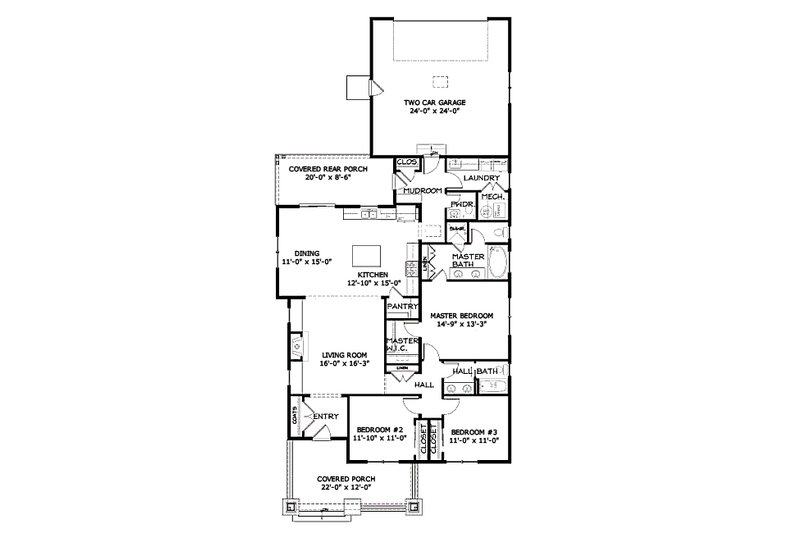

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 84'
Height : 19'
Width : 40'
Area
Decks : 167 sq/ft
Garage : 567 sq/ft
Main Floor : 1833 sq/ft
Porch : 216 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Ceiling Details : Garage ceiling is 9'-6" min.
Garage Ceiling : 9'
Main Ceiling : 9'
Roof
Primary Pitch : 6:12
Roof Framing : Trusses
Roof Load : Live 25lbs psf.
Roof Type : Composition
Secondary Pitch : 6:12
Exterior Wall Framing
Exterior Wall Finish : Lap Siding
Framing : 2"x6"
Insulation : Batt
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Kitchen Features
Breakfast Nook
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Main Floor Laundry
Mud Room
Garage Features
Rear Entry Garage
Lot Characteristics
Suited For Corner Lot
Suited For Narrow Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
What's Included In This Plan Set
The typical plan set will include:
» See important
information before purchasing.
- Cover Sheet
- General Notes
- Energy Notes
- Energy Detail; drawings
- Foundation Plan: 1/4" - 1'0"
- Main and Upper Level Floor Framing: 1/4" - 1'0"
- Main and Upper Level Floor Plan: 1/4" - 1'0"
- Roof Framing Plan: 1/4" - 1'0"
- Building Sections: 1/4" - 1' 0"
- Typical Wall Section: 1/2" - 1' 0"

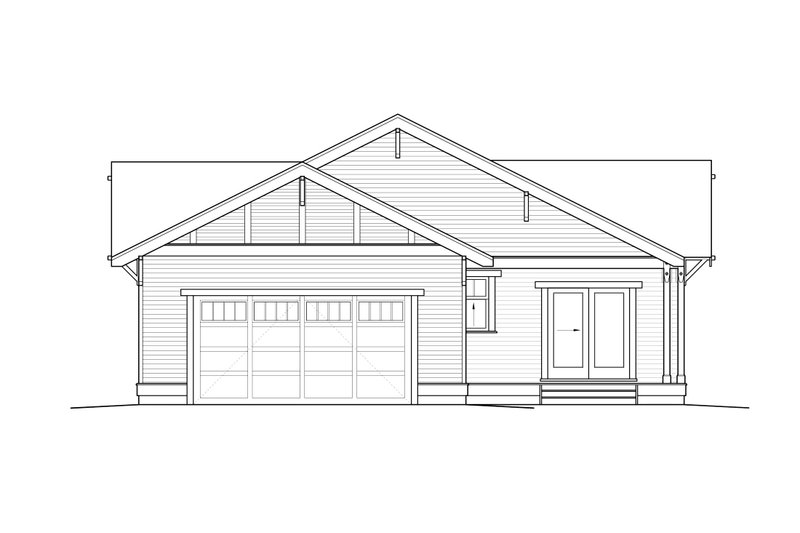

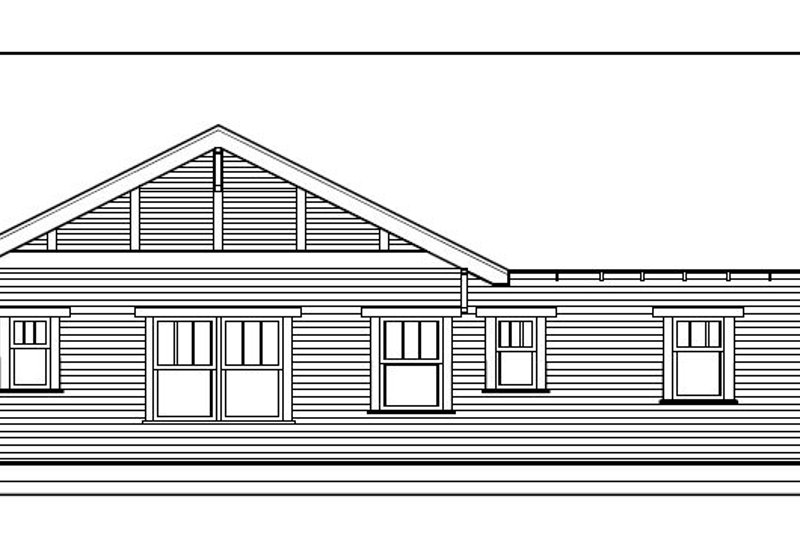

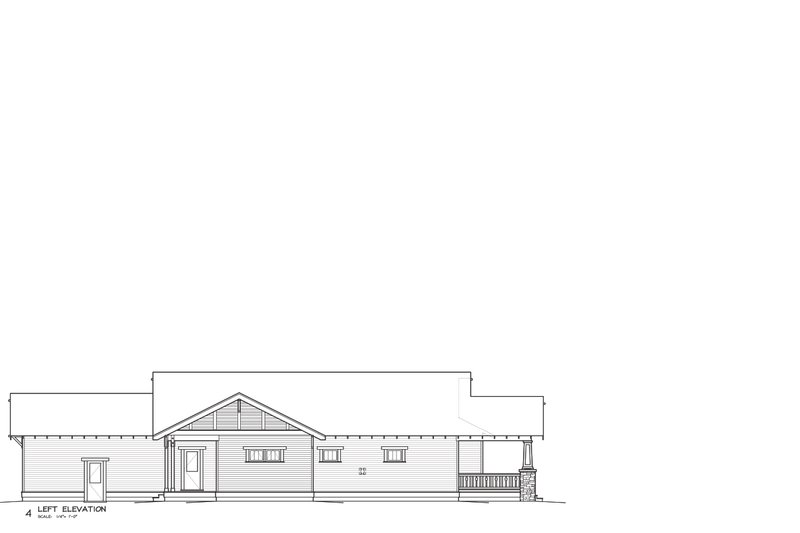

- Exterior Elevations
- Exterior Details
- Electrical switch and outlet plan: 1/4" - 1'0"
Questions? Call 1-888-447-1946
Plan Set
5 Copy Set:
$760.00
$760.00
5 printed plan sets mailed to you.
8 Copy Set:
$880.00
$880.00
8 printed plan sets mailed to you.
Reproducible Set:
$1000.00
$1000.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
PDF Set:
$1200.00
$1200.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set:
$2000.00
$2000.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Single Set:
$600.00
$600.00
One printed set for bidding purposes only. Not a legal building set for construction.
Foundation
Crawlspace:
$0.00
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab:
$80.00
$80.00
Ideal for level lot, single layer concrete poured directly on grade.
Framing
Wood 2x6:
$0.00
$0.00
Wood 2x6 Exterior Walls
Additional Options
Right-Reading Reverse:
$360.00
$360.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets:
$40.00
$40.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design:
$120.00
$120.00
Receive an overlay sheet with suggested placement of audio and video components.
Comprehensive Material List:
$236.00
$236.00
A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.
Construction Guide:
$31.20
$31.20
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$120.00
$120.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets:
$80.00
$80.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
