PLAN 1098-16
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
This bungalow design floor plan is 1872 sq ft and has 3 bedrooms and 2.5 bathrooms.
Floor Plans

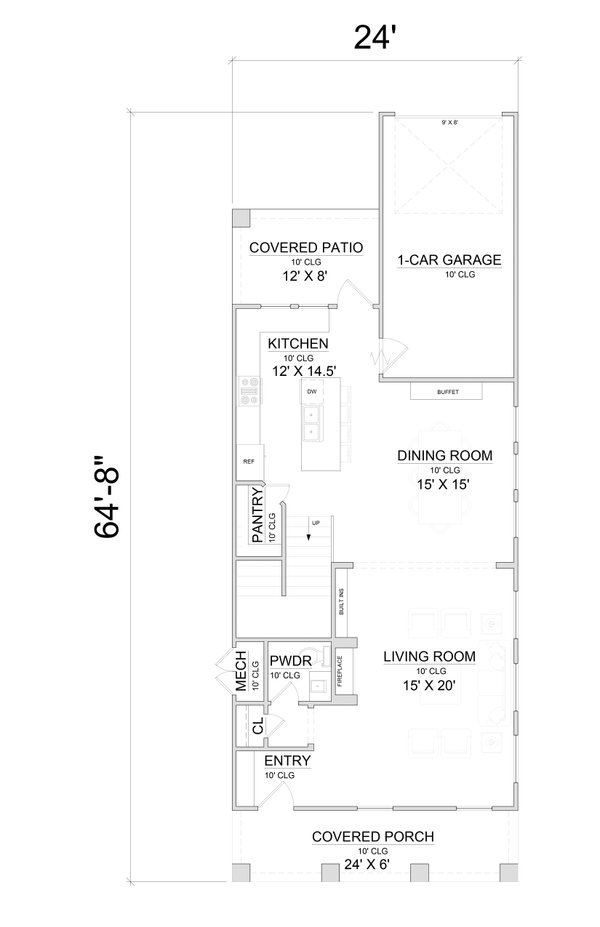

Floor Plan - Main Floor

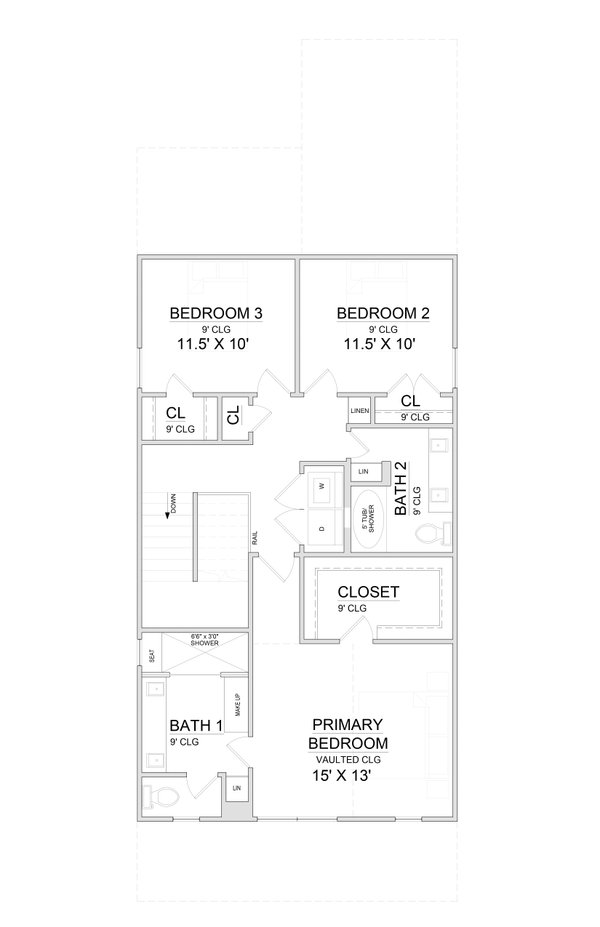

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 64' 8"
Height : 31' 4"
Width : 24'
Area
Garage : 258 sq/ft
Main Floor : 937 sq/ft
Patios : 99 sq/ft
Porch : 144 sq/ft
Upper Floor : 935 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 10'
Upper Ceiling Ft : 9'
Roof
Primary Pitch : 10:12
Roof Framing : STICK/TRUSS
Secondary Pitch : 5:12
Exterior Wall Framing
Exterior Wall Finish : BOARD & BATTEN SIDING
Framing : STICK/TRUSS
Additional Room Features
Great Room Living Room
Storage Area
Upstairs Laundry
Garage Features
Rear Entry Garage
Lot Characteristics
Suited For Narrow Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
More
Economical To Build
What's Included In This Plan Set
Plans are drawn to scale and include:
» See important
information before purchasing.
- Exterior Views – Four exterior views of the residence with other miscellaneous details and/or renderings of the house.
- Foundation Plan – Includes dimensioned foundation plan with footing details.
- Floor Plan – Shows a window and door schedule and placements, dimensions of interior and exterior spaces.
- Roof Plan – Birds eye view showing ridges, valleys and roof pitch.
- Electrical Plan – Displays all lighting fixtures, outlets and other necessary electrical items.
- Wall Section(s) – Shows the elements needed to construct the walls, and an interior finish schedule.
- Building Section(s) – Section through home displaying necessary information about framing and other miscellaneous data. Construction Notes and Details - Special notes pertaining to the build of the residence, assembly information, any specific code notes.
Questions? Call 1-888-447-1946
Plan Set
PDF Set:
$1295.00
$1295.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy and PDF Set:
$1545.00
$1545.00
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
PDF Unlimited Build:
$1895.00
$1895.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD and PDF Set Unlimited Build:
$2295.00
$2295.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Foundation
Slab:
$0.00
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Crawlspace:
$300.00
$300.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Framing
Wood 2x4:
$0.00
$0.00
Wood 2x4 Exterior Walls
Wood 2x6:
$295.00
$295.00
Wood 2x6 Exterior Walls
Additional Options
Right-Reading Reverse:
$225.00
$225.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Use License:
$350.00
$350.00
Allows you to build one more home for each additional license purchased.
Audio Video Design:
$165.00
$165.00
Receive an overlay sheet with suggested placement of audio and video components.
Comprehensive Material List:
$295.00
$295.00
A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.
Construction Guide:
$39.00
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$165.00
$165.00
Receive an overlay sheet with suggested placement of lighting fixtures.
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
