PLAN 46-556
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 38'
Height : 29'
Width : 48'
Area

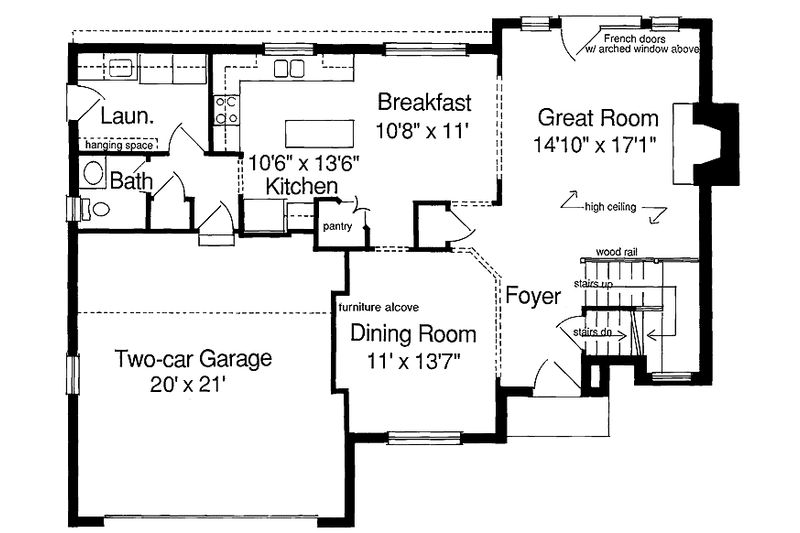

First Floor: 1036 sq/ft height 8'

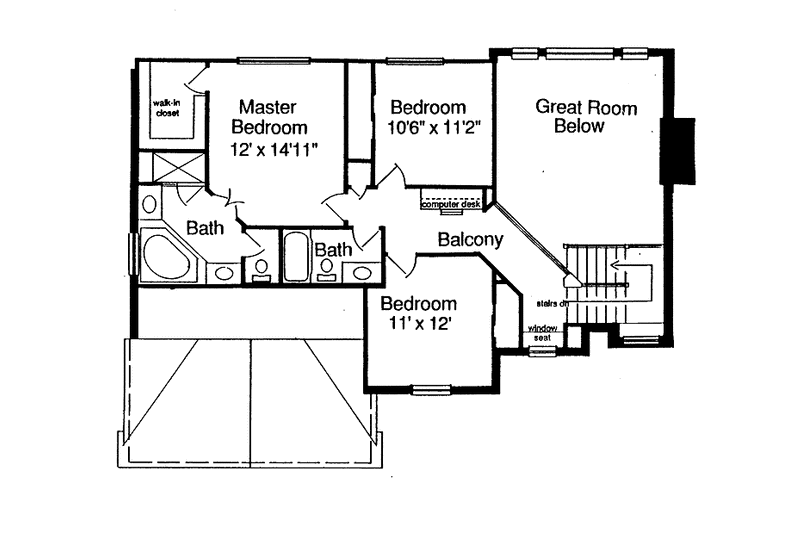

Second Floor: 861 sq/ft
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Additional Room Features
Great Room Living Room
Rooms
3rd BR Closet:
18 sq/ft width 8' 10" x depth 2' 1"
Bedroom 2:
132 sq/ft width 11' x depth 12'
Bedroom 2 Closet:
12 sq/ft width 6' x depth 2' 1"
Bedroom 3:
117 sq/ft width 10' 6" x depth 11' 2"
Bedroom 3 Closet:
12 sq/ft width 6' x depth 2' 1"
Breakfast Room:
117 sq/ft width 10' 8" x depth 11'
Dining Room:
162 sq/ft width 12' x depth 13' 7"
Foyer:
48 sq/ft width 6' x depth 8'
Garage:
425 sq/ft width 20' x depth 21' 3"
Gathering Room:
253 sq/ft width 14' 10" x depth 17' 1"
Hall:
width 4' x depth 0"
Hall Bathroom:
44 sq/ft width 8' 10" x depth 5'
Kitchen:
136 sq/ft width 10' 6" x depth 13'
Master Bathroom:
144 sq/ft width 12' x depth 12'
Master Bedroom:
179 sq/ft width 12' x depth 14' 11"
Master Closet:
47 sq/ft width 5' 11" x depth 8'
Porch - Front:
22 sq/ft width 7' 6" x depth 3'
Powder Room:
27 sq/ft width 5' x depth 5' 6"
What's Included In This Plan Set

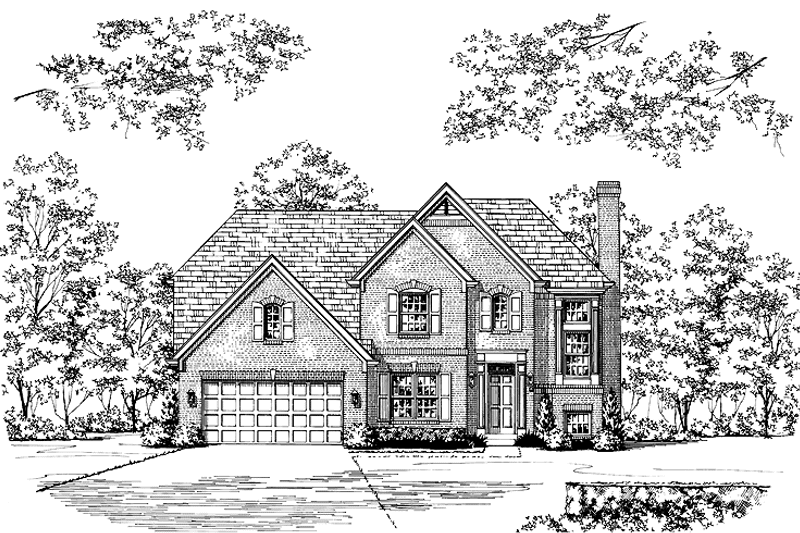

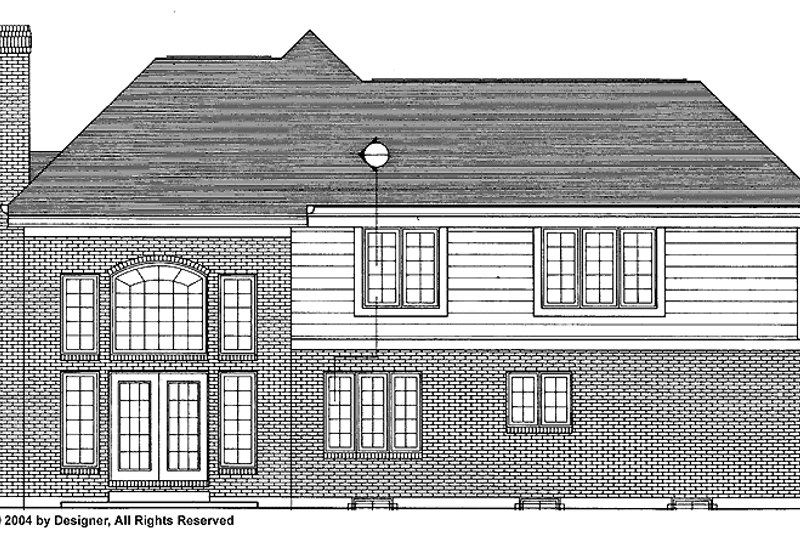

- Elevations: Drawings of front, rear, right side and left side elevations drawn at 1/4" scale.
- Foundation Plan: 1/4" scale foundation plan includes dimensions, actual steel beam and joist sizes. Most plans are designed for basement with a 7'10" pour and level lot (8" poured concrete wall).
- Floor Plans: 1/4" scale plan that includes dimensions; actual header, flush beam, and joist sizes. Window rough opening sizes and locations. High quality windows and doors are specified on floor plan drawings. Location of bearing walls, direction of truss and rafter framing noted with size and spacing. Electrical layouts are shown.
- Roof Plan: 1/8" scale plan indicates roof pitches, overhangs, saddles and chimneys
- Foundation reinforcing detail shows size of footing and foundation wall, size and spacing of rebar.
- Beam and column detail shows connection of steel columns that are used to support steel beams at basement and footing detail to be installed below slab to support column load. Stair Detail to show builder how to frame with information such as tread and riser heights.
- Cabinet layouts, included in drawings, can be used to show sizes of cabinets at kitchen to be installed. This detail can also be helpful should you want custom cabinets, it can be used by your cabinet people to show you what will fit in the space and your options available.
- Truss profiles to show builder any irregular profiles, pitches, or heelcuts that varies from the typical framing.
- Fireplace elevations that can be used as is to build your fireplace or to give you or your decorator a starting point.
- Fireplace detail shows how the fireplace is to be built.
- Wall section shows typical framing detail of house.
Plan Set
$950.00
$1000.00
$1030.00
$1475.00
$720.00
Foundation
$0.00
Framing
$0.00
Additional Options
$50.00
$100.00
$39.00
$100.00
$85.00
$35.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
