Plan Description
This traditional design floor plan is 1906 sq ft and has 5 bedrooms and 2 bathrooms.
Floor Plans

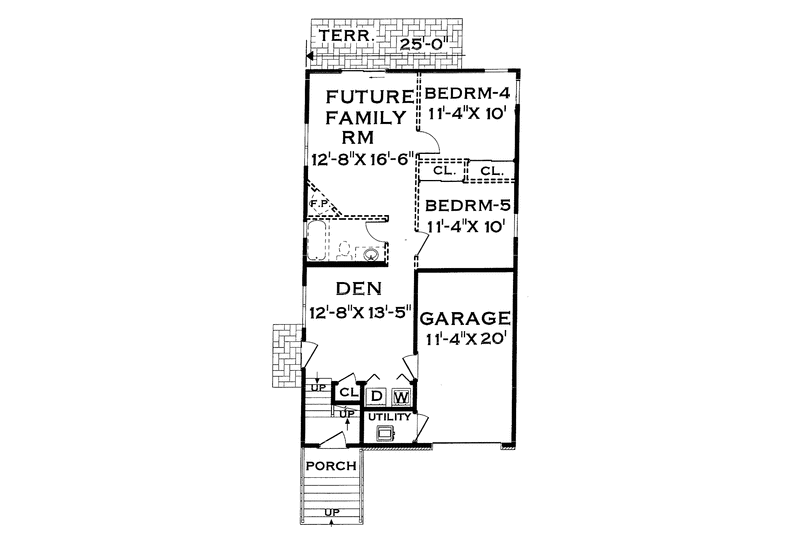

Floor Plan - Lower Floor

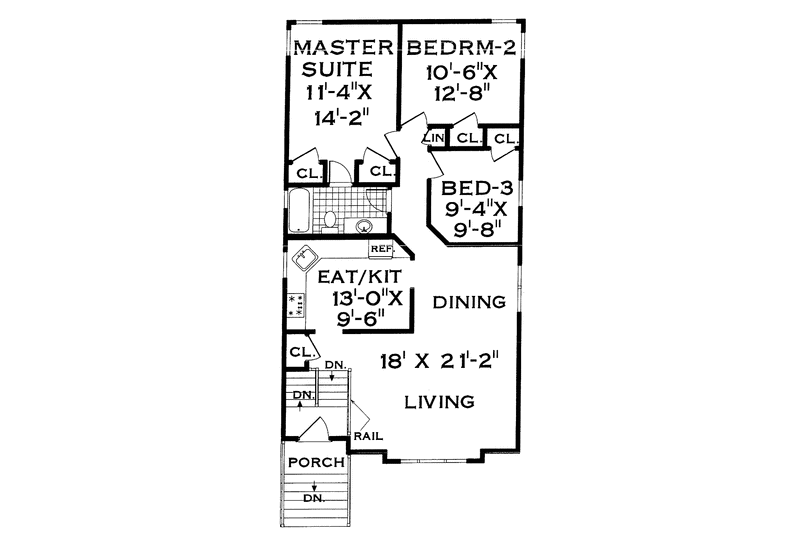

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 44'
Height : 26'
Width : 25'
Area
First Floor: 1076 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Roof Framing : Conventional
Roof Type : Asphalt
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Wood - 2x6 Wood - 2x4
Bedroom Features
Formal Dining Room
Main Floor Master Bedroom
Additional Room Features
Den Office Study Computer
Great Room Living Room
Vaulted / Cathedral Ceilings
Outdoor Spaces
Courtyard
What's Included In This Plan Set
Content may vary depending on the size and complexity of the home and the style of the individual designer:
» See important
information before purchasing.

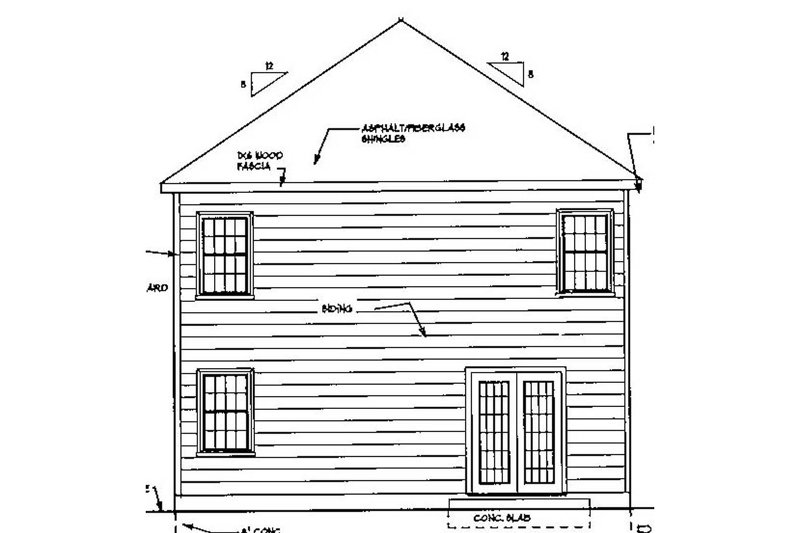

- Exterior Elevations: show the front, rear and sides of the house, including exterior materials, details and measurements.
- Foundation Plans: include drawings for a standard, daylight or partial basement, crawlspace, pole, pier, or slab foundation. All necessary notations and dimensions are included.
- Interior Elevations: show the specific details of cabinets (kitchen, bathroom, and utility room), fireplaces, built-in units, and other special interior features, depending on the nature and complexity of the item.
- Roof Details: show slope, pitch and location of dormers, gables and other roof elements, including clerestory windows and skylights. These details may be shown on the elevation sheet or on a separate diagram.
- Schematic Electrical Layouts: show the suggested locations for switches, fixtures and outlets. These details may be shown on the floor plan or on a separate diagram.
- Detailed Floor Plans: show the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc., of each level of the house. Cross Sections: show details of the house as though it were cut in slices from the roof to the foundation. The cross sections specify the home's construction, insulation, flooring and roofing details.
- General Specifications: provide general instructions and information regarding structure, excavating and grading, masonry and concrete work, carpentry and wood, thermal and moisture protection, and specifications about drywall, tile, flooring, glazing, caulking and sealants.
Questions? Call 1-888-447-1946
Plan Set
5 Copy Set:
$556.80
$556.80
5 printed plan sets mailed to you.
8 Copy Set:
$605.60
$605.60
8 printed plan sets mailed to you.
PDF Set:
$696.00
$696.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set:
$696.00
$696.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
Single Set:
$516.80
$516.80
One printed set for bidding purposes only. Not a legal building set for construction.
Foundation
Crawlspace:
$0.00
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Daylight Basement:
$0.00
$0.00
Ideal for sloping lot, lower level of home partially underground.
Slab:
$0.00
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Framing
Wood 2x4:
$0.00
$0.00
Wood 2x4 Exterior Walls
Wood 2x6:
$0.00
$0.00
Wood 2x6 Exterior Walls
Additional Options
Additional Construction Sets:
$48.00
$48.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design:
$132.00
$132.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$31.20
$31.20
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$132.00
$132.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Material List:
$64.00
$64.00
A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
