PLAN 1070-109

Home > Style > Craftsman

Key Specs

2260
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

This craftsman design floor plan is 2260 sq ft and has 3 bedrooms and 2 bathrooms.

Floor Plans

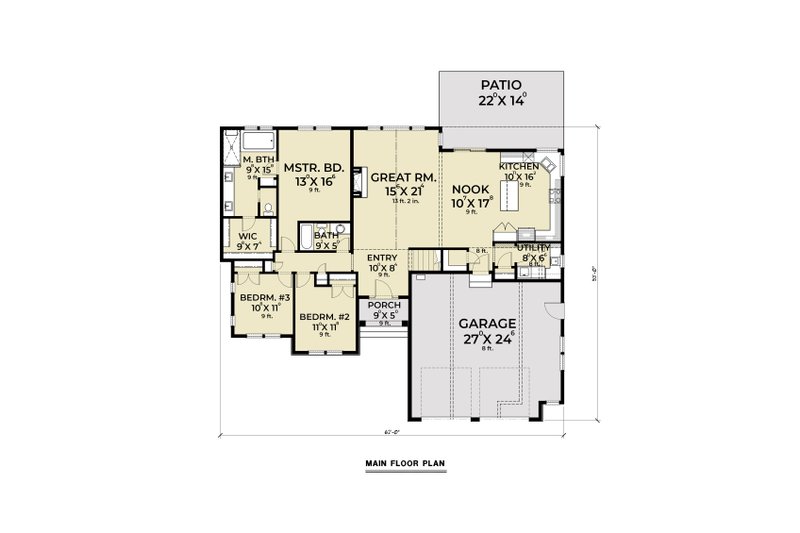

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Floor Plan - Other Floor

Reverse

Full Specs & Features

Dimension

Depth : 53'

Height : 21' 5"

Width : 62'

Area

Bonus : 347 sq/ft

Garage : 709 sq/ft

Main Floor : 1913 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Bonus Ceiling : 8'

Main Ceiling : 9'

Roof

Primary Pitch : 10/12

Roof Framing : Truss

Secondary Pitch : 8/12

Bedroom Features

Main Floor Bedrooms

Main Floor Master Bedroom

Walk In Closet

Kitchen Features

Breakfast Nook

Eating Bar

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Great Room Living Room

Main Floor Laundry

Garage Features

Front Entry Garage

Outdoor Spaces

Covered Front Porch

What's Included In This Plan Set

See a sample plan set

Please note: This designer includes the bonus square feet to the total heated living square feet.
