Plan Description
Multiple gables, arched windows and a long front porch load this plan with visual interest. The first level is completely devoted to living space with great room that has a cathedral ceiling and a beautiful fireplace flanked by built-in cabinetry. Upstairs, the master, two additional bedrooms and two baths await the residents.
Floor Plans

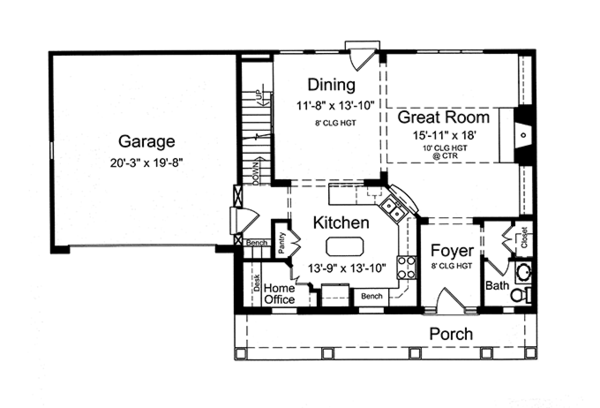

Floor Plan - Main Floor

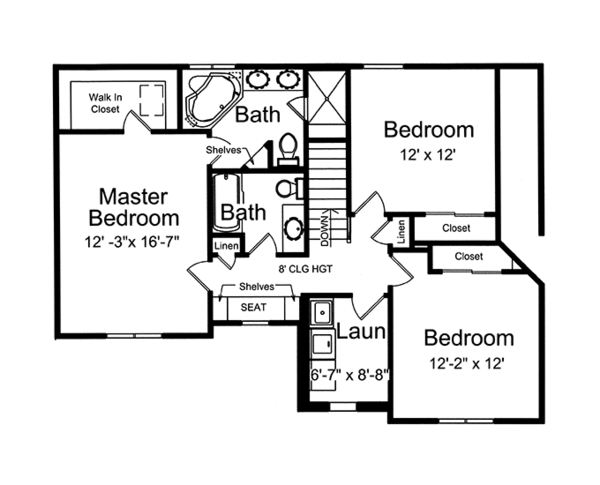

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 33' 9"
Height : 26'
Width : 53'
Area
Basement Unfinished: 944 sq/ft
First Floor: 944 sq/ft height 8'
Garage: 414 sq/ft
Second Floor: 978 sq/ft height 8'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Roof Type : Composition
Secondary Pitch : 10:12
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : Wood - 2x4
Bedroom Features
Fireplace
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Kitchen Island
Additional Room Features
Den Office Study Computer
Great Room Living Room
Upstairs Laundry
Vaulted / Cathedral Ceilings
Garage Features
Front Entry Garage
Outdoor Spaces
Covered Front Porch
Rooms
Bedroom 2:
width 12' 2" x depth 12'
Bedroom 3:
width 12' x depth 12'
Covered Front Porch:
173 sq/ft
Dining Area:
width 11' 8" x depth 13' 10"
Garage:
414 sq/ft width 20' 3" x depth 19' 8"
Great Room:
width 15' 11" x depth 18'
Kitchen:
width 13' 9" x depth 13' 10"
Laundry Room:
width 6' 7" x depth 8' 8"
Master Bedroom:
width 12' 3" x depth 16' 7"
What's Included In This Plan Set
Special Offer: When you buy a 5 copy or 8 copy printed set, a PDF set will be emailed to you.
» See important
information before purchasing.
- Elevations: Drawings of front, rear, right side and left side elevations drawn at 1/4" scale.
- Foundation Plan: 1/4" scale foundation plan includes dimensions, actual steel beam and joist sizes. Most plans are designed for basement with a 7'10" pour and level lot (8" poured concrete wall).
- Floor Plans: 1/4" scale plan that includes dimensions; actual header, flush beam, and joist sizes. Window rough opening sizes and locations. High quality windows and doors are specified on floor plan drawings. Location of bearing walls, direction of truss and rafter framing noted with size and spacing. Electrical layouts are shown.
- Roof Plan: 1/8" scale plan indicates roof pitches, overhangs, saddles and chimneys
- Foundation reinforcing detail shows size of footing and foundation wall, size and spacing of rebar.
- Beam and column detail shows connection of steel columns that are used to support steel beams at basement and footing detail to be installed below slab to support column load. Stair Detail to show builder how to frame with information such as tread and riser heights.
- Cabinet layouts, included in drawings, can be used to show sizes of cabinets at kitchen to be installed. This detail can also be helpful should you want custom cabinets, it can be used by your cabinet people to show you what will fit in the space and your options available.
- Truss profiles to show builder any irregular profiles, pitches, or heelcuts that varies from the typical framing.
- Fireplace elevations that can be used as is to build your fireplace or to give you or your decorator a starting point.
- Fireplace detail shows how the fireplace is to be built.
- Wall section shows typical framing detail of house.
