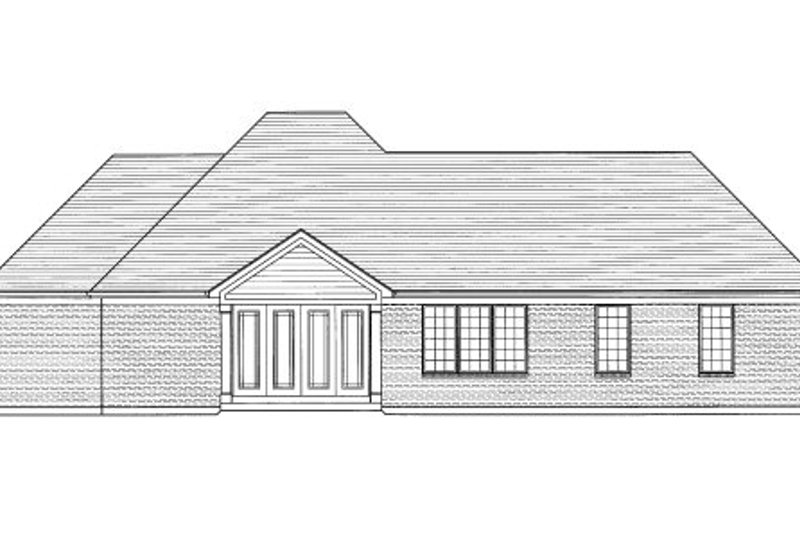

Home Plan - Traditional Exterior - Rear Elevation Plan #46-421

Home Plan - Traditional Floor Plan - Main Floor Plan #46-421

Home Plan - Traditional Floor Plan - Other Floor Plan #46-421

Jump to:
All (4)
Exterior (2)
Floor plans (2)

Get Personalized Help

Home > Style > Traditional

Key Specs

1940
sq ft

3
Beds

2
Baths

1
Floors

3
Garages

Select Plan Set Options

What's included?

Additional options

Right-Reading Reverse

$160.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$40.00/each

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$132.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$31.20

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$132.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Material List

$140.00

A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.

Mirror Reversed Sets

$40.00

Printed sets showing plan in reverse, text and dimensions will be backwards.

Subtotal

$1000.00 NOW $800.00

You save $200.00 (20% savings)

Sale ends soon!

Also order by phone: 1-888-447-1946

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-888-447-1946

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

are Only $4.99
with Code CTB2025 (limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost To Build Report

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 46-421

Home > Style > Traditional

Key Specs

1940
sq ft

3
Beds

2
Baths

1
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

This traditional design floor plan is 1940 sq ft and has 3 bedrooms and 2 bathrooms.

Floor Plans

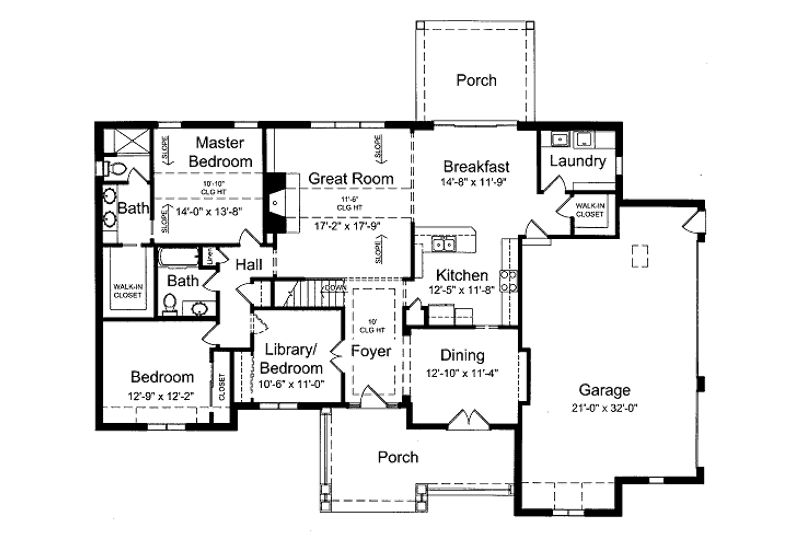

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

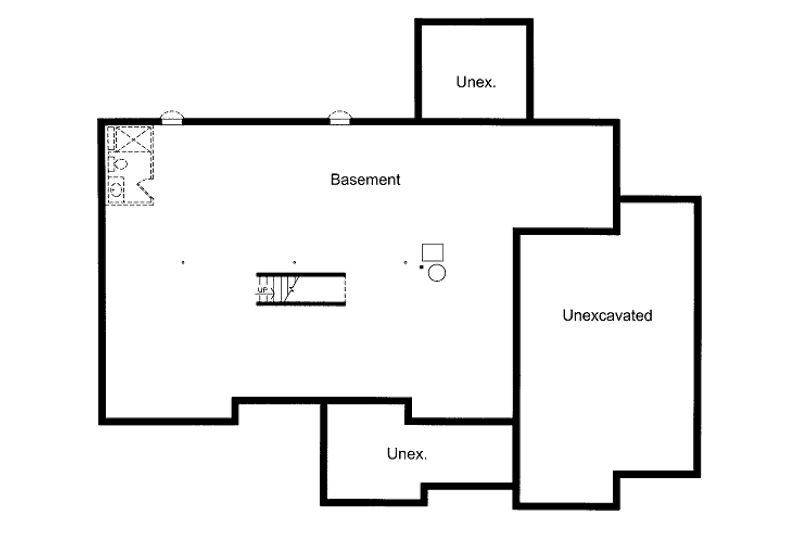

Floor Plan - Other Floor

Reverse

Full Specs & Features

Dimension

Depth : 58' 5"

Height : 26'

Width : 71' 11"

Area

First Floor: 1940 sq/ft height 9'

Garage: 674 sq/ft height 10' 5"

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'

Roof

Primary Pitch : 8:12

Roof Framing : Truss

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Brick/Stone

Framing : 2"x4"

Bedroom Features

Main Floor Bedrooms

Main Floor Master Bedroom

Walk In Closet

Kitchen Features

Breakfast Nook

Eating Bar

Walk In Pantry Cabinet Pantry

Additional Room Features

Great Room Living Room

Storage Area

Unfinished Future Space

Garage Features

Oversized Garage

Side Entry Garage

Lot Characteristics

Suited For Corner Lot

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

Rooms

Bedroom 2:

155 sq/ft width 12' 9" x depth 12' 2"

Bedroom 2 Closet:

18 sq/ft width 2' 1" x depth 8' 8"

Bedroom 3:

115 sq/ft width 10' 6" x depth 11'

Bedroom 3 Closet:

12 sq/ft width 2' 1" x depth 6' 2"

Breakfast Room:

172 sq/ft width 14' 8" x depth 11' 9"

Covered Porch:

144 sq/ft width 12' x depth 12'

Dining Room:

145 sq/ft width 12' 10" x depth 11' 4"

Foyer:

99 sq/ft width 6' 11" x depth 14' 5"

Garage:

672 sq/ft width 21' x depth 32'

Hall Bathroom:

57 sq/ft width 7' x depth 8' 3"

Hall Closet:

6 sq/ft width 2' 1" x depth 3' 2"

Kitchen:

144 sq/ft width 12' 5" x depth 11' 8"

Laundry Room:

64 sq/ft width 8' 11" x depth 7' 3"

Linen Closet:

3 sq/ft width 1' 8" x depth 2' 3"

Master Bathroom:

78 sq/ft width 5' 9" x depth 13' 8"

Master Bedroom:

177 sq/ft width 13' x depth 13' 8"

Master Closet:

52 sq/ft width 6' 2" x depth 8' 6"

Pantry:

4 sq/ft width 2' 3" x depth 2'

Porch - Front:

282 sq/ft width 22' 11" x depth 12' 4"

Porch - Rear:

144 sq/ft width 12' x depth 12'

Walk-In Closet:

25 sq/ft width 5' 1" x depth 5'

What's Included In This Plan Set

See a sample plan set

Special Offer: When you buy a 5 copy or 8 copy printed set, a PDF set will be emailed to you.

Elevations: Drawings of front, rear, right side and left side elevations drawn at 1/4" scale.
Foundation Plan: 1/4" scale foundation plan includes dimensions, actual steel beam and joist sizes. Most plans are designed for basement with a 7'10" pour and level lot (8" poured concrete wall).
Floor Plans: 1/4" scale plan that includes dimensions; actual header, flush beam, and joist sizes. Window rough opening sizes and locations. High quality windows and doors are specified on floor plan drawings. Location of bearing walls, direction of truss and rafter framing noted with size and spacing. Electrical layouts are shown.
Roof Plan: 1/8" scale plan indicates roof pitches, overhangs, saddles and chimneys

Miscellaneous Details:

Foundation reinforcing detail shows size of footing and foundation wall, size and spacing of rebar.
Beam and column detail shows connection of steel columns that are used to support steel beams at basement and footing detail to be installed below slab to support column load. Stair Detail to show builder how to frame with information such as tread and riser heights.
Cabinet layouts, included in drawings, can be used to show sizes of cabinets at kitchen to be installed. This detail can also be helpful should you want custom cabinets, it can be used by your cabinet people to show you what will fit in the space and your options available.
Truss profiles to show builder any irregular profiles, pitches, or heelcuts that varies from the typical framing.
Fireplace elevations that can be used as is to build your fireplace or to give you or your decorator a starting point.
Fireplace detail shows how the fireplace is to be built.
Wall section shows typical framing detail of house.

Questions? Call 1-888-447-1946

Plan Set

5 Copy and PDF Set:
$800.00

5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

PDF Set:
$800.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Eight Copy and PDF Set:
$824.00

8 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Set:
$1220.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Study Set:
$616.00

One electronic set for bidding purposes only. Not a legal building set for construction.

Foundation

Daylight Basement:
$0.00

Ideal for sloping lot, lower level of home partially underground.

Framing

Wood 2x4:
$0.00

Wood 2x4 Exterior Walls

Additional Options

Right-Reading Reverse:
$160.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets:
$40.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design:
$132.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide:
$31.20

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$132.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Material List:
$140.00

A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.

Mirror Reversed Sets:
$40.00

A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
