PLAN 25-2284
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 40'
Height : 29'
Width : 33'
Area
Basement : 1042 sq/ft
Main Floor : 1042 sq/ft
Upper Floor : 902 sq/ft
Exterior Wall Framing
Framing : 2"x6"
Bedroom Features
Main Floor Master Bedroom
Kitchen Features
Eating Bar
Additional Room Features
Loft
Lot Characteristics
Suited For Narrow Lot
Suited For View Lot
Outdoor Spaces
Balcony
More
Suited For Vacation Home
What's Included In This Plan Set
-
Exterior elevations:
- Foundations plan: Different isometric views with dimensions as well as relevant information to build the foundations.

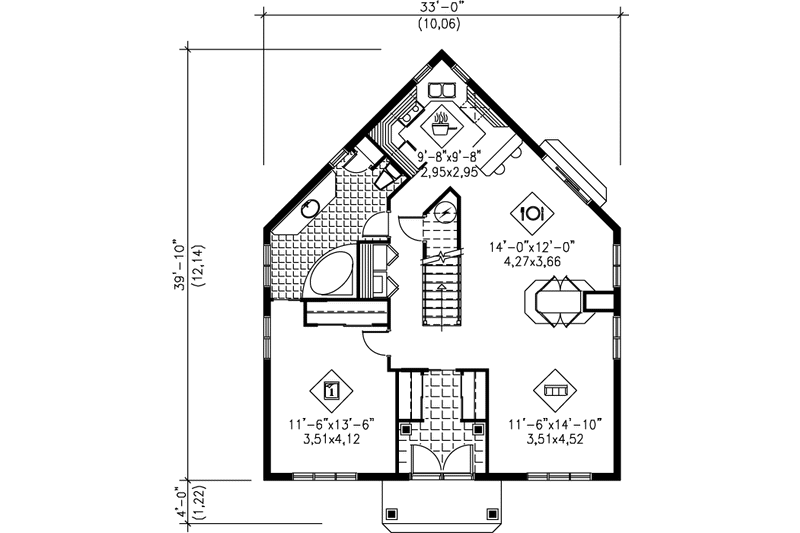

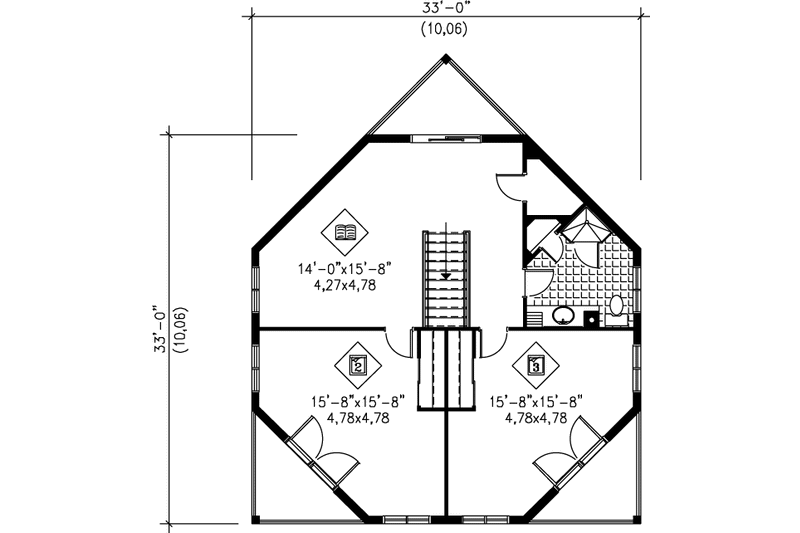

- Floor plans: A drawing of each floor of the house showing the size of the rooms and the location of windows and staircases.
- Cross-section View: Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details.
-
Four detailed exterior elevations showing the final appearance of each side of the house.
Plan Set
$970.00
$1015.00
$1110.00
$1990.00
Foundation
$0.00
Additional Options
$150.00
$50.00
$165.00
$295.00
$39.00
$165.00
$150.00
$250.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
