PLAN 437-22
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 50'
Height : 23'
Width : 64' 4"
Area
First Floor: 1945 sq/ft
Roof
Primary Pitch : 10:12
Roof Framing : Conventional Frame
Roof Type : Asphalt Shingle
Exterior Wall Framing
Exterior Wall Finish : brick, stone
Framing : 2"x4"
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Storage Area
Sunroom
Unfinished Future Space
Garage Features
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Suited For Narrow Lot
Outdoor Spaces
Covered Front Porch
Screened Porch
Rooms
Bathroom 2:
41 sq/ft width 8' 4" x depth 5'
Bedroom 2:
150 sq/ft width 12' 2" x depth 12' 4"
Bedroom 3:
145 sq/ft width 11' 10" x depth 12' 4"
Breakfast:
106 sq/ft width 11' 10" x depth 9'
Deck:
120 sq/ft width 12' x depth 10'
Dining Room:
140 sq/ft width 14' x depth 10'
Foyer:
69 sq/ft width 6' 6" x depth 10' 8"
Garage:
484 sq/ft width 22' x depth 22'
Great Room:
265 sq/ft width 15' x depth 17' 8"
Kitchen:
127 sq/ft width 11' 10" x depth 10' 9"
Laundry Room:
26 sq/ft width 6' 8" x depth 4'
Master Bathroom:
116 sq/ft width 7' 4" x depth 15' 10"
Master Bedroom:
210 sq/ft width 14' x depth 15'
Master Closet:
69 sq/ft width 9' 4" x depth 7' 6"
Sun Room:
114 sq/ft width 11' 10" x depth 9' 8"
What's Included In This Plan Set
Please note: This designer has the following the zip code restrictions: 30041, 30501, 30504, 30506, 30542, and 30566.
-

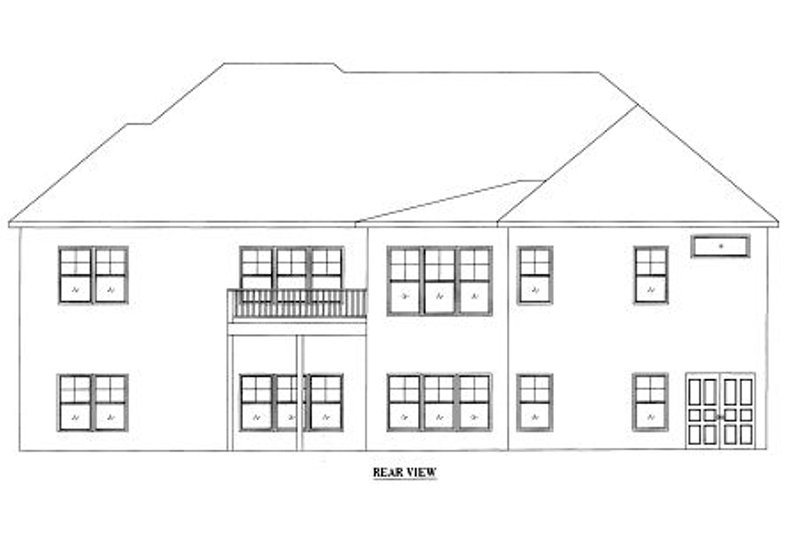

Exterior Elevations
Plans include detailed front, sides, and rear exterior drawings. These drawings give notes on all exterior materials and finishes (siding, brick, stone, etc). -

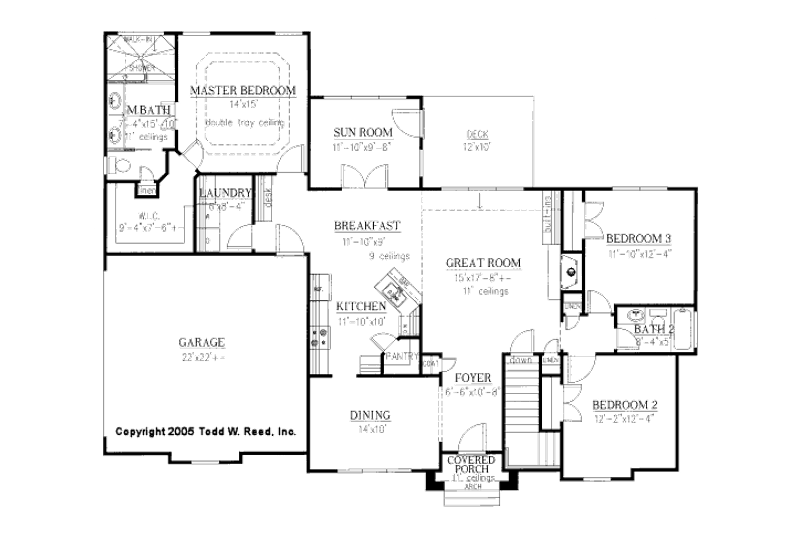

Floor Plan(s)
Dimensioned exterior and interior wall framing along with labeled windows/doors sizes in each room of home. Wall heights are indicated for each level. Room sizes are indicated and any beams, posts and structural bearing points are called out. -
Foundation Plan and Footings
The foundation page shows concrete walls, footings, pads, posts, beams, bearing walls, and any retaining wall info (schematic only). Typical wall section details are shown for various footings. On plans drawn as walk out basements, if you choose the optional Slab foundation, the slab foundation will not be reflected in the exterior elevations. -
Roof Plan
Roof plan showing all hips, ridges, and valleys along with slope directions are indicated. Structural members are sized and called out if applicable. -
Building Sections & Details
Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Some plans will have additional cross–section and details as needed for displaying any special framing details applicable to the design. -
Notes and Details Page(s)
The floorplans include an electrical legend, electrical fittings, lights, and outlets are shown. Plans meet the requirements of the ‘International Residential Code’. Compliance with further standards may need to be incorporated into your plan set, depending the requirements of your local/state building department — these typically are done locally.
Plan Set
$1000.00
$1200.00
Foundation
$0.00
Additional Options
$200.00
$165.00
$295.00
$39.00
$165.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
