PLAN 21-104
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Beautiful traditional duplex featuring open living area and spacious
bedrooms, Large pantry/storage, Patio, Large kitchen, and Easy to build.
Floor Plans

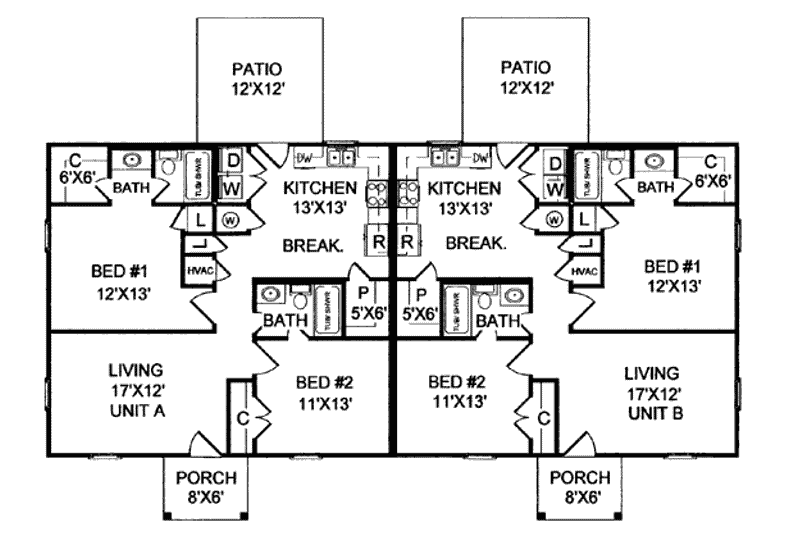

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 36'
Height : 19' 3"
Width : 66'
Area
First Floor: 990 sq/ft
First Floor: 990 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 8'
Roof
Primary Pitch : 8:12
Roof Framing : Conventional
Roof Type : Hip / Gable
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2"x4"
Bedroom Features
Split Bedrooms
Walk In Closet
Kitchen Features
Walk In Pantry Cabinet Pantry
Rooms
Bedroom 1:
156 sq/ft width 13' x depth 12'
Bedroom 1:
156 sq/ft width 13' x depth 12'
Bedroom 2:
143 sq/ft width 13' x depth 11'
Bedroom 2:
143 sq/ft width 13' x depth 11'
Kitchen:
169 sq/ft width 13' x depth 13'
Kitchen:
169 sq/ft width 13' x depth 13'
Living Room:
204 sq/ft width 17' x depth 12'
Living Room:
204 sq/ft width 17' x depth 12'
