PLAN 453-3
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description

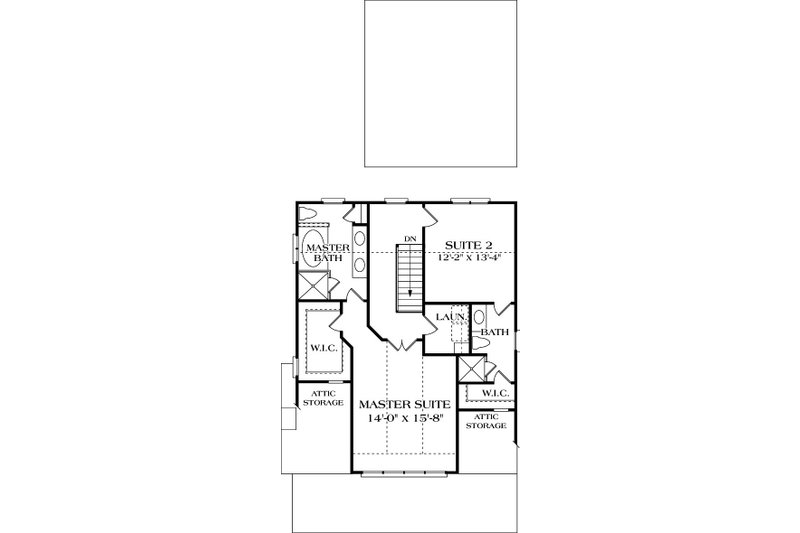

Floor Plans
Full Specs & Features
Dimension
Depth : 45'
Height : 36'
Width : 32'
Area
First Floor: 1060 sq/ft height 9'
Second Floor: 950 sq/ft
Ceiling
Main Ceiling : 9'
Upper Ceiling Ft : 9'
Roof
Primary Pitch : 8:12
Roof Framing : Combination Truss/Conventional
Roof Type : Shingle
Secondary Pitch : 3:12
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : 2"x4"
Bedroom Features
Guest Suite
Upstairs Bedrooms
Upstairs Master Bedrooms
Walk In Closet
Garage Features
Detached Garage
Lot Characteristics
Suited For Narrow Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
More
Economical To Build
Structural Information Provided
Foundation Drawing
Structural 1st Floor Framing
Structural 2nd Floor Framing
Rooms
3rd BR Closet:
18 sq/ft width 3' 4" x depth 5' 6"
Bathroom 2:
75 sq/ft width 7' 2" x depth 10' 6"
Bedroom 2 Closet:
22 sq/ft width 3' 2" x depth 7' 2"
Bedroom 3 Closet:
22 sq/ft width 3' 2" x depth 7' 2"
Hall Bathroom:
73 sq/ft width 9' x depth 8' 2"
Laundry Room:
35 sq/ft width 5' 6" x depth 6' 6"
Master Bathroom:
115 sq/ft width 9' x depth 12' 10"
Master Closet:
73 sq/ft width 7' x depth 10' 6"
Porch - Front:
236 sq/ft width 8' x depth 29' 6"
Porch - Rear:
72 sq/ft width 6' x depth 12'
What's Included In This Plan Set
- Dimensioned and detailed Foundation plan (type as listed on home plan description)
- Dimensioned and detailed floor plans
- Framing plans (framing may be shown on floor plans in some cases.)
- Complete front, side and rear elevations
- Roof plan
- Typical building sections (as deemed necessary for construction)
- Typical foundation details, wall sections, and cornice details necessary for construction
- Separate electrical plan (may be shown on floor plans in some cases)
Plan Set
$1250.00
$1250.00
$2500.00
Foundation
$0.00
Additional Options
$200.00
$50.00
$165.00
$295.00
$39.00
$165.00
$50.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
