PLAN 413-898
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 54'
Height : 28' 6"
Width : 46'
Area
First Floor: 1430 sq/ft height 10'
Garage: 444 sq/ft
Porch: 198 sq/ft
Second Floor: 591 sq/ft height 9'
Roof
Primary Pitch : 10:12
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x4
Bedroom Features
Fireplace
Walk In Closet
Kitchen Features
Kitchenette Wet Bar
Outdoor Spaces
Covered Front Porch
Rooms
Bedroom 2:
156 sq/ft width 13' x depth 12'
Bedroom 3:
156 sq/ft width 13' x depth 12'
Dining Room:
132 sq/ft width 12' x depth 11'
Kitchen:
144 sq/ft width 12' x depth 12'
Master Bedroom:
238 sq/ft width 14' x depth 17'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

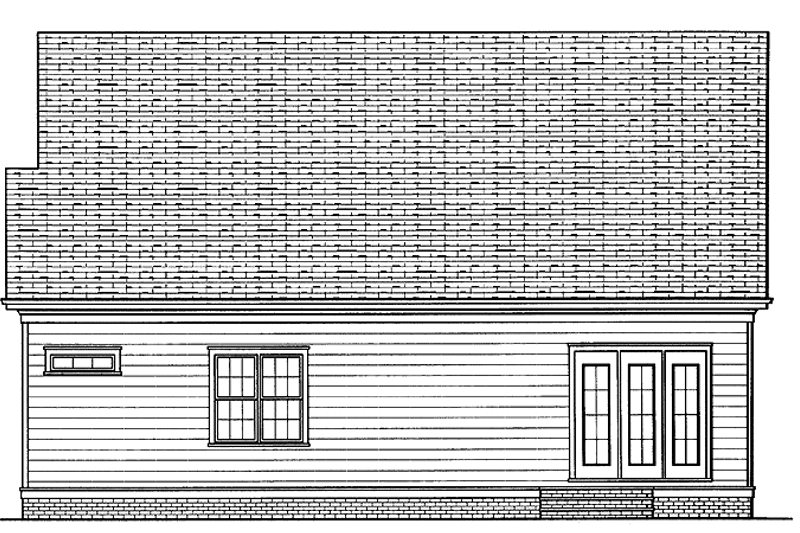

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

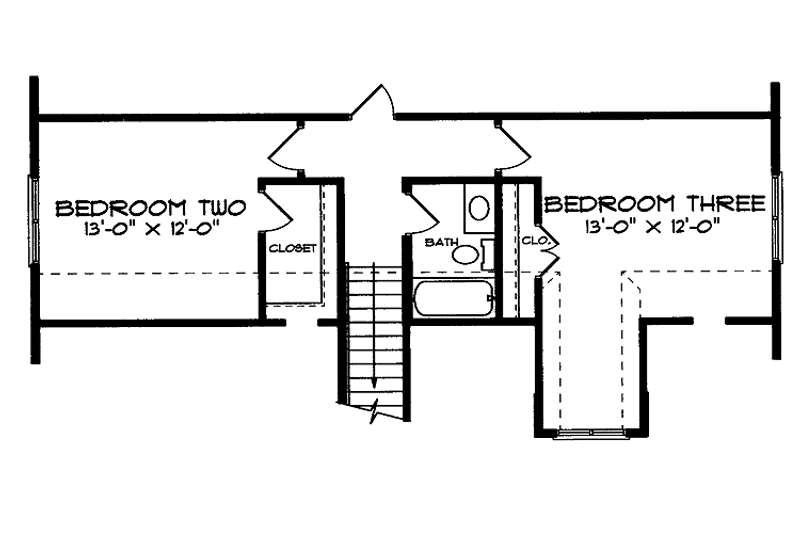

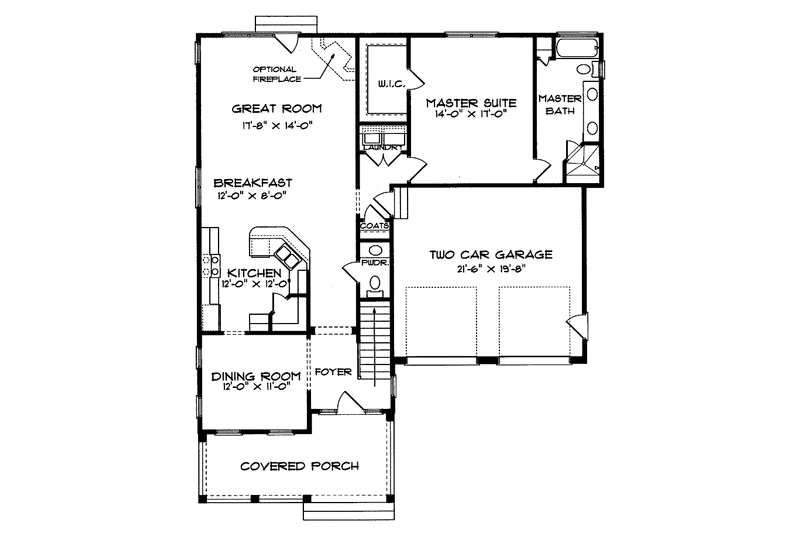

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$1900.00
$2400.00
$2400.00
Foundation
$0.00
$200.00
$400.00
$400.00
Framing
$0.00
Additional Options
$200.00
$100.00
$39.00
$100.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
