PLAN 472-151
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description

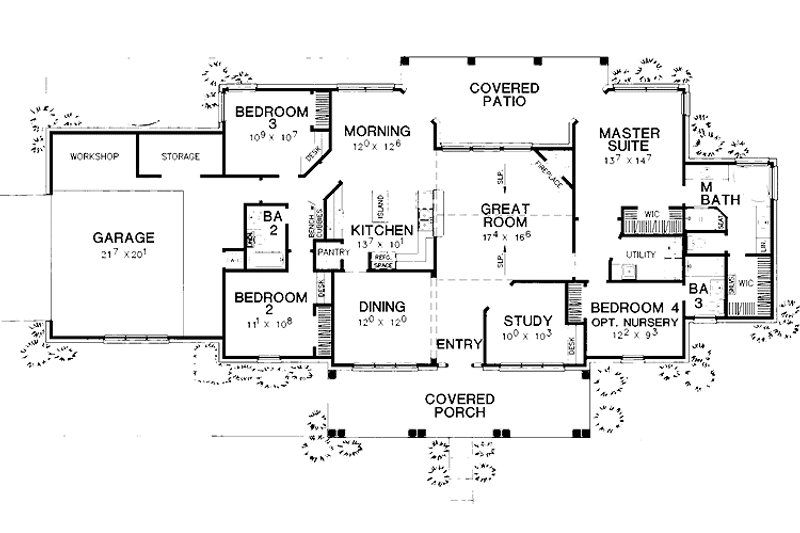

Floor Plans
Full Specs & Features
Dimension
Depth : 48' 4"
Width : 92' 11"
Area
First Floor: 2088 sq/ft height 10'
Roof
Primary Pitch : 9:12
Roof Framing : Combination Truss/Conventional
Exterior Wall Framing
Exterior Wall Finish : Stone
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Workshop
Outdoor Spaces
Courtyard
Covered Front Porch
Rooms
Bath #3:
width 5' x depth 7' 7"
garage:
width 21' 7" x depth 20' 1"
Great Room:
width 17' 4" x depth 16' 6"
Master bath:
width 10' 10" x depth 11' 4"
Master WIC #1:
width 8' x depth 3' 2"
Master WIC #2:
width 5' 5" x depth 7' 7"
Porch - Front:
297 sq/ft width 33' x depth 9'
Porch - Rear:
286 sq/ft width 26' x depth 11'
Storage:
60 sq/ft width 11' x depth 5' 6"
Utility:
width 8' 9" x depth 5' 6"
Work Shop:
60 sq/ft width 11' x depth 5' 6"
What's Included In This Plan Set
- ELECTRICAL SCHEMATIC

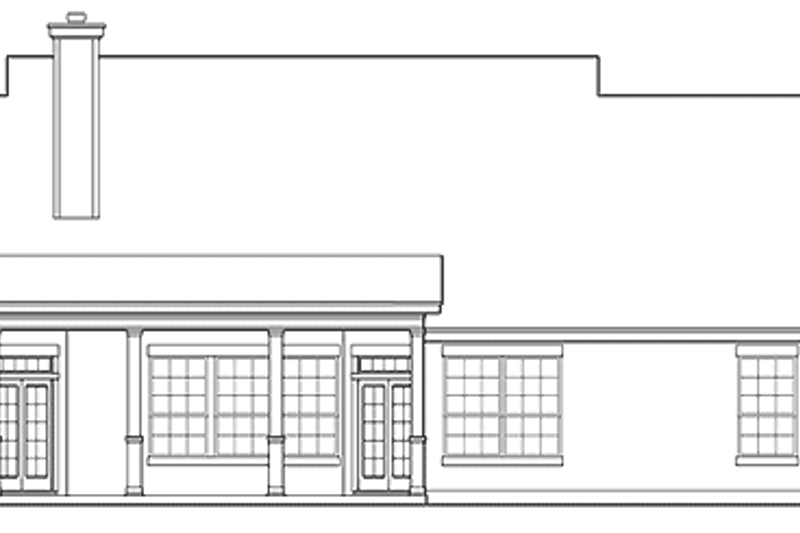

- EXTERIOR ELEVATIONS
- CABINET ELEVATIONS
- CEILING FRAMING
- ROOF FRAMING
- FOUNDATION OF CHOICE AS AVAILABLE (SLAB, CRAWLSPACE OR BASEMENT) APPROPRIATE FOUNDATION DETAIL SHEET
- BUILDING CROSS SECTION IF MULTISTORY
- ALSO 4 PAGE FHA DESCRIPTION OF MATERIALS FORM (NOT A MATERIALS LIST OF QUANTITIES)
- GENERIC WALL SECTIONS
-
Note: Reproducible and CAD files are not available if building in Texas, Oklahoma, New Mexico, Louisiana, Tennessee or Alabama. Architect must update and stamp all plans being sent to these states.
Plan Set
$1445.00
$2445.00
Foundation
$0.00
$125.00
$250.00
Framing
$0.00
Additional Options
$300.00
$165.00
$39.00
$165.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
