PLAN 929-9
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans

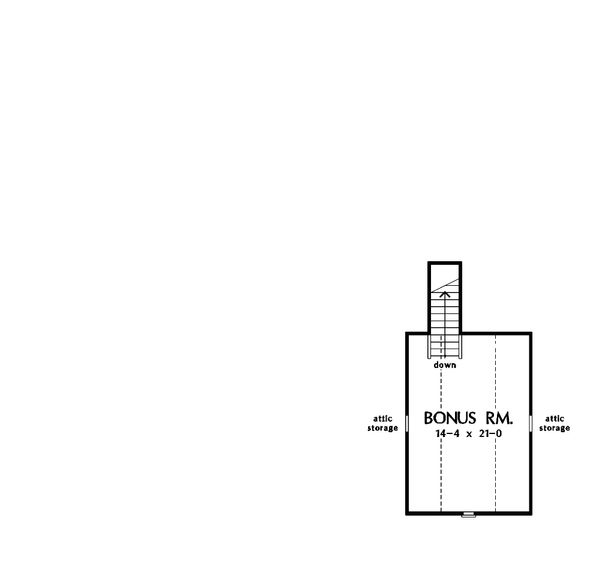

Floor Plan - Upper Floor

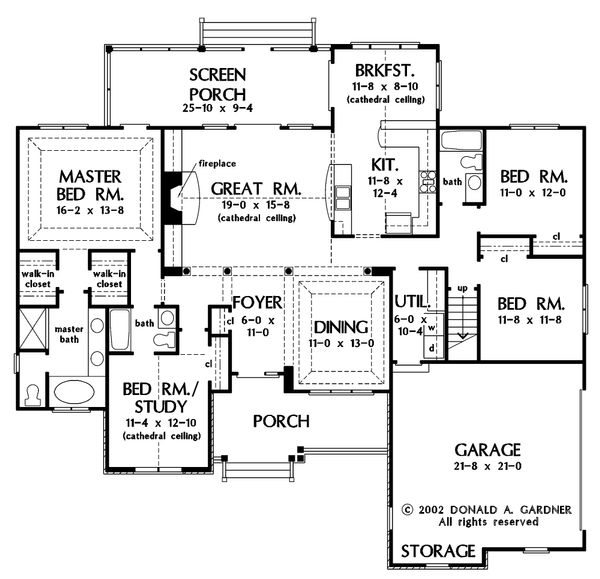

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 59' 6"
Height : 27'
Width : 64' 10"
Area
Bonus: 352 sq/ft
First Floor: 2097 sq/ft height 9'
Garage: 495 sq/ft
Ceiling
Main Ceiling : 9'
Roof
Primary Pitch : 10:12
Roof Framing : Stick
Secondary Pitch : 12:12
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2x4
Bedroom Features
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Additional Room Features
Den Office Study Computer
Great Room Living Room
Play Flex Room
Sunroom
Garage Features
Side Entry Garage
Outdoor Spaces
Covered Front Porch
Screened Porch
Rooms
3rd BR Closet:
11 sq/ft width 5' 8" x depth 2'
Bathroom 2:
38 sq/ft width 7' 8" x depth 5'
Bathroom 3:
41 sq/ft width 5' x depth 8' 4"
Bedroom 2 Closet:
12 sq/ft width 2' x depth 6'
Bedroom 3:
136 sq/ft width 11' 8" x depth 11' 8"
Bedroom 3 Closet:
12 sq/ft width 2' x depth 6'
Bedroom 4:
140 sq/ft width 11' 8" x depth 12'
Bedroom 4 Closet:
11 sq/ft width 5' 8" x depth 2'
Bonus Room - Finished:
300 sq/ft width 14' 4" x depth 21'
Breakfast Room:
103 sq/ft width 11' 8" x depth 8' 10"
Dining Room:
143 sq/ft width 11' x depth 13'
Foyer:
66 sq/ft width 6' x depth 11'
Garage:
455 sq/ft width 21' 8" x depth 21'
Gathering Room:
297 sq/ft width 19' x depth 15' 8"
Hall Closet:
6 sq/ft width 2' x depth 3'
Kitchen:
143 sq/ft width 11' 8" x depth 12' 4"
Master Bathroom:
111 sq/ft width 9' 10" x depth 11' 4"
Master Bedroom:
220 sq/ft width 16' 2" x depth 13' 8"
Master Closet:
25 sq/ft width 4' 2" x depth 6'
Porch - Front:
140 sq/ft width 20' x depth 7'
Study:
145 sq/ft width 11' 4" x depth 12' 10"
Utility Room:
61 sq/ft width 6' x depth 10' 4"
What's Included In This Plan Set
Purchasing a CAD set gives you an unlimited build license. All other plan sets, excluding the Single Set for bidding purposes, allow you to build the home one time.
- Cover Sheet - A rendering of the front exterior of the house.
- Foundation Plan - This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.
- Detailed Floor Plans - These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.
- Interior Elevations - The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.
- Roof Plan - The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.
- Door and window schedules - Sizes, quantities and descriptions of all doors and windows shown on the plan.
- Exterior Elevations - Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.
- Cross-Section / Wall Section Details - Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.
- Structural Plan - Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.
- Each plan is designed to be consistent with CABO One and Two Family Dwelling Code or the International Residential Code in effect at the time the plan was created. Modifications may be necessary to meet applicable building codes, ordinances, local climatic, and geographical design criteria. Consult a builder, architect or other construction professional as necessary. Manufacturer instructions should be followed for all materials, appliances, and systems. Heating/air conditioning layouts, plumbing pipe layouts, and electrical wiring layouts are not included. Consult a local mechanical contractor for systems suitable for local climate conditions.
Plan Set
$1575.00
$2750.00
$1375.00
Foundation
$0.00
$410.00
$410.00
Framing
$0.00
$410.00
Additional Options
$250.00
$100.00
$39.00
$325.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
