PLAN 1101-14
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 36'
Height : 23' 8"
Width : 44' 8"
Area
Main Floor : 1014 sq/ft
Porch : 457 sq/ft
Upper Floor : 1113 sq/ft
Ceiling
Ceiling Details : Living 2 storey ceiling
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Roof
Primary Pitch : 8/12
Roof Framing : Trusses & Rafters
Roof Load : n/a
Roof Type : Metal - Standing Seam
Secondary Pitch : 2/12
Exterior Wall Framing
Exterior Wall Finish : Board & Battens and some stone
Framing : 2x4
Insulation : R14
Bedroom Features
Upstairs Bedrooms
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Eating Bar
Additional Room Features
Main Floor Laundry
Mud Room
Storage Area
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
More
Jack & Jill Bath
Suited For Vacation Home
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

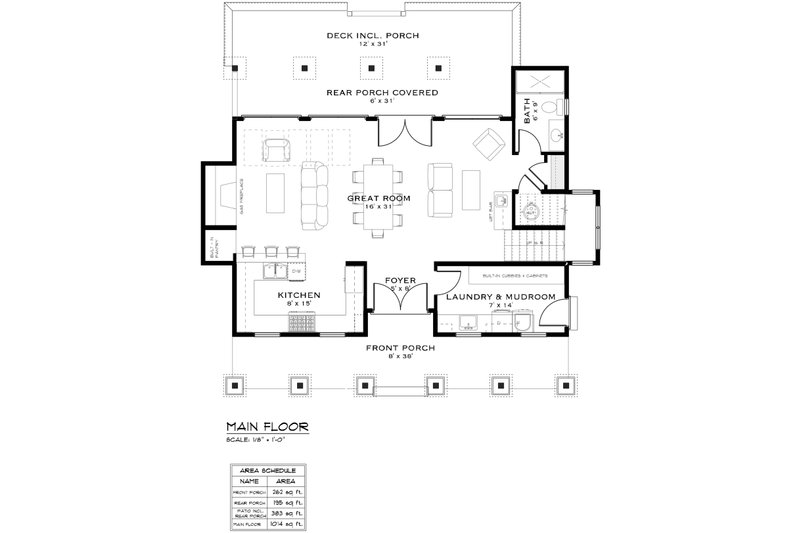

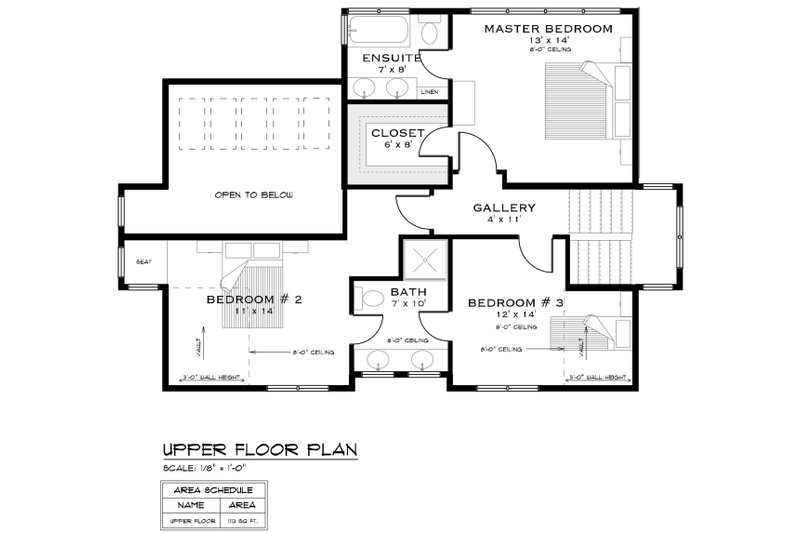

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$1230.00
$1630.00
$1630.00
$1630.00
$1930.00
$2230.00
$2230.00
Foundation
$0.00
$294.98
$295.00
$395.00
Framing
$0.00
$125.00
Additional Options
$245.00
$165.00
$295.00
$39.00
$165.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
