Plan Description
This barndominium design floor plan is 2160 sq ft and has 4 bedrooms and 2.5 bathrooms.
Floor Plans

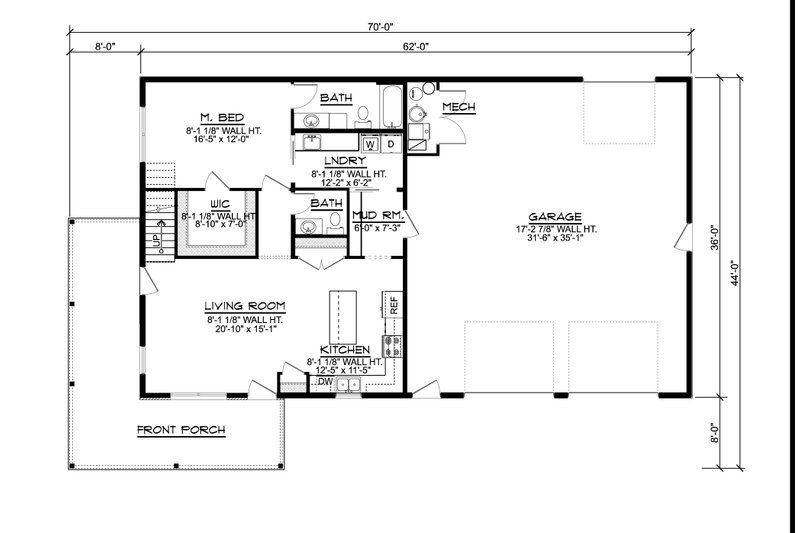

Floor Plan - Main Floor
Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 44'
Height : 23' 9"
Width : 70'
Area
Garage : 1152 sq/ft
Main Floor : 1080 sq/ft
Porch : 272 sq/ft
Upper Floor : 1080 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Garage Ceiling : 17'
Main Ceiling : 8'
Upper Ceiling Ft : 8'
Roof
Roof Framing : Truss
Roof Load : 30 psf
Roof Type : Metal
Exterior Wall Framing
Exterior Wall Finish : Metal
Framing : 2x6
Insulation : R-19
Bedroom Features
Walk In Closet
Kitchen Features
Kitchen Island
Additional Room Features
Great Room Living Room
Loft
Mud Room
Storage Area
Garage Features
Front Entry Garage
Outdoor Spaces
Covered Front Porch
