PLAN 927-1
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans

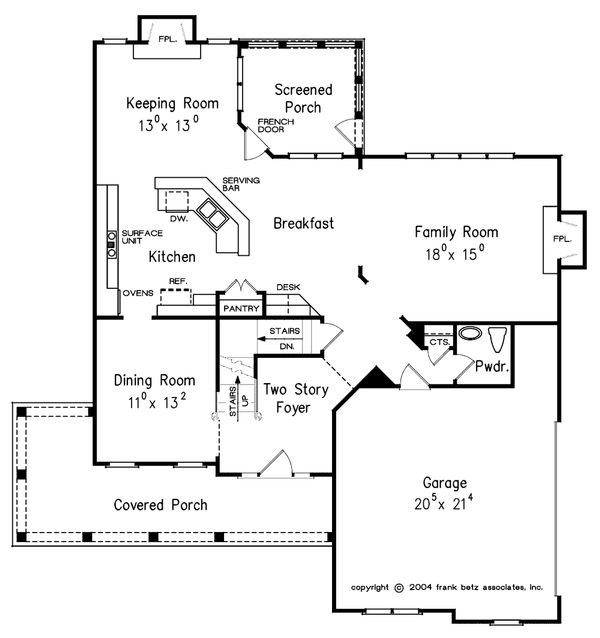

Floor Plan - Main Floor

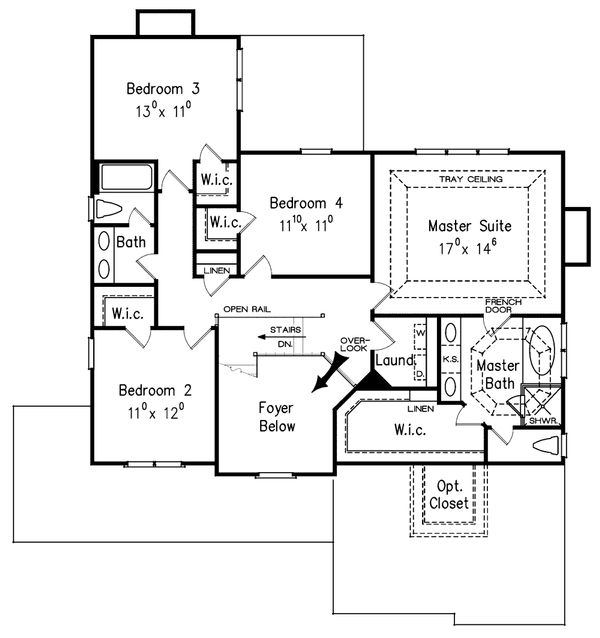

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 55' 10"
Height : 31'
Width : 52' 4"
Area
Basement Unfinished: 1214 sq/ft
Bonus: 46 sq/ft
First Floor: 1214 sq/ft
Garage: 463 sq/ft
Second Floor: 1229 sq/ft
Ceiling
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Roof
Primary Pitch : 10:12
Roof Framing : Stick
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Stone/Siding
Framing : 2x4
Bedroom Features
Upstairs Bedrooms
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Great Room Living Room
Sunroom
Upstairs Laundry
Garage Features
Side Entry Garage
Outdoor Spaces
Covered Front Porch
Screened Porch
Rooms
Bedroom 2:
132 sq/ft width 11' x depth 12'
Bedroom 3:
143 sq/ft width 13' x depth 11'
Bedroom 4:
130 sq/ft width 11' 10" x depth 11'
Breakfast:
129 sq/ft width 10' 10" x depth 12'
Dining Room:
144 sq/ft width 11' x depth 13' 2"
Family Room:
270 sq/ft width 18' x depth 15'
Foyer:
111 sq/ft width 10' 5" x depth 10' 8"
Garage:
435 sq/ft width 20' 5" x depth 21' 4"
Hall Bath:
width 5' x depth 10'
Keeping Room:
169 sq/ft width 13' x depth 13'
Kitchen:
156 sq/ft width 13' 4" x depth 11' 9"
Laundry Room:
36 sq/ft width 5' 9" x depth 6' 4"
Master Bathroom:
108 sq/ft width 11' x depth 9' 10"
Master Bedroom:
246 sq/ft width 17' x depth 14' 6"
Master Closet:
87 sq/ft width 13' 5" x depth 6' 6"
Porch - Front:
203 sq/ft width 29' x depth 7'
Porch - Rear:
115 sq/ft width 11' x depth 10' 6"
Powder Room:
width 5' x depth 5' 6"
Screened Porch:
width 11' x depth 10' 6"
What's Included In This Plan Set
-
All plans include the front elevation at 1/4" or 3/16" and the sides and rear elevations at 1/8" scale. These elevations show and note the exterior finished materials of the house.
- Every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors). The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls. These plans are completed with dimensions, notes, and door/window sizes. Crawl space and/or slab on grade foundations are available for some plans. All foundation types are not available for all plans.
- Each plan consists of 1/4" or 3/16" scale floor layouts showing the location of 2x4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
- The building sections are drawings which take vertical cuts through the house and the stairs showing floor, ceiling and roof height information.
- The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer. Details are included for many interior and exterior conditions to provide more specific information for their construction.
- Each floor framing plan shows each floor joist indicating the size, spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Each framing plan sheet includes any framing details that are needed (tray details, connection details, etc.). All of the framing is designed using conventional 2 X 10 floor joist or wood I-Joist, depending on the span conditions of each home plan. Framing plans are not available for all home plans.
- The ceiling joist framing plan shows each ceiling joist indicating the size,spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Framing plans are not available for all home plans.
- The roof framing plan shows each rafter, valley, hip and ridge indicating the size, spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Framing plans are not available for all home plans.
- Each plan order includes one set of typical detail sheets that show foundation details, typical wall sections and other framing details. Also included on the detail sheets are miscellaneous interior trim and fireplace details that can be used to customize the home.
Plan Set
$2195.00
$2395.00
$2545.00
$2745.00
$2995.00
Foundation
$0.00
$0.00
$0.00
Additional Options
$295.00
$165.00
$295.00
$39.00
$165.00
$85.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
