PLAN 45-359

Photographs may show modified designs.

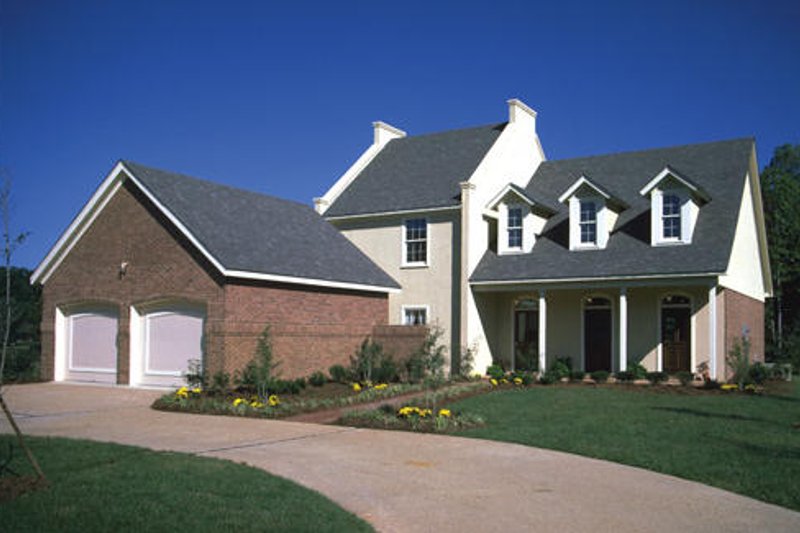

Home Plan - Traditional Exterior - Front Elevation Plan #45-359

Home Plan - Traditional Exterior - Other Elevation Plan #45-359

Home Plan - Traditional Floor Plan - Main Floor Plan #45-359

Home Plan - Traditional Floor Plan - Upper Floor Plan #45-359

Jump to:
All (4)
Exterior (2)
Floor plans (2)

Get Personalized Help

Home > Style > Traditional

Key Specs

2459
sq ft

3
Beds

2.5
Baths

2
Floors

2
Garages

Select Plan Set Options

What's included?

Additional options

Right-Reading Reverse

$150.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$45.00/each

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$100.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets

$75.00

Printed sets showing plan in reverse, text and dimensions will be backwards.

Subtotal

$1100.00

Also order by phone: 1-888-447-1946

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-888-447-1946

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

are Only $4.99
with Code CTB2024 (limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 45-359

Home > Style > Traditional

Key Specs

2459
sq ft

3
Beds

2.5
Baths

2
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

This traditional design floor plan is 2459 sq ft and has 3 bedrooms and 2.5 bathrooms.

Floor Plans

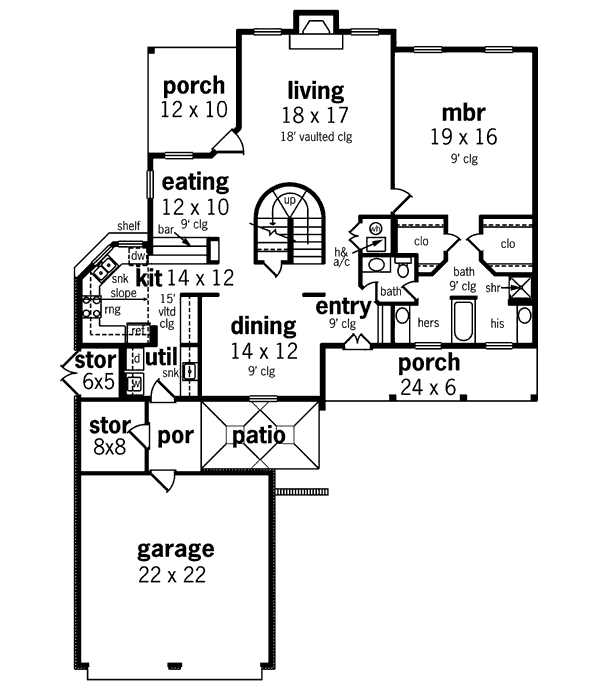

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

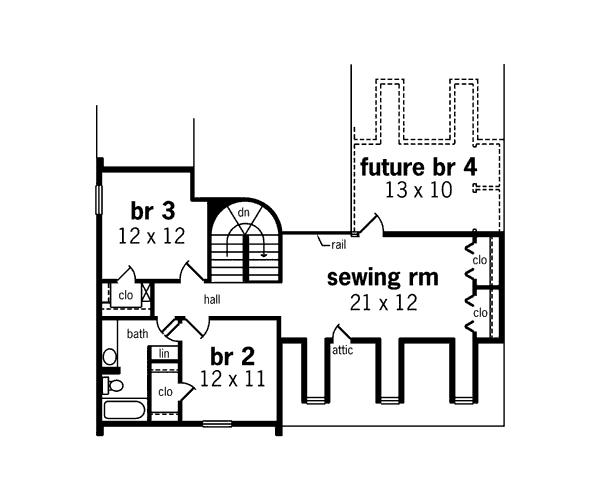

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Dimension

Depth : 72'

Height : 31'

Width : 52'

Area

First Floor: 1653 sq/ft height 9'

Garage: 484 sq/ft height 9'

Porch: 308 sq/ft

Second Floor: 806 sq/ft height 8'

Storage: 94 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'

Upper Ceiling Ft : 8'

Roof

Primary Pitch : 9:12

Roof Framing : stick

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Brick/stucco

Framing : 2"x6"

Insulation : Walls: R-19, Ceiling: R38

Bedroom Features

Main Floor Master Bedroom

Split Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Eating Bar

Additional Room Features

Family Room Keeping Room

Hobby Rec Room Game Room

Storage Area

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

Rooms

Bedroom 2:

132 sq/ft width 12' x depth 11'

Bedroom 3:

144 sq/ft width 12' x depth 12'

Bonus Room - Unfinished:

130 sq/ft width 13' x depth 10'

Dining Room:

168 sq/ft width 14' x depth 12'

Eating:

120 sq/ft width 12' x depth 10'

Garage:

484 sq/ft width 22' x depth 22'

Kitchen:

168 sq/ft width 14' x depth 12'

Master Bedroom:

304 sq/ft width 19' x depth 16'

Porch - Front:

144 sq/ft width 24' x depth 6'

Porch - Rear:

120 sq/ft width 12' x depth 10'

Sewing Room:

252 sq/ft width 21' x depth 12'

What's Included In This Plan Set

See a sample plan set

Information Cover Sheet
Foundation Plan: Each plan is designed on a specific type of foundation. Optional foundation types may be offered. Refer to the general information listed with each plan to determine foundation type and options available.
Detailed Floor Plans: Complete with the window and door schedules. Electrical plans, with suggested switch, fixture and outlet locations, may be part of the floor plan or a separate drawing.
Exterior Views
Building Sections & Interior Elevations
Complete Construction Details
Complete Specifications: Specifications list the types of materials used in the construction of the home. Finish schedules are provided.

Questions? Call 1-888-447-1946

Plan Set

PDF Set:
$1100.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set:
$1230.00

5 printed plan sets mailed to you.

8 Copy Set:
$1340.00

8 printed plan sets mailed to you.

5 Copy and PDF Set:
$1355.00

5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Set:
$2100.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Slab:
$0.00

Ideal for level lot, single layer concrete poured directly on grade.

Basement:
$175.00

Ideal for level lot, lower level of home partially or fully underground.

Crawlspace:
$175.00

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Additional Options

Right-Reading Reverse:
$150.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets:
$45.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design:
$100.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide:
$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$100.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets:
$75.00

A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
