Key Specs
2464
sq ft
3
Beds
3
Baths
1
Floors
0
Garages
Phone: 1-888-447-1946
See our Terms & Conditions and Privacy Policy.
with Code CTB2024 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 117-245
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 54'
Height : 24'
Width : 45'
Area
Basement Living: 1232 sq/ft
First Floor: 1232 sq/ft
Roof
Primary Pitch : 7:12
Roof Framing : Truss
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2"x6"
Bedroom Features
Split Bedrooms
Upstairs Master Bedrooms
Kitchen Features
Eating Bar
Additional Room Features
Family Room Keeping Room
Great Room Living Room
Lot Characteristics
Suited For Sloping Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Wrap Around Porch
Rooms
Bedroom 1:
157 sq/ft width 11' 5" x depth 13' 10"
Bedroom 2:
141 sq/ft width 10' 3" x depth 13' 10"
Family Room:
520 sq/ft width 25' 10" x depth 20' 2"
Great Room:
531 sq/ft width 27' x depth 19' 8"
Kitchen:
134 sq/ft width 11' 2" x depth 12'
Master Bedroom:
205 sq/ft width 15' 10" x depth 13'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

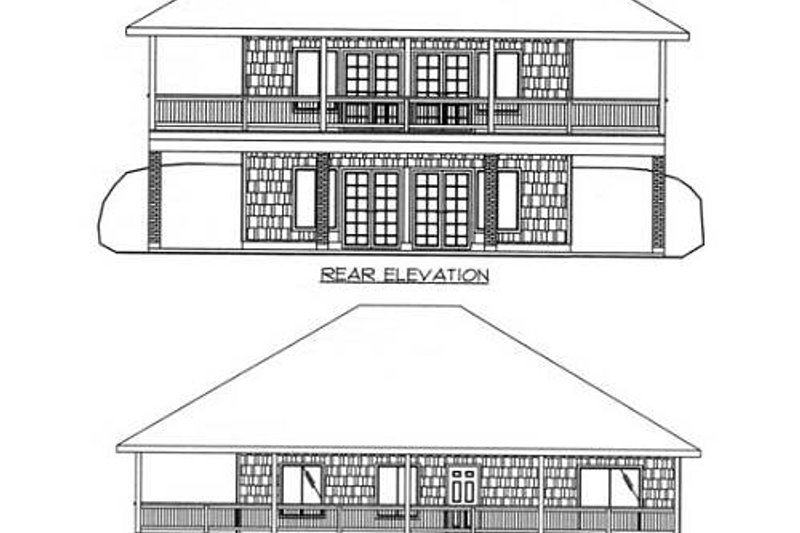

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

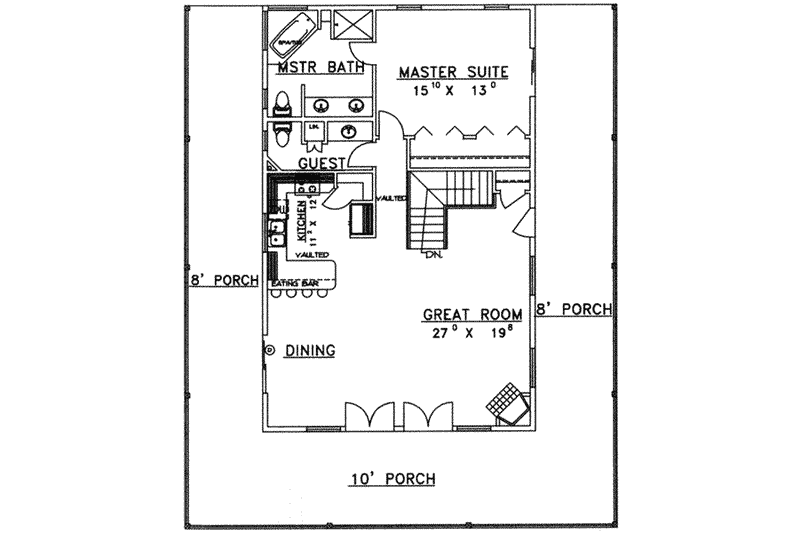

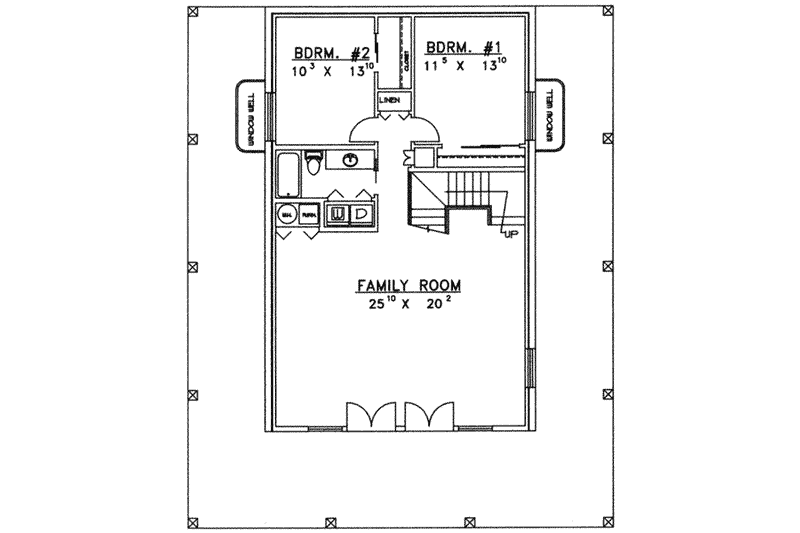

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$1195.00
$1295.00
$1295.00
$1445.00
$1995.00
Foundation
$0.00
Additional Options
$195.00
$50.00
$165.00
$295.00
$39.00
$165.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
