PLAN 51-1130
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
This cool modern farmhouse features tons of details to make everyday life easier. Check out the barn doors throughout, leading from the great room to the study (which makes a handy home office) and on both sides of the generous pantry. A large island in the kitchen includes room for seating on two sides, so it’s easy for friends and family to relax and talk with each other. The open dining room is a modern touch. Unwind in the master suite, complete with a huge walk-in closet, two sinks, and access to the back porch. Three more bedrooms upstairs share two baths and access to the bonus room, along with another laundry closet.
Floor Plans

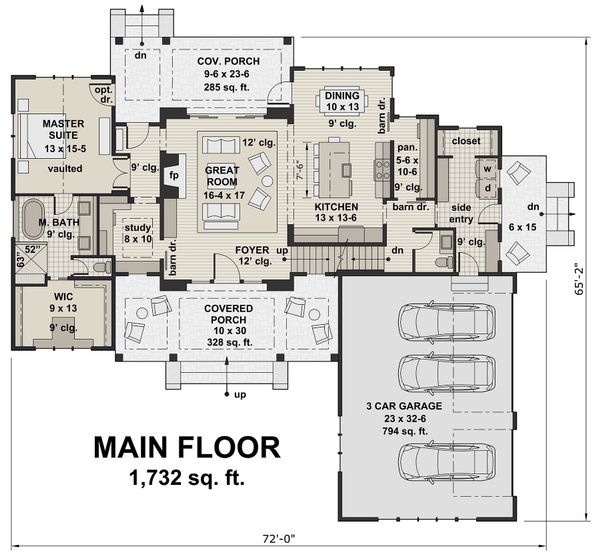

Floor Plan - Main Floor

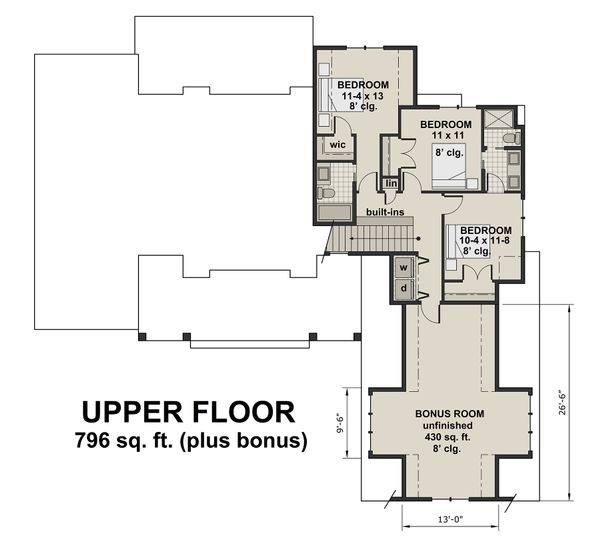

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 65' 2"
Height : 32'
Width : 72'
Area
Basement Unfinished: 1732 sq/ft
Bonus: 430 sq/ft
First Floor: 1732 sq/ft height 9'
Garage: 764 sq/ft
Second Floor: 796 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 9'
Roof
Primary Pitch : 14:12
Roof Framing : Truss
Roof Type : Metal
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2x6
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Upstairs Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Main Floor Laundry
Play Flex Room
Upstairs Laundry
Garage Features
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
More
Jack & Jill Bath
What's Included In This Plan Set
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements. Drawn to 1/4" and 1/8" scale.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Roof Layout: Overhead view of roof showing ridges, valleys, and pitch.
- Note: These plans will not contain an electrical layout.
Questions? Call 1-888-447-1946
Plan Set
PDF Set:
$2050.00
$2050.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set:
$2250.00
$2250.00
5 printed plan sets mailed to you.
5 Copy and PDF Set:
$2350.00
$2350.00
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
8 Copy Set:
$2350.00
$2350.00
8 printed plan sets mailed to you.
CAD Set:
$2700.00
$2700.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation
Crawlspace:
$0.00
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Basement:
$400.00
$400.00
Ideal for level lot, lower level of home partially or fully underground.
Daylight Basement:
$400.00
$400.00
Ideal for sloping lot, lower level of home partially underground.
Slab:
$400.00
$400.00
Ideal for level lot, single layer concrete poured directly on grade.
Walk Out Basement:
$400.00
$400.00
Ideal for a sloping lot, lower level with outdoor access.
Framing
Wood 2x6:
$0.00
$0.00
Wood 2x6 Exterior Walls
Wood 2x4:
$250.00
$250.00
Wood 2x4 Exterior Walls
Additional Options
Right-Reading Reverse:
$250.00
$250.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets:
$75.00
$75.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design:
$165.00
$165.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$39.00
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$165.00
$165.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Marketing Materials:
$300.00
$300.00
This package includes multiple high-resolution renderings, a fly-around video, art floor plans, and a written description of the features of the home.
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
