PLAN 54-180
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 43' 6"
Height : 34'
Width : 52'
Area
Basement Unfinished: 1417 sq/ft
Bonus: 119 sq/ft
First Floor: 1417 sq/ft height 9'
Second Floor: 1169 sq/ft
Roof
Primary Pitch : 10:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Guest Suite
Split Bedrooms
Kitchen Features
Breakfast Nook
Butler's Pantry
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Exercise Room
Family Room Keeping Room
Great Room Living Room
Loft
Main Floor Laundry
Master Sitting Area
Open Floor Plan
Unfinished Future Space
Garage Features
Side Entry Garage
Outdoor Spaces
Balcony
Covered Front Porch
Deck
Wrap Around Porch
Rooms
Bedroom 2:
width 11' 9" x depth 11' 2"
Bedroom 3:
width 11' 2" x depth 10' 1"
Bedroom 4:
width 11' 2" x depth 10' 9"
Breakfast Area:
width 10' 6" x depth 13'
Dining Room:
width 11' 8" x depth 14' 8"
Garage:
width 19' 5" x depth 21' 2"
Kitchen:
width 8' 11" x depth 13' 4"
Living Room:
width 11' 3" x depth 11' 9"
Master Bedroom:
width 17' 1" x depth 15'
Master Sitting Area:
width 9' 9" x depth 11' 2"
Study:
width 11' 3" x depth 13' 11"
What's Included In This Plan Set

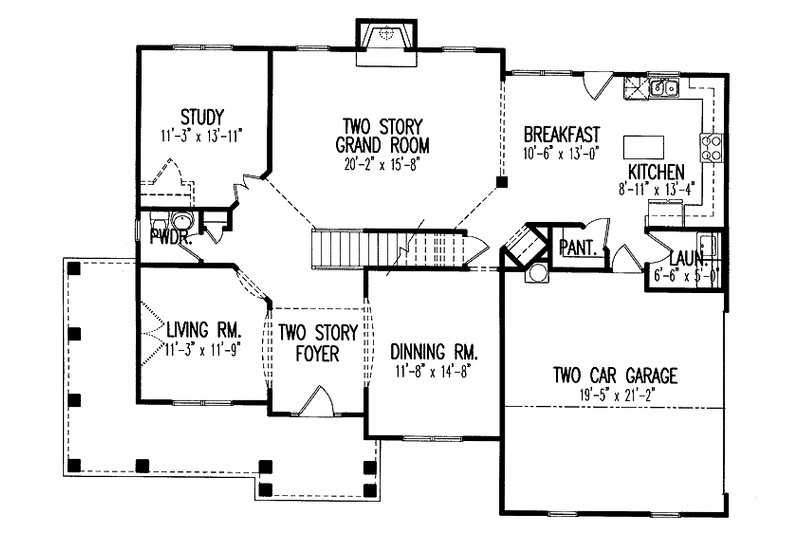

- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

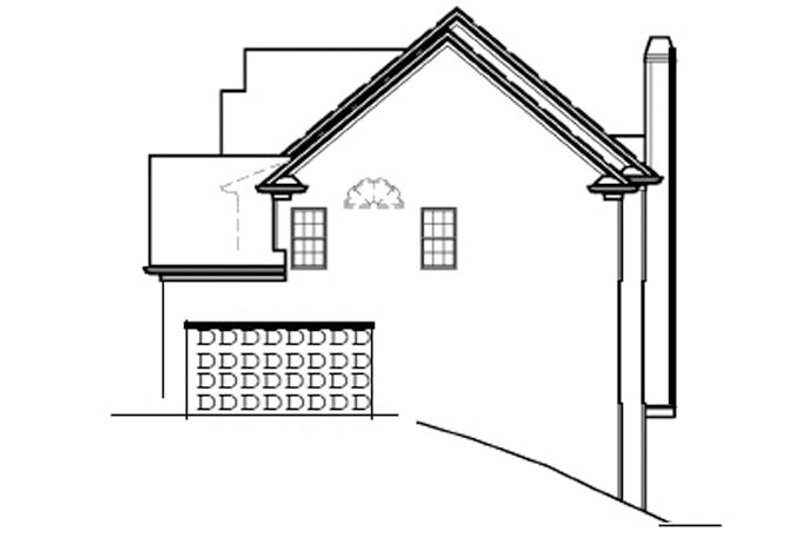

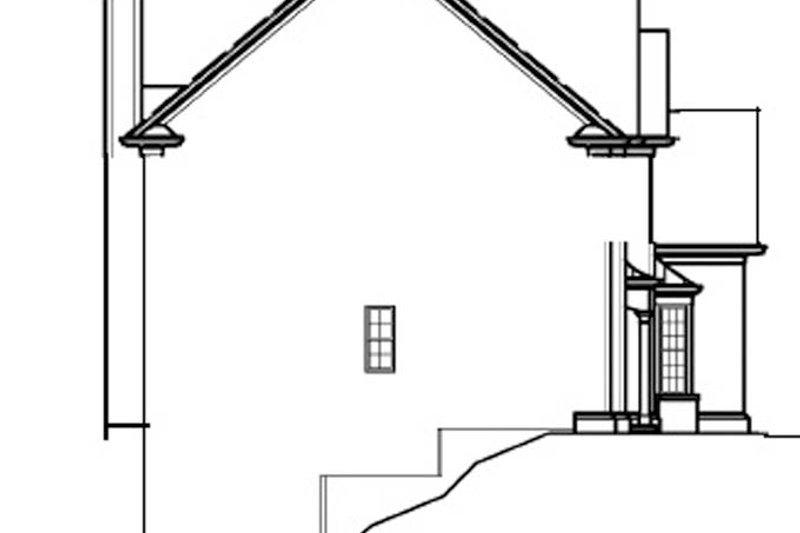

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

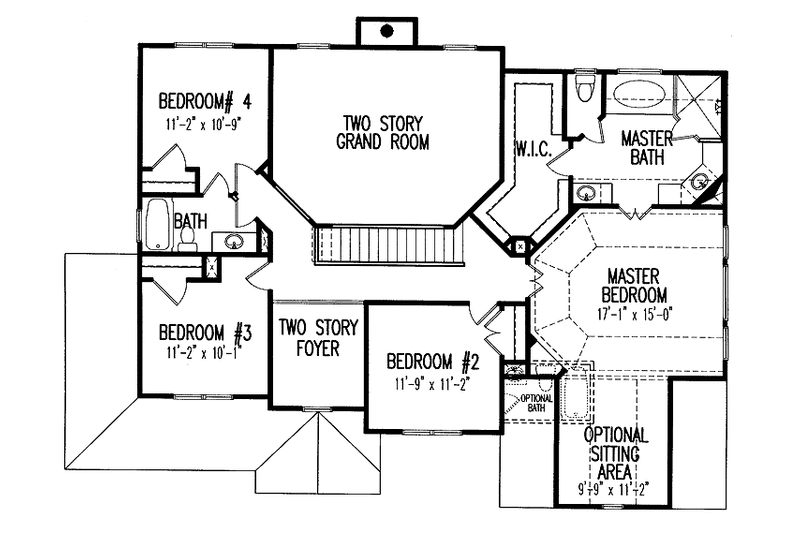

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$1208.70
$2016.20
$2096.95
Foundation
$0.00
$0.00
$0.00
$297.50
Framing
$0.00
$297.50
Additional Options
$212.50
$59.50
$140.25
$250.75
$33.15
$140.25
$46.75
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
