Plan Description
This country design floor plan is 2607 sq ft and has 3 bedrooms and 2.5 bathrooms.
Floor Plans

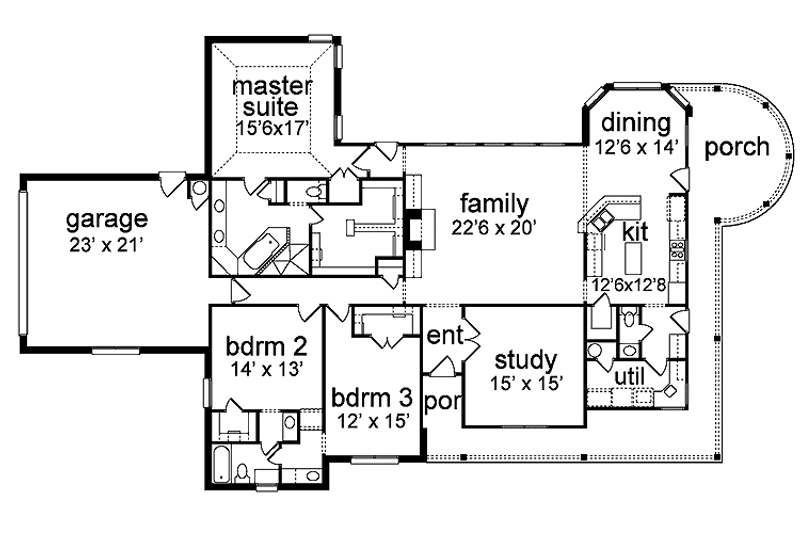

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 57' 4"
Height : 21' 10"
Width : 97' 8"
Area
First Floor: 2607 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 6:12
Roof Framing : Combination Truss/Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : Wood - 2x4
Bedroom Features
Fireplace
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Main Floor Laundry
Open Floor Plan
Vaulted / Cathedral Ceilings
Garage Features
Side Entry Garage
Outdoor Spaces
Wrap Around Porch
More
Jack & Jill Bath
What's Included In This Plan Set
- FOUNDATION LAYOUT PLAN: 1/4" Scale - Dimensioned but not engineered. Structural design of foundation needs to be provided by a local structural engineer.
- FRONT RENDERING: 1/4" Scale
- FLOOR PLAN(S): 1/4" Scale - Electrical and plumbing noted directly on plan(s). Mechanical layouts not included.

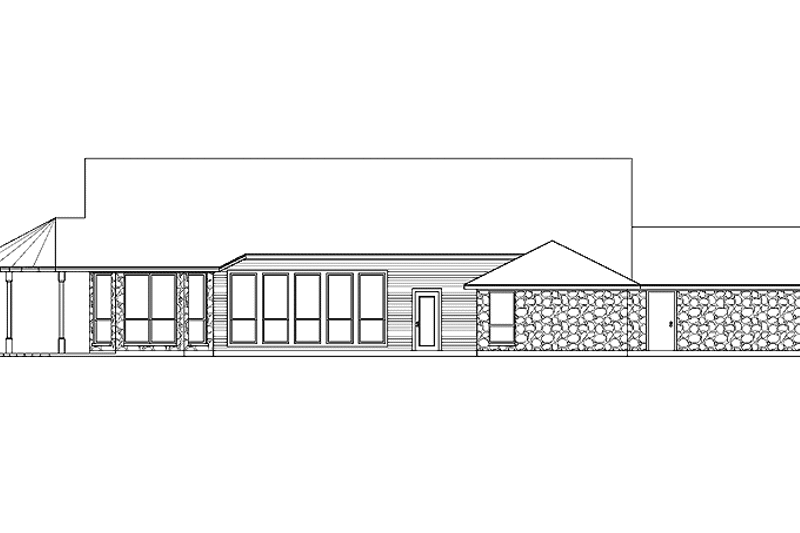

- ELEVATIONS: 1/4" scale rear elevation and 1/8" scale side elevations
- ROOF PLAN: 1/8" scale showing hips, peaks and valleys of roof. Information noted on Elevations page.
- STANDARD DETAIL PAGE: Shows typical building section (not necessarily specific to this plan), and building code notes.
