PLAN 20-2146
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans
Floor Plan - Other Floor

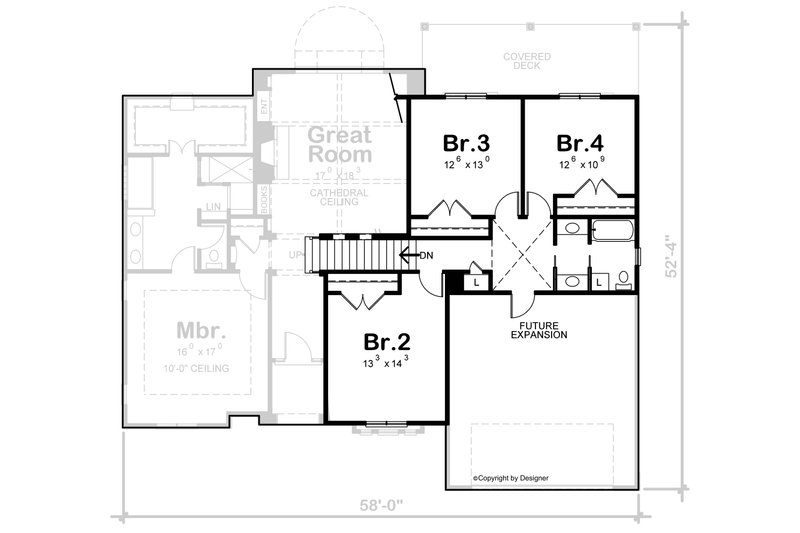

Floor Plan - Upper Floor

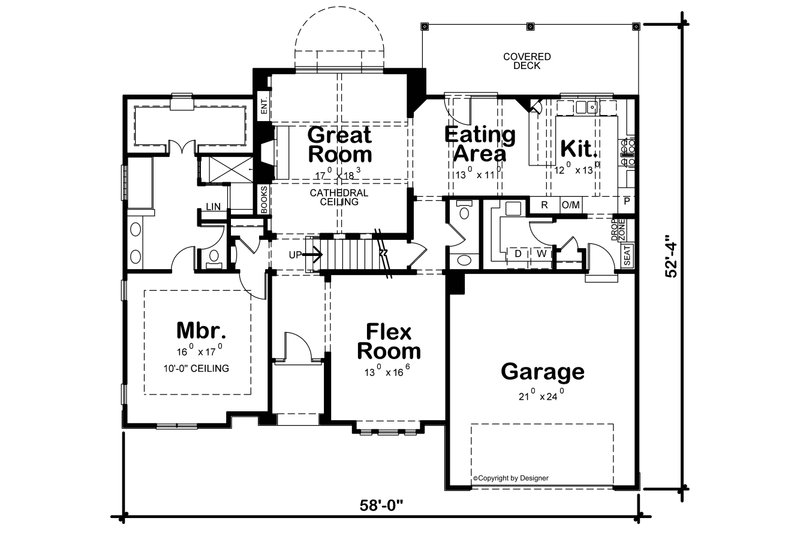

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 52' 4"
Height : 28' 10"
Width : 58'
Area
First Floor: 1807 sq/ft height 9'
Garage: 522 sq/ft
Second Floor: 800 sq/ft height 8'
Ceiling
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Roof
Primary Pitch : 8:12
Secondary Pitch : 12:12
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : 2x4
Bedroom Features
Main Floor Master Bedroom
Split Bedrooms
Upstairs Bedrooms
Walk In Closet
Kitchen Features
Eating Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Main Floor Laundry
Play Flex Room
Garage Features
Front Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms
Bedroom 2:
width 13' 3" x depth 14' 3"
Bedroom 3:
width 12' 6" x depth 13'
Bedroom 4:
width 12' 6" x depth 10' 9"
Breakfast:
width 13' x depth 11'

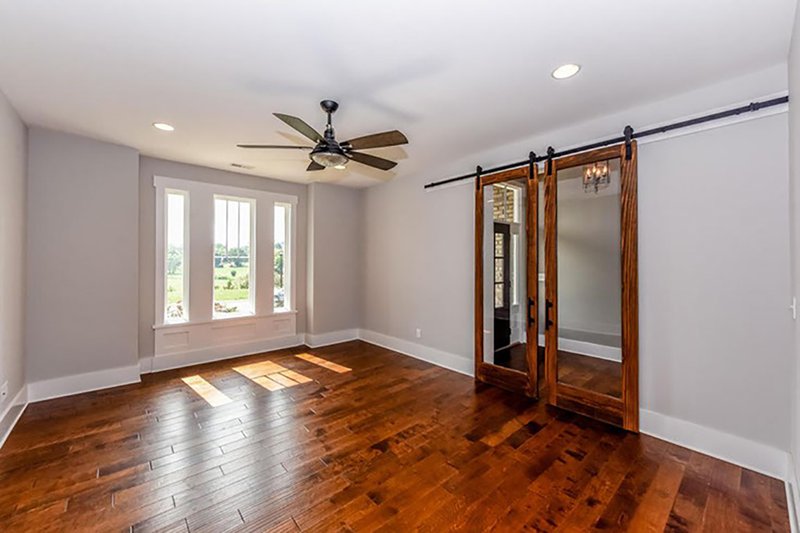

Flex:
width 13' x depth 16' 6"

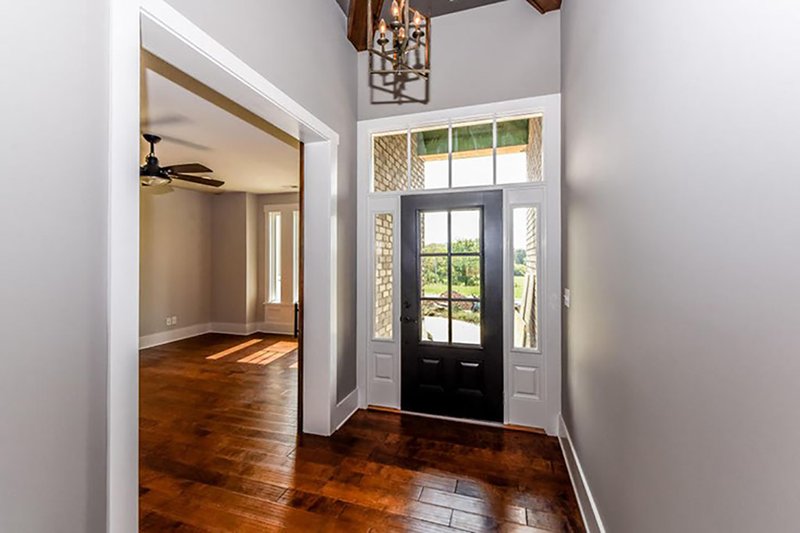

Foyer:
width 6' x depth 9' 4"
Foyer:
width 6' x depth 9' 4"
Garage:
522 sq/ft width 21' x depth 24'

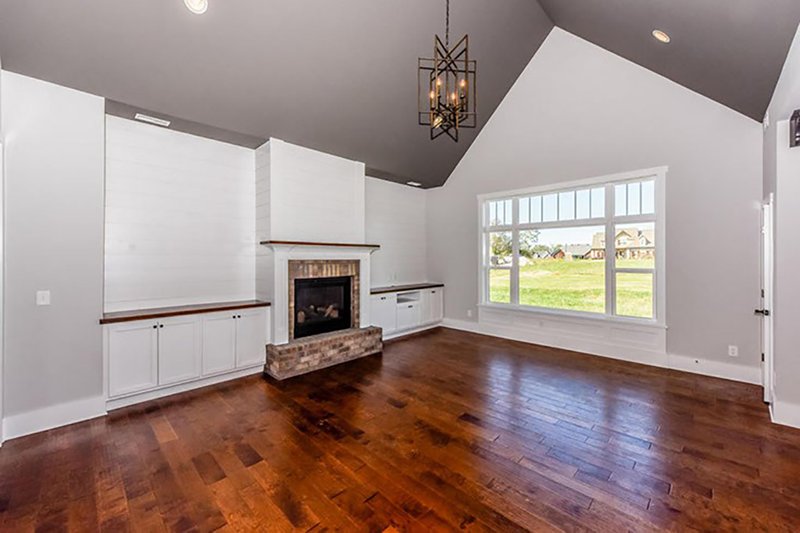

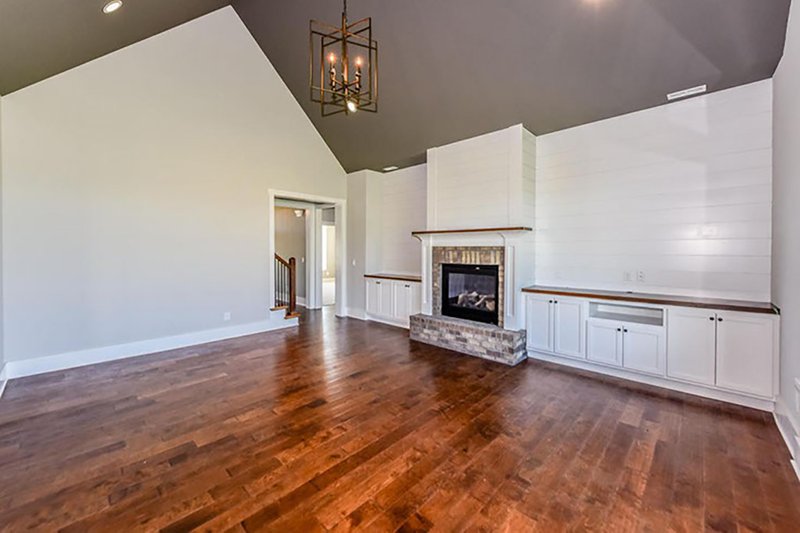

Great Room:
width 17' x depth 18' 3"

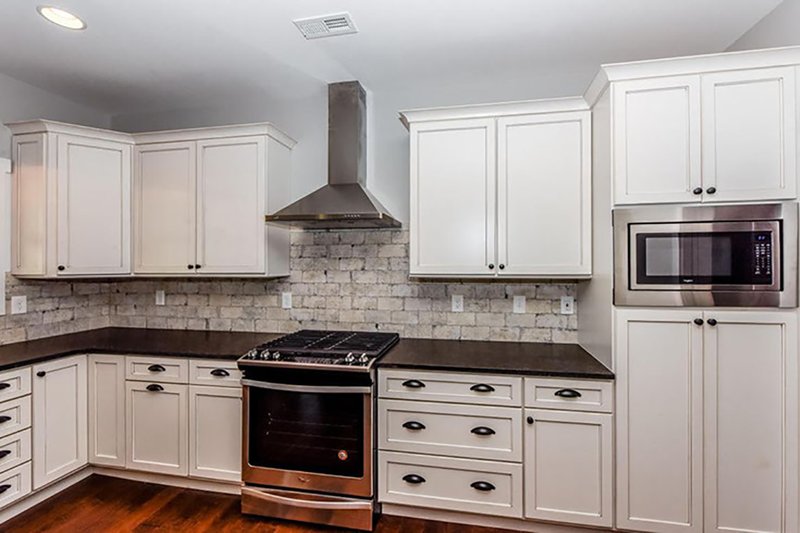

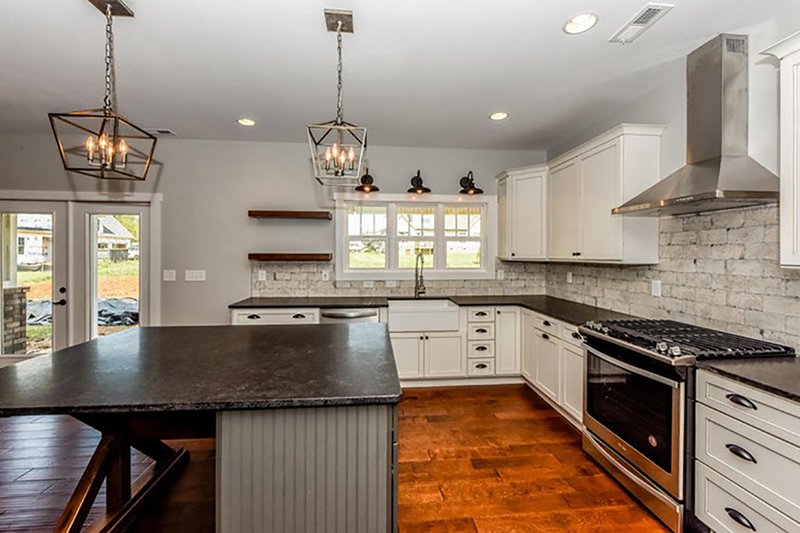

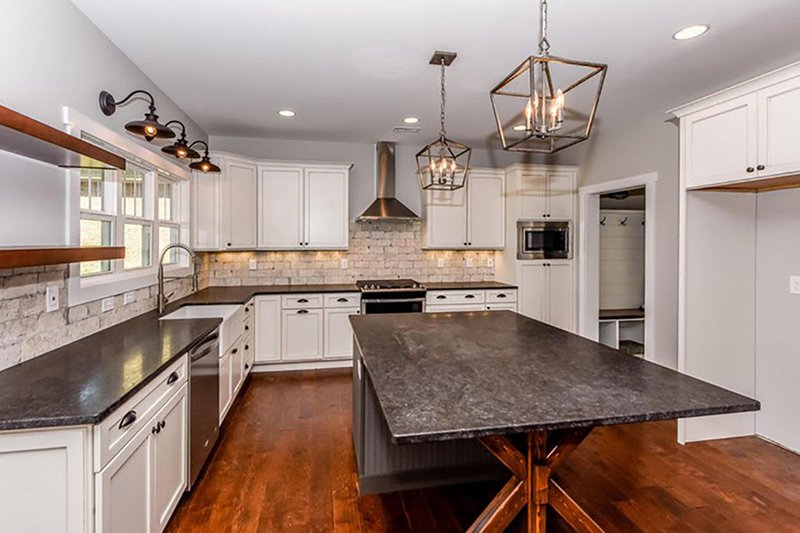

Kitchen:
width 12' x depth 13'
Laundry:
width 7' 11" x depth 8'
Laundry:
width 7' 11" x depth 8'

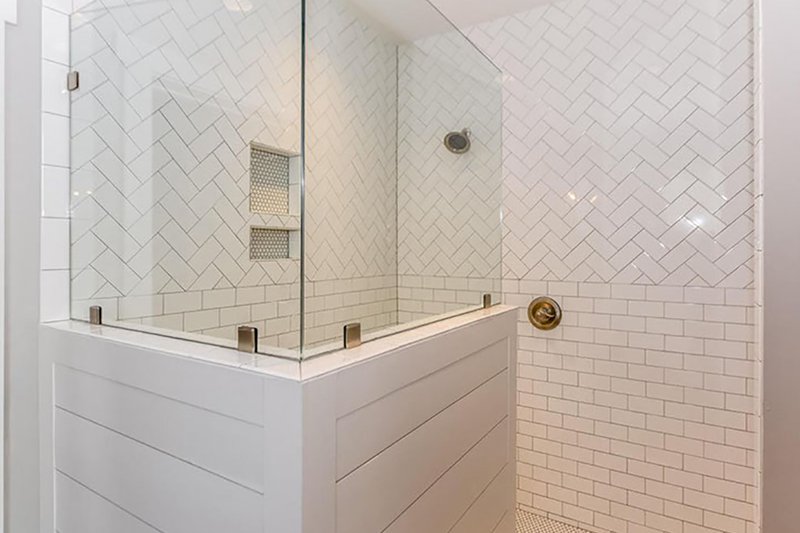

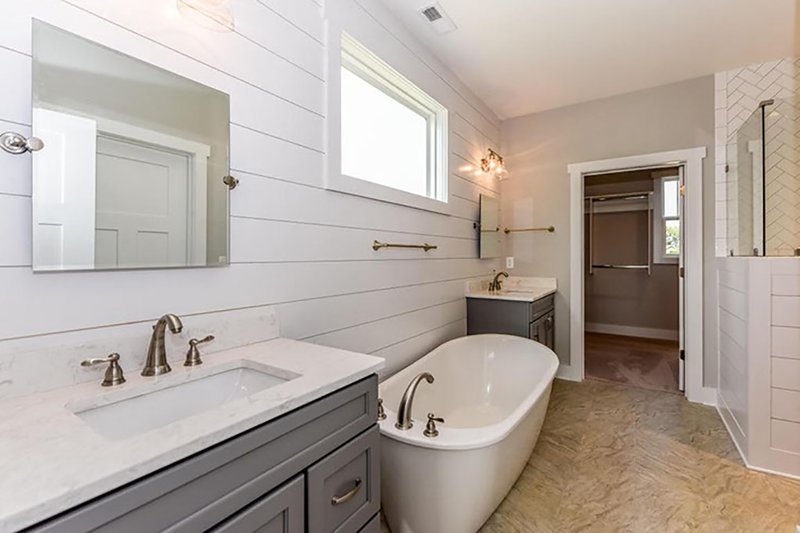

Master Bath:
width 14' 4" x depth 12' 10"
Master Bath:
width 14' 4" x depth 12' 10"
Master Bedroom:
width 16' x depth 17'

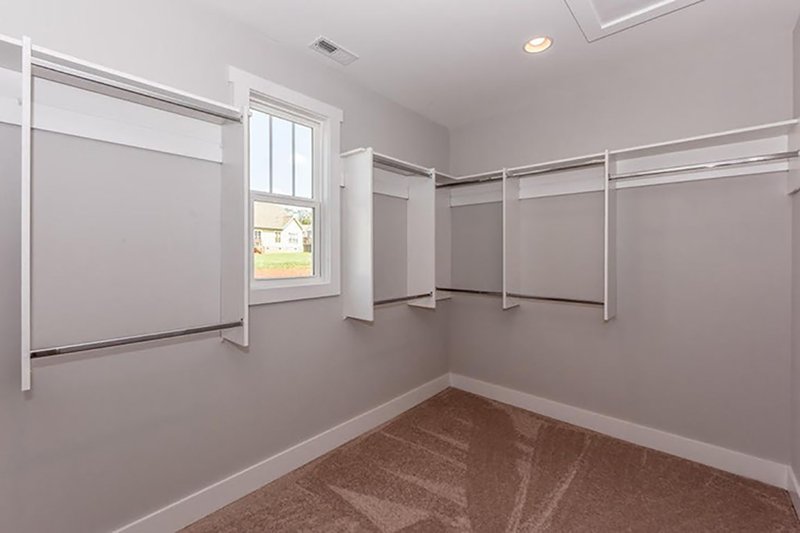

Master Closet:
width 14' 4" x depth 6' 2"
Master Closet:
width 14' 4" x depth 6' 2"
What's Included In This Plan Set
- Cover Page: Front elevation and informative reference sections including: general notes and design criteria
- Elevations: Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are noted and an aerial view of the roof is provided, showing all hips, valleys and ridges.
- Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. Shows the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above. Alternate foundations are available for a fee.
- Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.
- Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.
- Elevations: Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations. Not included with all plans, please call for details.
- Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall and stair sections are provided to further explain construction of these areas.
Plan Set
$964.00
$1576.00
Foundation
$0.00
$236.00
$236.00
$312.00
Framing
$0.00
$236.00
Additional Options
$236.00
$200.00
$132.00
$31.20
$132.00
$156.00
$400.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
