PLAN 36-466
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description

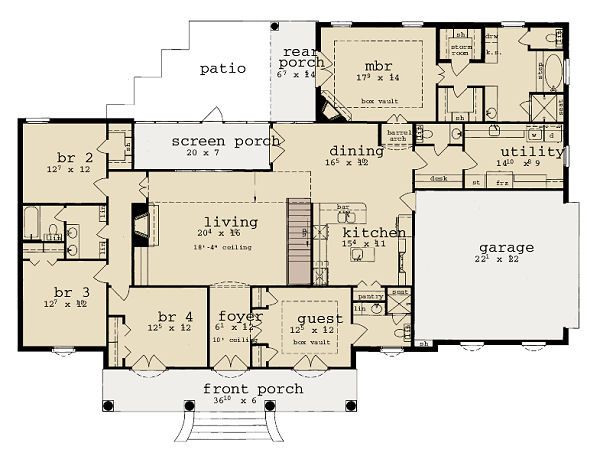

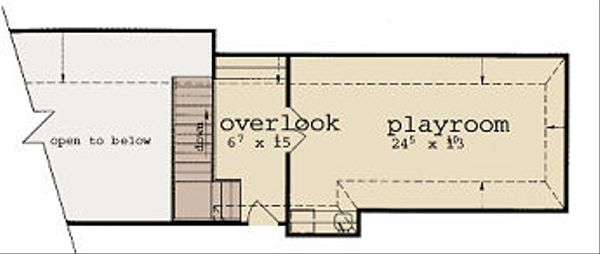

Floor Plans
Full Specs & Features
Dimension
Depth : 56' 5"
Height : 28' 5"
Width : 80' 10"
Area
Bonus: 445 sq/ft
First Floor: 2613 sq/ft
Ceiling
Main Ceiling : 9'
Upper Ceiling Ft : 9'
Roof
Primary Pitch : 14:12
Secondary Pitch : 10:12
Exterior Wall Framing
Framing : 2"x4"
Rooms
Bedroom 2:
150 sq/ft width 12' 7" x depth 12'
Bedroom 3:
161 sq/ft width 12' 7" x depth 12' 10"
Bedroom 4:
149 sq/ft width 12' 5" x depth 12'
Dining Room:
210 sq/ft width 16' 5" x depth 12' 10"
Foyer:
73 sq/ft width 6' 1" x depth 12' 1"
Garage:
487 sq/ft width 22' 1" x depth 22' 1"
Guest Bedroom:
149 sq/ft width 12' 5" x depth 12'
Kitchen:
169 sq/ft width 15' 4" x depth 11' 1"
Living Room:
342 sq/ft width 20' 4" x depth 16' 10"
Master Bedroom:
248 sq/ft width 17' 9" x depth 14'
Utility Room:
143 sq/ft width 14' 10" x depth 9' 8"
What's Included In This Plan Set
- Floor plan with dimensions.
- Electrical layout showing fixtures and switches, but not circuits.
- Elevations from all 4 sides and top.
- Framing details including cornices and at least one section.
- Foundation with footing details. Plumbing is repeated on slab foundation.
Plan Set
$573.75
$658.75
$658.75
$467.50
Foundation
$0.00
Additional Options
$85.00
$42.50
$85.00
$33.15
$85.00
$21.25
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
