PLAN 60-931
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans

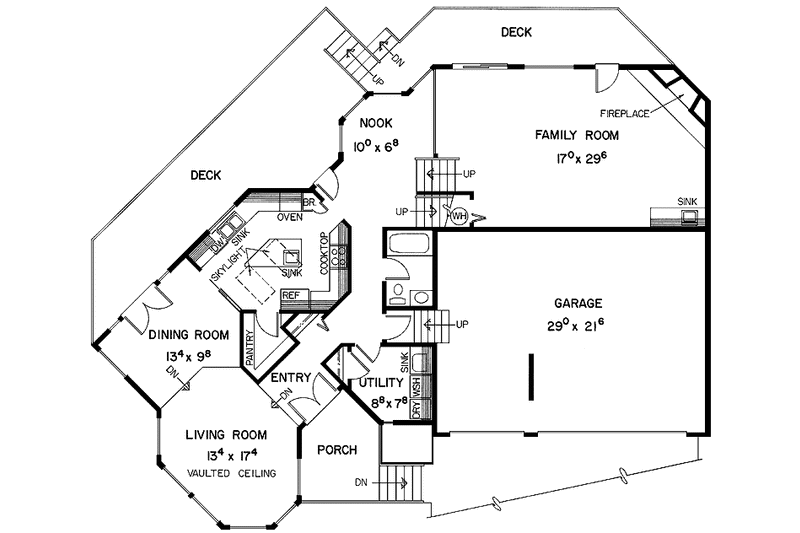

Floor Plan - Main Floor

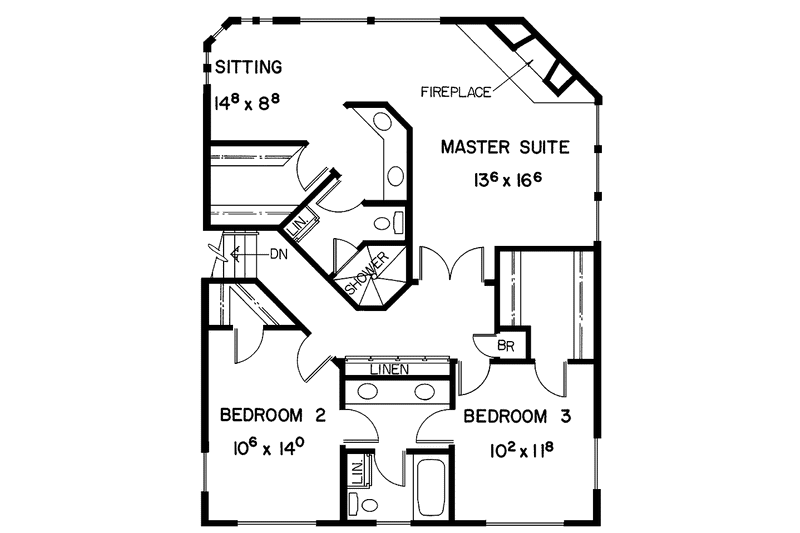

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 50'
Height : 23'
Width : 67'
Area
First Floor: 1532 sq/ft
Second Floor: 1120 sq/ft
Roof
Primary Pitch : 4:12
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x6
Bedroom Features
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Additional Room Features
Family Room Keeping Room
Master Sitting Area
Outdoor Spaces
Covered Front Porch
Deck
Rooms
Bedroom 2:
147 sq/ft width 10' 6" x depth 14'
Bedroom 3:
118 sq/ft width 10' 2" x depth 11' 8"
Dining Room:
128 sq/ft width 13' 4" x depth 9' 8"
Family Room:
501 sq/ft width 17' x depth 29' 6"
Garage:
623 sq/ft width 29' x depth 21' 6"
Living Room:
231 sq/ft width 13' 4" x depth 17' 4"
Master Sitting Area:
127 sq/ft width 14' 8" x depth 8' 8"
Master Suite:
222 sq/ft width 13' 6" x depth 16' 6"
Nook:
66 sq/ft width 10' x depth 6' 8"
What's Included In This Plan Set
- Exterior Elevations are scaled (1/4" and 1/8" = 1'-0") drawings of the front, rear, left, and right sides of the home.
- Detailed Floor plans of the home accurately dimensioning the positioning of the walls, doors, windows, stairs, and permanent fixtures.
- Foundation plan details the foot print of the home. Location and size of load points, stem walls, footings, pony walls, and floor joist.
- Roof plans are typically truss planing, truss manufacturer will provide detail diagrams of truss's. In some cases the roof plans may be drawn as stick framed or have stick framing which will call out lumber sizes and spacing.
- Cross Sections offer a cut away through the home showing your builder the correlation of building components.
- Details indicate minimum CABO/IRC standards for construction of the home.
- Electrical plan shows the schematic of the electrical layout. Most electricians want to discuss the options the home owner desires prior to bidding.
- Mechanical and Detailed Plumbing plans are not included. These are site specific and are accomplished by those professionals.
- All plans are prepared in compliance with the Uniform Building Code (ICBO) or the International Residential Code, a National Standard for residential construction at the time of completion.
Plan Set
$850.00
$850.00
Foundation
$0.00
Framing
$0.00
Additional Options
$51.00
$85.00
$33.15
$85.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
