Plan Description
This traditional design floor plan is 2874 sq ft and has 5 bedrooms and 3 bathrooms.
Floor Plans

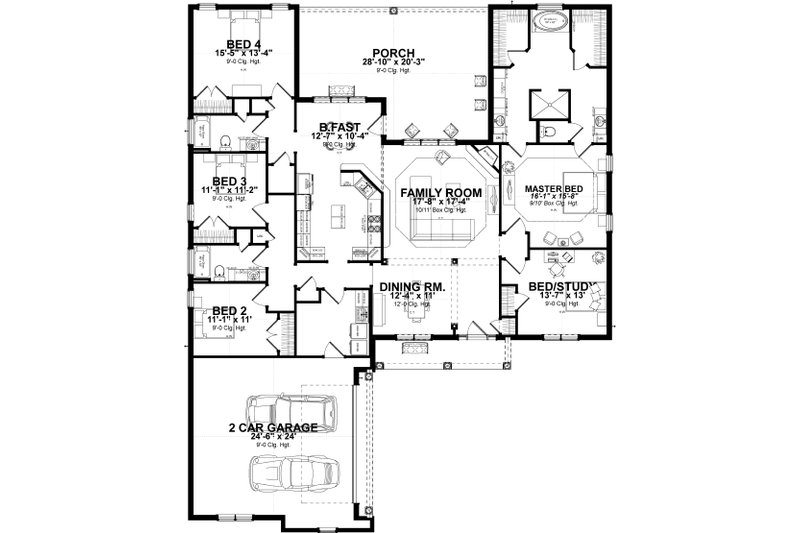

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 80' 6"
Height : 27' 4"
Width : 64' 7"
Area
Garage : 636 sq/ft
Main Floor : 2874 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 9'
Roof
Primary Pitch : 10
Roof Framing : Stick
Roof Load : 15#
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : 2x4
Bedroom Features
Guest Suite
Split Bedrooms
Kitchen Features
Breakfast Nook
Eating Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Garage Features
Front Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
More
Economical To Build
Wheelchair Adaptable
What's Included In This Plan Set
- Cover Sheet: Including 3-D perspectives of the exterior of the house. Also protects the rest of the documents within the project set.
- * Foundation: Complete with dimensions, dimensioned plumbing and referenced details
- Elevations: Complete with dimensions, ridge heights and special notes and materials
- Floor Plan(s): Complete with dimensions of all elements including plumbing, appliances and cabinet sizes. Applicable notes of special conditions are tailored with the tradesmen in mind.
- Roof Plan: Complete with dimensions, plate heights, roof pitches and notes for special conditions, as well as a Roof Square footage table for Calculating roof materials.
- Rafter plan: Complete with rafter lengths and separate rafter cut list. for accurate estimation of materials. This also aids the framer in selecting the correct lengths to use in order to minimize waste.
- Details: Applicable Cornice (Eve) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from quality set of plans.
- Interior Elevations: Including applicable cabinets, electrical, and special construction notes.
- Floor joist: Complete with spans, sizes and direction (if applicable).
- Ceiling Joist: Complete with spans, sizes and direction
- Sections: Complete with dimensions, notes and Specifications
- Electrical Plan: Complete with layout, Light fixtures, Outlets and legend.
