Plan Description

Texas Ranch Style - Unbelievable curb appeal - Open floor plan - Huge kitchen with island - Four large bedrooms - Large game room - Volume ceilings - Large rear porch - Three car garage - Luxurious primary suite - Office - Wood burning fireplace

Floor Plans

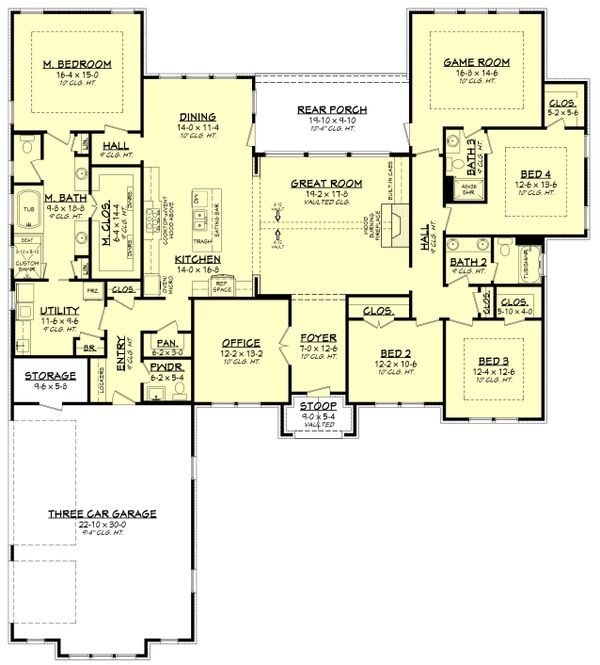

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Floor Plan - Other Floor

Reverse

Full Specs & Features

Dimension

Depth : 82' 10"

Height : 23'

Width : 74'

Area

Garage : 736 sq/ft

Main Floor : 3044 sq/ft

Porch : 246 sq/ft

Storage : 59 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'

Roof

Primary Pitch : 6:12

Roof Framing : Stick

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Stone/ Stucco

Framing : 2x4

Bedroom Features

Main Floor Bedrooms

Main Floor Master Bedroom

Walk In Closet

Kitchen Features

Breakfast Nook

Eating Bar

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Great Room Living Room

Main Floor Laundry

Mud Room

Play Flex Room

Storage Area

Garage Features

Side Entry Garage

Lot Characteristics

Suited For Corner Lot

Suited For View Lot

Outdoor Spaces

Covered Rear Porch

Economical To Build

Energy Efficient Features

Energy Efficient Design

What's Included In This Plan Set

See a sample plan set

Purchasing a CAD set gives you an unlimited build license.

Cover Sheet – May include index, front view of home, definitions, etc.
Foundation Plan – Typically includes dimensioned foundation plan with footing details.
Dimensioned Floor Plan – Electrical may be shown.
Exterior Views – Four exterior views of the residence with other miscellaneous details.
Roof Plan – Birds eye view showing all ridges, valleys and other necessary information.
Electrical Plan – Displays all lighting fixtures, outlets and other necessary electrical items. These items may be shown on the Dimensioned Floor Plan. Switches and arcs are not shown and should be located by owner/contractor at site.
Wall Section(s) – Detail of wall materials and assembly.
Building Section(s) – Section through home displaying necessary information about framing and other miscellaneous data.
Cabinet Elevations – Displays interior kitchen cabinet views.

________________________

*Material List Note: When a material list is ordered, a list of the materials needed to build this plan will be sent. Please note that the materials list will conform to the standard plan (slab or crawlspace only). Additional options such as a Basement or 2x6 Wall conversion will not be reflected in the material list.

________________________

Note about 2x6 Wall Option: If choosing the 2x6 wall option, the added stud depth will be applied towards the interior of the walls.
