Plan Description

This colonial design floor plan is 3118 sq ft and has 4 bedrooms and 3.5 bathrooms.

Floor Plans

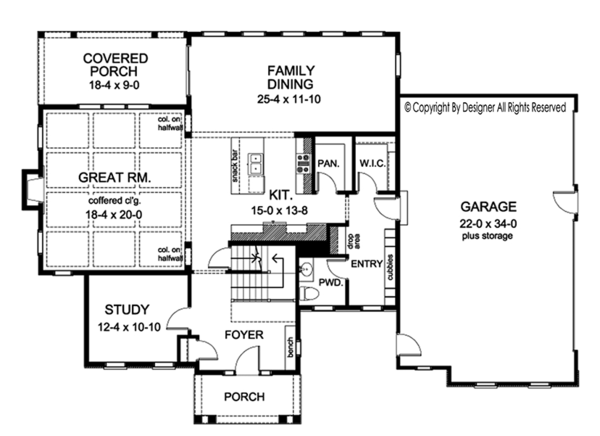

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

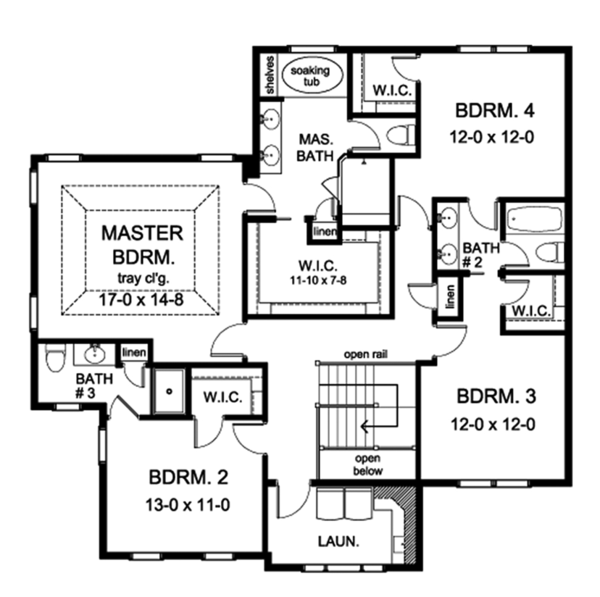

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Dimension

Depth : 48' 4"

Height : 32'

Width : 66' 8"

Area

Basement Unfinished: 1543 sq/ft

First Floor: 1543 sq/ft height 9'

Garage: 782 sq/ft

Second Floor: 1575 sq/ft height 8'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 8:12

Roof Framing : Truss

Roof Type : Asphalt

Secondary Pitch : 12:12

Exterior Wall Framing

Exterior Wall Finish : Siding/Stone

Framing : Wood - 2x6

Bedroom Features

Main Floor Master Bedroom

Walk In Closet

Kitchen Features

Kitchen Island

Kitchenette Wet Bar

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Family Room Keeping Room

Great Room Living Room

Mud Room

Open Floor Plan

Upstairs Laundry

Garage Features

Side Entry Garage

Outdoor Spaces

Covered Front Porch

Rooms

Bedroom 2:

143 sq/ft width 13' x depth 11'

Bedroom 3:

144 sq/ft width 12' x depth 12'

Bedroom 4:

144 sq/ft width 12' x depth 12'

Covered Front Porch:

78 sq/ft

Covered Rear Porch:

165 sq/ft width 18' 4" x depth 9'

Family Dining:

300 sq/ft width 25' 4" x depth 11' 10"

Garage:

782 sq/ft width 22' x depth 34'

Great Room:

367 sq/ft width 18' 4" x depth 20'

Kitchen:

205 sq/ft width 15' x depth 13' 8"

Master Bedroom:

249 sq/ft width 17' x depth 14' 8"

Master Closet:

91 sq/ft width 11' 10" x depth 7' 8"

Study:

134 sq/ft width 12' 4" x depth 10' 10"

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Roof Plan: ?” scale; this shows roof rafter or trusses and how the roof is framed.
CAD Plans are in AutoDesk Architecture.

Questions? Call 1-888-447-1946

Plan Set

PDF Set:
$1640.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set:
$1680.00

5 printed plan sets mailed to you.

CAD Set:
$3280.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Study Set:
$800.00

One electronic set for bidding purposes only. Not a legal building set for construction.

Single Set:
$960.00

One printed set for bidding purposes only. Not a legal building set for construction.

Foundation

Basement:
$0.00

Ideal for level lot, lower level of home partially or fully underground.

Framing

Wood 2x6:
$0.00

Wood 2x6 Exterior Walls

Additional Options

Additional Construction Sets:
$60.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design:
$132.00

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List:
$316.00

Construction Guide:
$31.20

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$132.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets:
$80.00

A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
