This craftsman design floor plan is 3141 sq ft and has 5 bedrooms and 4 bathrooms.
Floor Plans
Floor Plan - Other Floor

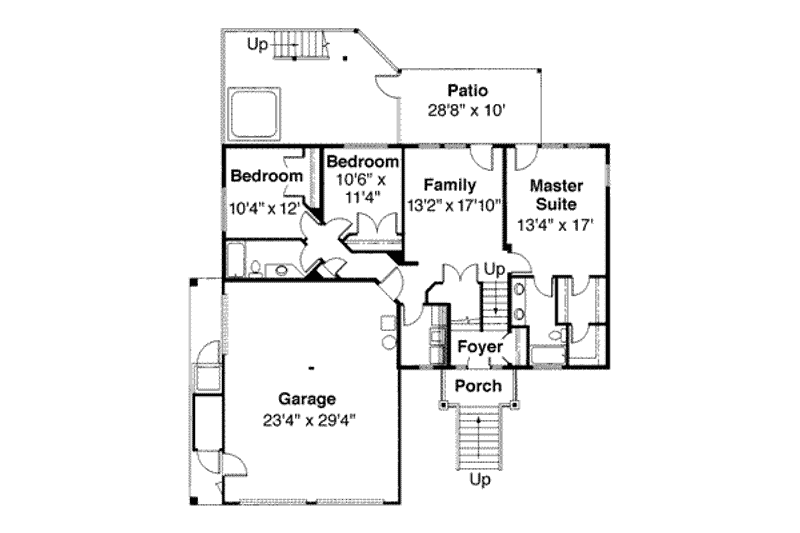

Floor Plan - Main Floor

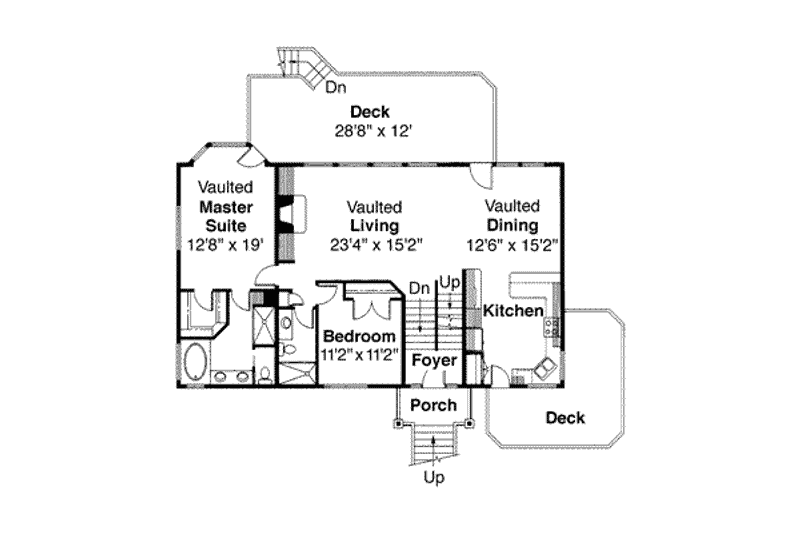

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 53' 4"
Height : 30'
Width : 60'
Area
First Floor: 1490 sq/ft
Garage: 732 sq/ft
Second Floor: 1290 sq/ft
Third Floor: 361 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 9'
Roof
Primary Pitch : 5:12
Roof Framing : Truss
Roof Load : 50
Exterior Wall Framing
Exterior Wall Finish : Siding/Shingle
Framing : 2"x6"
Bedroom Features
2 Master Suites
Guest Suite
Main Floor Master Bedroom
Split Bedrooms
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Great Room Living Room
Loft
Master Sitting Area
Garage Features
Front Entry Garage
Lot Characteristics
Suited For View Lot
Outdoor Spaces
Balcony
Covered Front Porch
Covered Rear Porch
More
Suited For Vacation Home
Code Compliance
Irc 2006
Structural Information Provided
Foundation Drawing
Structural 1st Floor Framing
Structural 2nd Floor Framing
Structural Roof Framing
What's Included In This Plan Set
Please note, if ordering a PDF Print Set, it is not-modifiable. The CAD set is best for making local modifications. The "5 set + PDF" combo contains a non-modifiable PDF Print Set. The "8 set + PDF" combo contains a non-modifiable PDF Print Set.
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
» See important
information before purchasing.
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
- Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

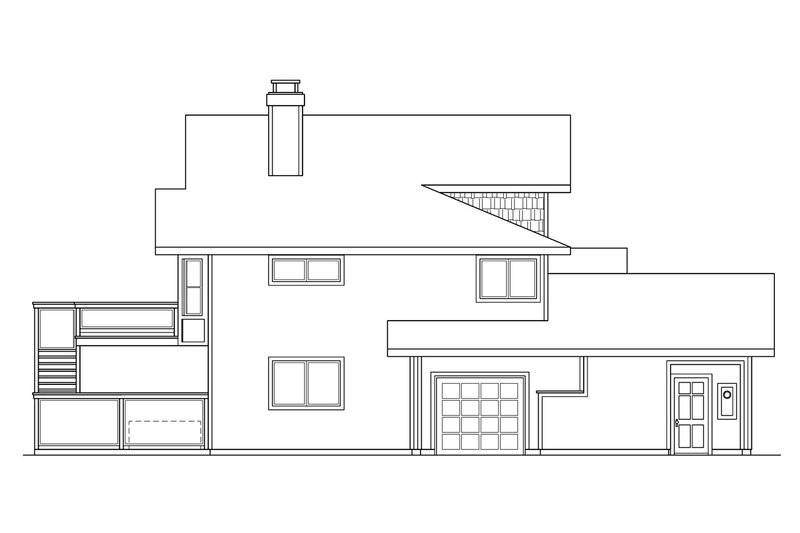

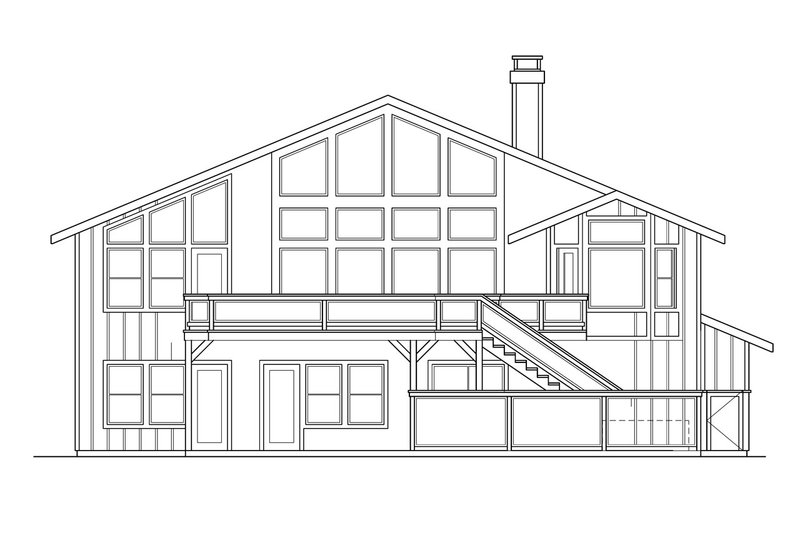

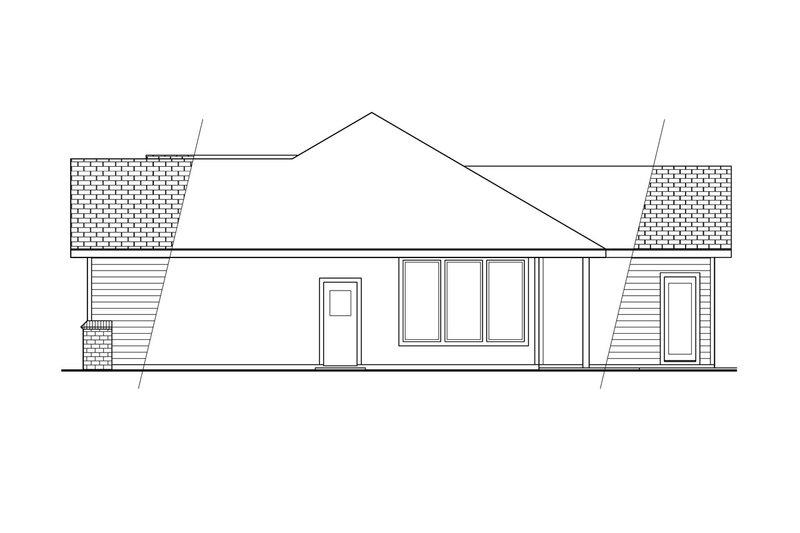

- Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
