PLAN 119-139
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans

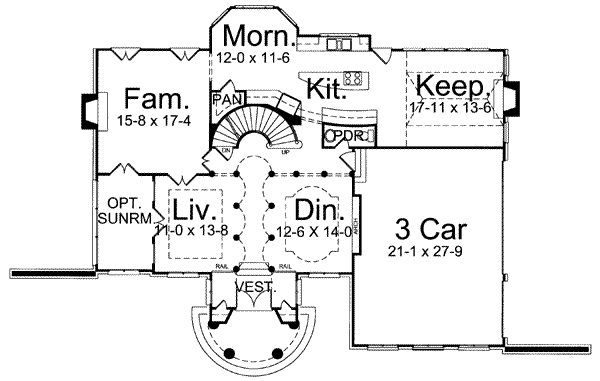

Floor Plan - Main Floor

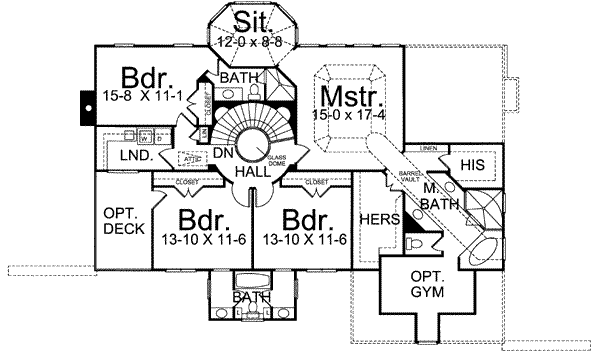

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 48'
Height : 37'
Width : 62'
Area
Basement Unfinished: 1654 sq/ft
First Floor: 1534 sq/ft
Second Floor: 1635 sq/ft
Ceiling
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Roof
Primary Pitch : 12:12
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Shingle
Framing : 2"x4"
Bedroom Features
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Great Room Living Room
Loft
Master Sitting Area
Play Flex Room
Sunroom
Unfinished Future Space
Garage Features
Oversized Garage
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Suited For View Lot
Outdoor Spaces
Balcony
Covered Front Porch
Screened Porch
Rooms
3rd BR Closet:
22 sq/ft width 10' 2" x depth 2' 3"
Bathroom 2:
83 sq/ft width 11' 11" x depth 7'
Bathroom 3:
55 sq/ft width 12' 1" x depth 4' 7"
Bedroom 2:
173 sq/ft width 15' 8" x depth 11' 1"
Bedroom 2 Closet:
22 sq/ft width 10' 2" x depth 2' 3"
Bedroom 3:
159 sq/ft width 13' 10" x depth 11' 6"
Bedroom 3 Closet:
22 sq/ft width 10' 2" x depth 2' 3"
Bedroom 4 Closet:
12 sq/ft width 2' x depth 6' 2"
Breakfast Room:
138 sq/ft width 12' x depth 11' 6"
Dining Room:
175 sq/ft width 12' 6" x depth 14'
Garage:
585 sq/ft width 21' 1" x depth 27' 9"
Gathering Room:
271 sq/ft width 15' 8" x depth 17' 4"
Hall Closet:
5 sq/ft width 2' 9" x depth 2'
Kitchen:
159 sq/ft width 12' 11" x depth 12' 4"
Laundry Room:
67 sq/ft width 10' 7" x depth 6' 4"
Living Room:
150 sq/ft width 11' x depth 13' 8"
Master Bathroom:
246 sq/ft width 14' x depth 17' 7"
Master Bedroom:
259 sq/ft width 15' x depth 17' 4"
Master Closet:
101 sq/ft width 7' 5" x depth 13' 9"
Powder Room:
26 sq/ft width 7' 10" x depth 3' 5"
What's Included In This Plan Set
- Cover Sheet: The cover sheet features an elevation of the home, sheet number index for the plan, and contact information.
- Foundation: These drawings will detail and illustrate the foundation of the home, exterior and interior footings to support the floors and structure above. If a basement is purchased, it will show the stairs, bearing walls, and basement windows and doors.
- First Floor Plan: This page is drawn to ¼”=1’-0” scale and includes exterior dimensions to build the home. The notes are precise directions for your builder. Important features such as built-ins, niches, and appliances are noted. Doors and windows are identified and specific sizing can be found on window and door schedules. *Framing is not included.
- Second Floor Plan: The second floor includes stair details. Often the reflective roof detail is shown legibly over the second floor plan. This is helpful for the framing contractor. *Framing is not included.
- Lighting and Electrical: On this sheet you have a schematic of the lights, electrical plugs, phone location, and code items such as smoke detectors. It is common place to build with your builder and/or electrician before the work starts to review this plan. Careful planning can make your home special and convenient for your family.
- Second Floor Lighting: The same details as provided for the first floor.
- Front and Rear Elevations: The front and rear elevations may be on separate pages depending on the size of the house. This page comes with exterior dimensions and notes required to complete construction. This is where the windows, doors, and interior trim details are illustrated, as well as wall heights, roof pitches and ridge heights.
- Right and Left Elevations: The right and left elevations provide the same details as the front and rear elevations.
- Roof Plan: This drawing, usually at ¼”=1’-0” scale, will be a bird’s eye view of the home. It will show the ridges, hips, and valleys. This page will show a beautifully designed roof.*Framing is not included.
- Cross-Sections: Sections are used to further describe any architectural intent necessary for the builder or framer. This drawing will illustrate important changes in the floor, ceiling, and roof heights.
- Cabinet Elevations*: Cabinet elevations are provided with your plans, and like the electrical plan, they are mainly a guide for estimating purposes. Cabinets are an area that is easy to customize and your builder or cabinet maker will work with you early on in the process to ensure that the correct cabinets are specified. Archival Designs believes cabinets should reflect your taste and budget. After framing and sheet rock installation sizes of walls may change slightly. The cabinet maker must take as built measurements to properly size your cabinets. **NOTE: The majority of house plans will include cabinet elevations in construction set; however, not all will include.
- General Notes: Separate sheets that provide standard construction notes, in addition included are the details required to comply with International Residential Code (IRC) & Southern Building Code (SBC).
Plan Set
$1356.00
$1700.00
$1780.00
$1996.00
Foundation
$0.00
Additional Options
$160.00
$132.00
$316.00
$31.20
$132.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
