PLAN 84-405
Photographs may show modified designs.
- Jump to:
- All (4)
- Floor plans (2)
Get Personalized Help
Key Specs
3216
sq ft
6
Beds
3.5
Baths
2
Floors
2
Garages
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-888-447-1946
Phone: 1-888-447-1946
Hours:
Ready for Your Call 7 Days a Week
Every Day 7 am - 8:30 pm Eastern
See our Terms & Conditions and Privacy Policy.
Wow!
Cost to Build Reports
are Only $4.99
with Code CTB2025 (limit 1)
with Code CTB2025 (limit 1)
This report will provide you cost estimates based on location and building materials.
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 84-405
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
This traditional design floor plan is 3216 sq ft and has 6 bedrooms and 3.5 bathrooms.
Floor Plans

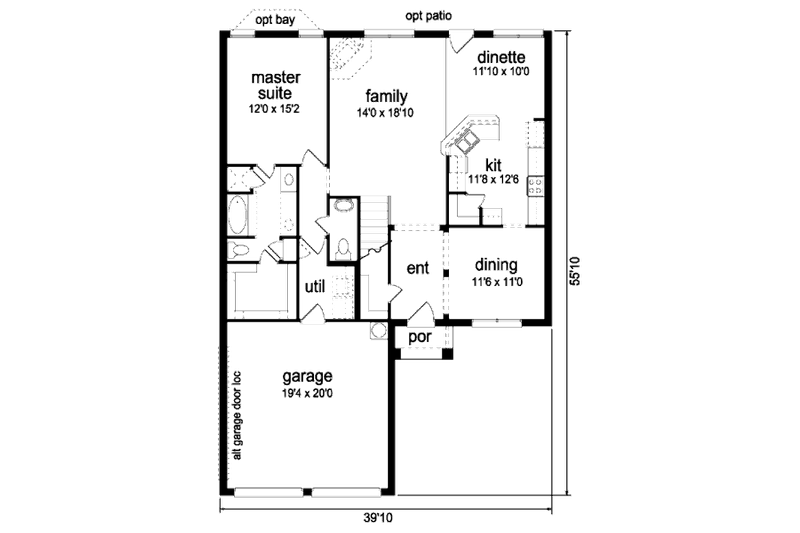

Floor Plan - Main Floor

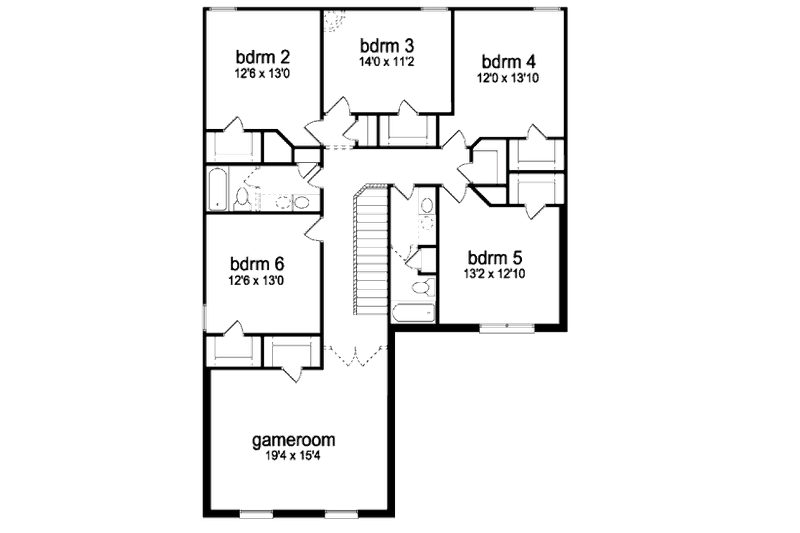

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 55' 10"
Height : 26' 4"
Width : 39' 10"
Area
First Floor: 1404 sq/ft
Second Floor: 1812 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 8'
Upper Ceiling Ft : 8'
Roof
Primary Pitch : 6:12
Roof Framing : Combination Truss/Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Shingle
Framing : 2"x4"
Bedroom Features
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Hobby Rec Room Game Room
Storage Area
Lot Characteristics
Suited For Corner Lot
Suited For Narrow Lot
Outdoor Spaces
Covered Front Porch
What's Included In This Plan Set
- FOUNDATION LAYOUT PLAN: 1/4" Scale - Dimensioned but not engineered. Structural design of foundation needs to be provided by a local structural engineer.
- FRONT RENDERING: 1/4" Scale
- FLOOR PLAN(S): 1/4" Scale - Electrical and plumbing noted directly on plan(s). Mechanical layouts not included.

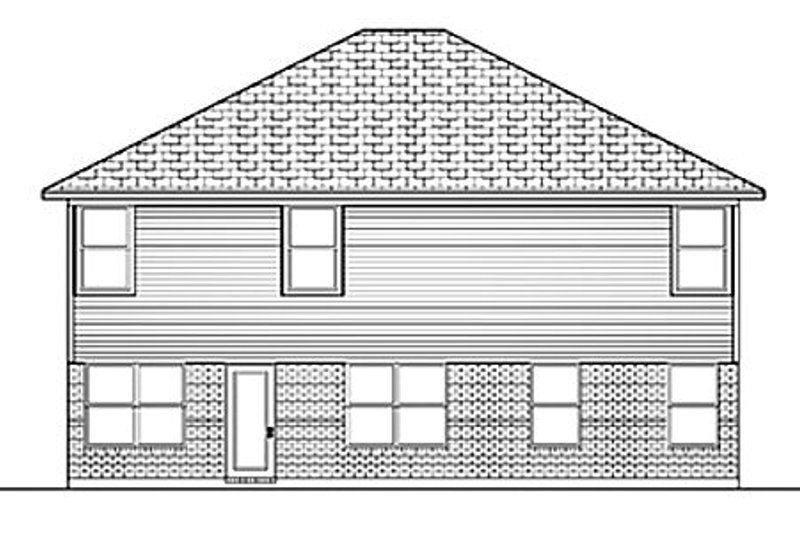

- ELEVATIONS: 1/4" scale rear elevation and 1/8" scale side elevations
- ROOF PLAN: 1/8" scale showing hips, peaks and valleys of roof. Information noted on Elevations page.
- STANDARD DETAIL PAGE: Shows typical building section (not necessarily specific to this plan), and building code notes.
Questions? Call 1-888-447-1946
Plan Set
PDF Set:
$1025.00
$1025.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set:
$1150.00
$1150.00
5 printed plan sets mailed to you.
8 Copy Set:
$1250.00
$1250.00
8 printed plan sets mailed to you.
Reproducible Set:
$1250.00
$1250.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set:
$2050.00
$2050.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Single Set:
$900.00
$900.00
One printed set for bidding purposes only. Not a legal building set for construction.
Foundation
Basement:
$0.00
$0.00
Ideal for level lot, lower level of home partially or fully underground.
Crawlspace:
$0.00
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab:
$0.00
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Additional Options
Right-Reading Reverse:
$200.00
$200.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets:
$50.00
$50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design:
$100.00
$100.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$39.00
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$200.00
$200.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets:
$75.00
$75.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
