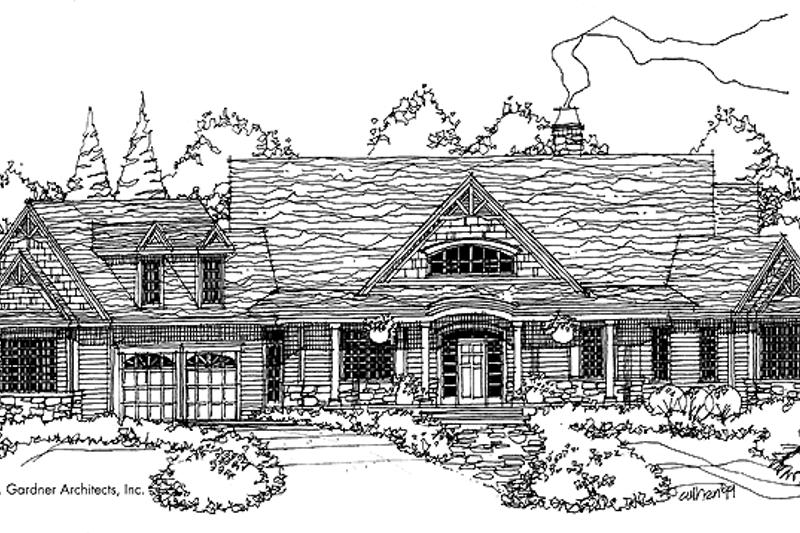

Home Plan - Craftsman Exterior - Front Elevation Plan #929-497

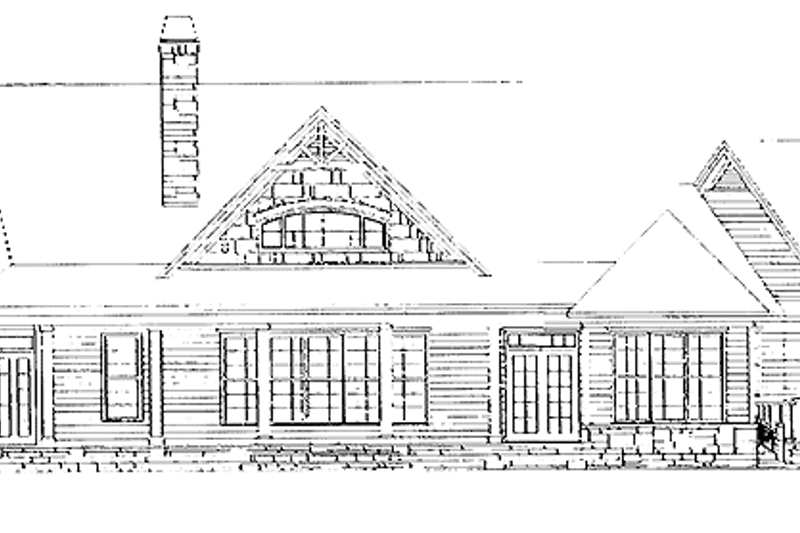

Home Plan - Craftsman Exterior - Rear Elevation Plan #929-497

Home Plan - Craftsman Floor Plan - Main Floor Plan #929-497

Home Plan - Craftsman Floor Plan - Upper Floor Plan #929-497

Jump to:
All (4)
Exterior (2)
Floor plans (2)

Get Personalized Help

Home > Style > Craftsman

Key Specs

3219
sq ft

4
Beds

4
Baths

2
Floors

2
Garages

Select Plan Set Options

What's included?

Additional options

Right-Reading Reverse

$260.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Audio Video Design

$165.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$165.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Material List

$325.00

A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.

Subtotal

$1875.00

Also order by phone: 1-888-447-1946

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-888-447-1946

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

are Only $4.99
with Code CTB2025 (limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost To Build Report

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 929-497

Home > Style > Craftsman

Key Specs

3219
sq ft

4
Beds

4
Baths

2
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

A prominent center gable with an arched window accents the facade of this custom Craftsman home, which features an exterior of cedar shakes, siding, and stone. An open floor plan with generously proportioned rooms contributes to the home's spacious and relaxed atmosphere. The vaulted great room boasts a rear wall of windows, a fireplace bordered by built-in cabinets, and convenient access to the kitchen. A second-floor loft overlooks the great room for added drama. The master suite is completely secluded and enjoys a cathedral ceiling, back-porch access, a large walk-in closet, and a luxurious bath. The home includes three additional bedrooms and baths as well as a vaulted loft/study and a bonus room.

Floor Plans

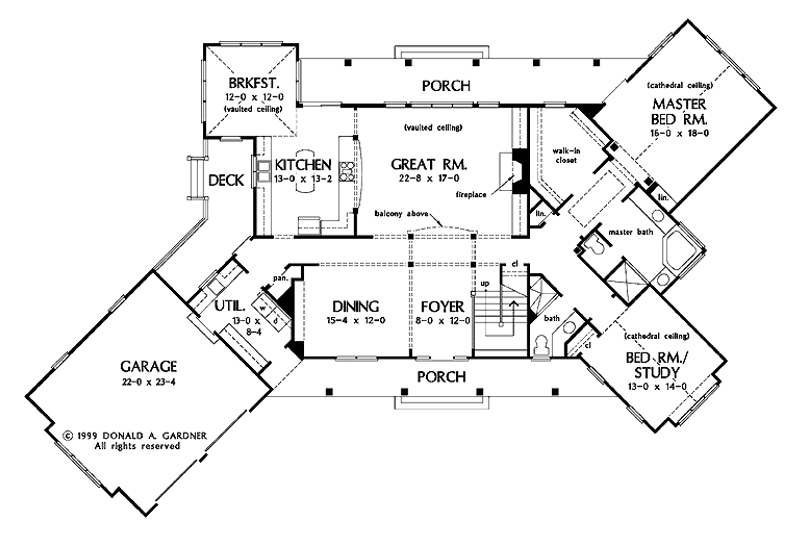

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

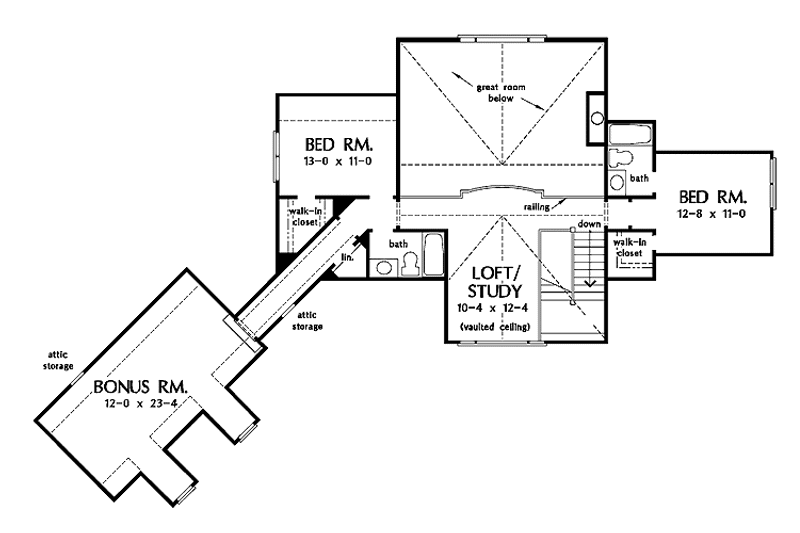

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Dimension

Depth : 66' 2"

Height : 27'

Width : 100'

Area

Bonus: 419 sq/ft

First Floor: 2477 sq/ft

Second Floor: 742 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 10:12

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Siding

Framing : Wood - 2x4

Bedroom Features

Fireplace

Formal Dining Room

Split Bedrooms

Kitchen Features

Kitchen Island

Additional Room Features

Great Room Living Room

Unfinished Future Space

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

Rooms

3rd BR Closet:

27 sq/ft width 5' 5" x depth 5'

Bathroom 2:

27 sq/ft width 5' 6" x depth 5'

Bathroom 3:

40 sq/ft width 5' x depth 8'

Bedroom 2 Closet:

7 sq/ft width 3' 8" x depth 2'

Bedroom 3:

139 sq/ft width 12' 8" x depth 11'

Bedroom 3 Closet:

7 sq/ft width 3' 8" x depth 2'

Bedroom 4:

143 sq/ft width 13' x depth 11'

Bedroom 4 Closet:

36 sq/ft width 6' x depth 6'

Bonus Room - Finished:

296 sq/ft width 12' x depth 24' 8"

Breakfast Room:

144 sq/ft width 12' x depth 12'

Deck:

70 sq/ft width 6' 8" x depth 10' 6"

Dining Room:

183 sq/ft width 15' 4" x depth 12'

Foyer:

96 sq/ft width 8' x depth 12'

Garage:

513 sq/ft width 22' x depth 23' 4"

Gathering Room:

385 sq/ft width 22' 8" x depth 17'

Hall Bathroom:

41 sq/ft width 8' 4" x depth 5'

Kitchen:

171 sq/ft width 13' x depth 13' 2"

Master Bathroom:

144 sq/ft width 12' x depth 12'

Master Bedroom:

288 sq/ft width 16' x depth 18'

Master Closet:

120 sq/ft width 10' 4" x depth 11' 8"

Porch - Front:

233 sq/ft width 46' 8" x depth 5'

Porch - Rear:

277 sq/ft width 46' 4" x depth 6'

Study:

140 sq/ft width 13' x depth 10' 10"

Utility Room:

108 sq/ft width 13' x depth 8' 4"

Walk-In Closet:

39 sq/ft width 3' 4" x depth 12'
