PLAN 27-501

Photographs may show modified designs.

Home Plan - Southern Exterior - Front Elevation Plan #27-501

Home Plan - Southern Floor Plan - Main Floor Plan #27-501

Jump to:
All (2)
Exterior (1)
Floor plans (1)

Get Personalized Help

Home > Style > Southern

Key Specs

3231
sq ft

3
Beds

3
Baths

1
Floors

3
Garages

Select Plan Set Options

What's included?

Additional options

Audio Video Design

$100.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Subtotal

$1930.00

Also order by phone: 1-888-447-1946

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-888-447-1946

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

are Only $4.99
with Code CTB2025 (limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost To Build Report

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 27-501

Home > Style > Southern

Key Specs

3231
sq ft

3
Beds

3
Baths

1
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

This Olde Florida, coastal style house plan offer traditional elements with unique features. With a modest square footage, there are 3 bedrooms and 3 full baths, a formal study and home office, a large great room open all the living areas of the home and a beautiful outdoor living space with a fireplace and high vaulted ceilings! Take advantage of entertaining year round with this house plan, perfect for any coastal or intracoastal lot. Please note, the plan will need to be engineered by local engineering company and truss drawings must be done as well for most locations. This includes all of Florida. Can only be built in the Florida counties of Collier and Lee with written consent of the designer.

Floor Plans

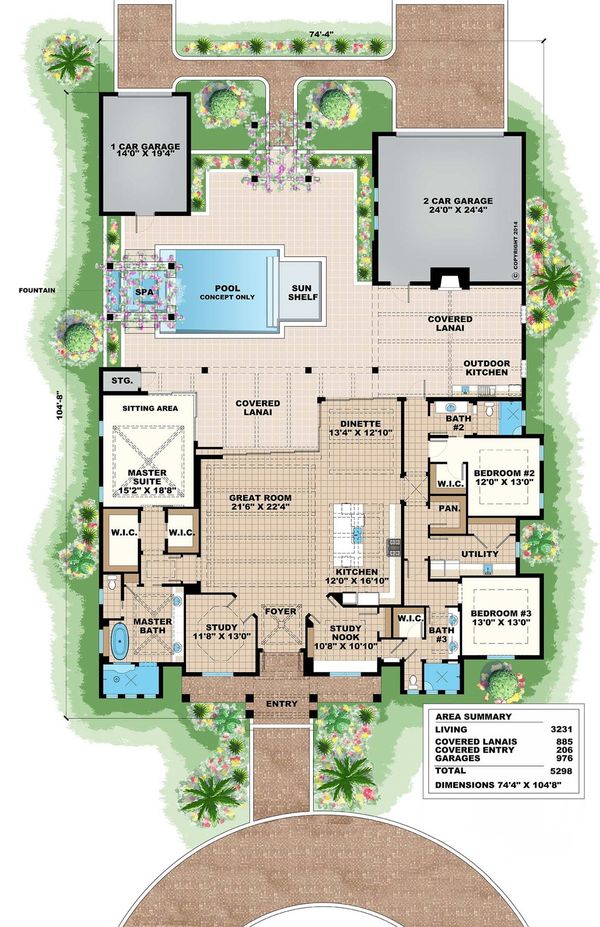

Floor Plan - Main Floor

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Full Specs & Features

Dimension

Depth : 104' 8"

Height : 30'

Width : 74' 4"

Area

Garage : 976 sq/ft

Main Floor : 3231 sq/ft

Porch : 885 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Vault, Coffer, FLat

Main Ceiling : 12'

Roof

Primary Pitch : 8:12

Roof Framing : Mfg Trusses

Roof Type : Metal

Exterior Wall Framing

Exterior Wall Finish : Hardie Board Siding

Framing : CMU

Bedroom Features

Guest Suite

Main Floor Bedrooms

Main Floor Master Bedroom

Split Bedrooms

Walk In Closet

Additional Room Features

Den Office Study Computer

Great Room Living Room

Garage Features

Detached Garage

Rear Entry Garage

Split Garage

Lot Characteristics

Suited For Narrow Lot

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

Outdoor Kitchen Grill

Empty Nester

Jack & Jill Bath

Suited For Vacation Home

Wheelchair Adaptable

What's Included In This Plan Set

See a sample plan set

Please call if building in Lee and Collier Counties of Florida, restrictions apply.

Material Labels
Foor-to-Floor Heights
Roof Slope Indicators

Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes
Electrical Layouts
Building Section Markers
All Electrical Outlets, Fixtures, and Switching
Floor and Deck Joist Size and Spacing
Rough-in Plumbing Location (if applicable)
Mechanical Equipment Locations (if applicable)
Electrical Locations (if applicable)

All Beam and Header Heights and Locations
All Hips, Gables, Ridges and Valleys
Building Section Markers

Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated

All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness

Miscellaneous General Notes
Stairway details (if applicable)

Please Note: This design will not come with a foundation. The foundation should be created by a local structural engineer.

Questions? Call 1-888-447-1946

Plan Set

CAD Set:
$1930.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

PDF Set:
$1930.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Reproducible Set:
$1930.00

For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

Foundation

Slab:
$0.00

Ideal for level lot, single layer concrete poured directly on grade.

Additional Options

Audio Video Design:
$100.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide:
$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
