PLAN 5-242
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
This ranch design floor plan is 3281 sq ft and has 5 bedrooms and 3.5 bathrooms.
Floor Plans

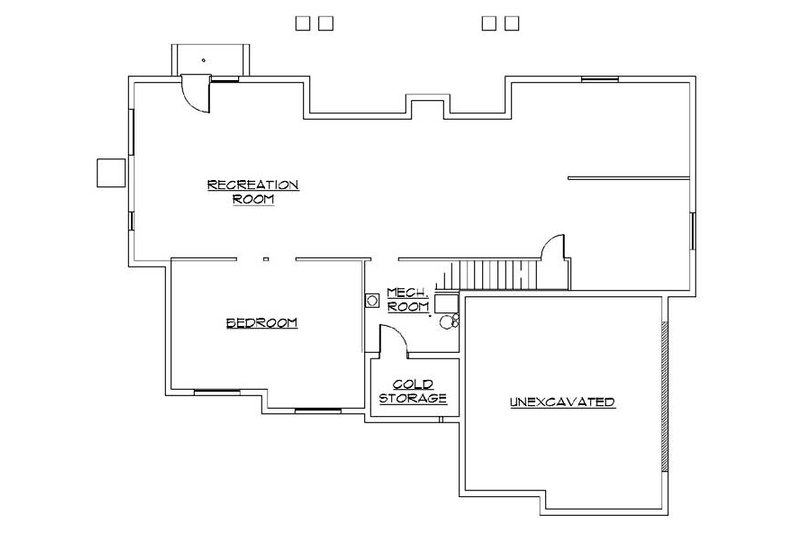

Floor Plan - Lower Floor

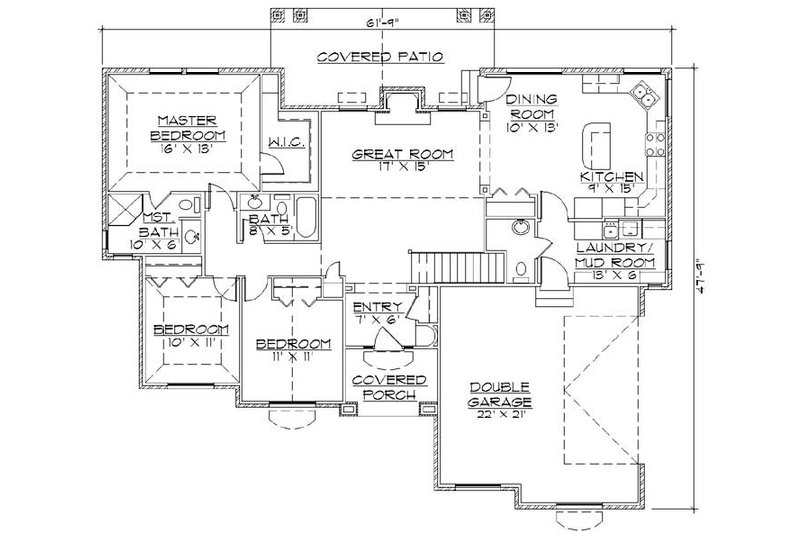

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 48'
Height : 22'
Width : 62'
Area
Lower Floor : 1566 sq/ft
Main Floor : 1715 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 9'
Roof
Primary Pitch : 8:12
Exterior Wall Framing
Framing : 2"x4"
Code Compliance
Irc 2006
Structural Information Provided
Foundation Drawing
What's Included In This Plan Set
All plans are drawn at ¼" scale or larger and include : IMPORTANT NOTE: Study Set Includes: floor plans (main / upper / basement (if available) ) - exterior elevations.
» See important
information before purchasing.
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

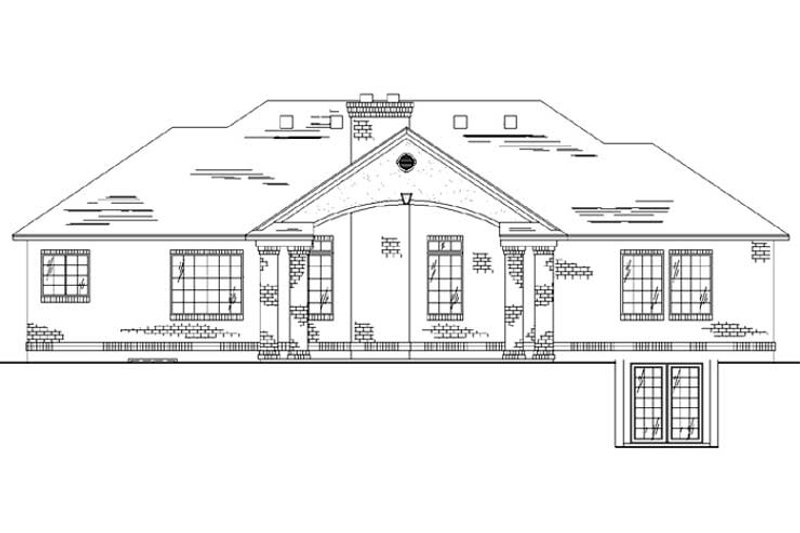

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Questions? Call 1-888-447-1946
Plan Set
PDF Set:
$2000.00
$2000.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set:
$2000.00
$2000.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
Study Set:
$350.00
$350.00
One electronic set for bidding purposes only. Not a legal building set for construction.
Foundation
Basement:
$0.00
$0.00
Ideal for level lot, lower level of home partially or fully underground.
Crawlspace:
$0.00
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab:
$0.00
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Additional Options
Right-Reading Reverse:
$500.00
$500.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Audio Video Design:
$100.00
$100.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$39.00
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$200.00
$200.00
Receive an overlay sheet with suggested placement of lighting fixtures.
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
