PLAN 429-210
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 62' 9"
Height : 31'
Width : 61' 9"
Area
First Floor: 1959 sq/ft
Second Floor: 1408 sq/ft
Roof
Primary Pitch : 9:12
Roof Framing : Conventional
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x4
Bedroom Features
Fireplace
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms
Bedroom 2:
192 sq/ft width 16' x depth 12'
Bedroom 3:
192 sq/ft width 16' x depth 12'
Bedroom 4:
184 sq/ft width 16' x depth 11' 6"
Bonus Room - Finished:
422 sq/ft width 17' 3" x depth 24' 6"
Breakfast Room:
115 sq/ft width 13' 3" x depth 8' 9"
Dining Room:
189 sq/ft width 15' 9" x depth 12'
Garage:
536 sq/ft width 23' x depth 23' 4"
Gathering Room:
351 sq/ft width 18' x depth 19' 6"
Kitchen:
202 sq/ft width 13' 3" x depth 15' 3"
Living Room:
189 sq/ft width 15' 9" x depth 12'
Master Bathroom:
177 sq/ft width 13' 8" x depth 13'
Master Bedroom:
351 sq/ft width 18' x depth 19' 6"
Master Closet:
96 sq/ft width 8' 2" x depth 11' 10"
Porch - Rear:
269 sq/ft width 40' 5" x depth 6' 8"
Utility Room:
64 sq/ft width 10' 8" x depth 6'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

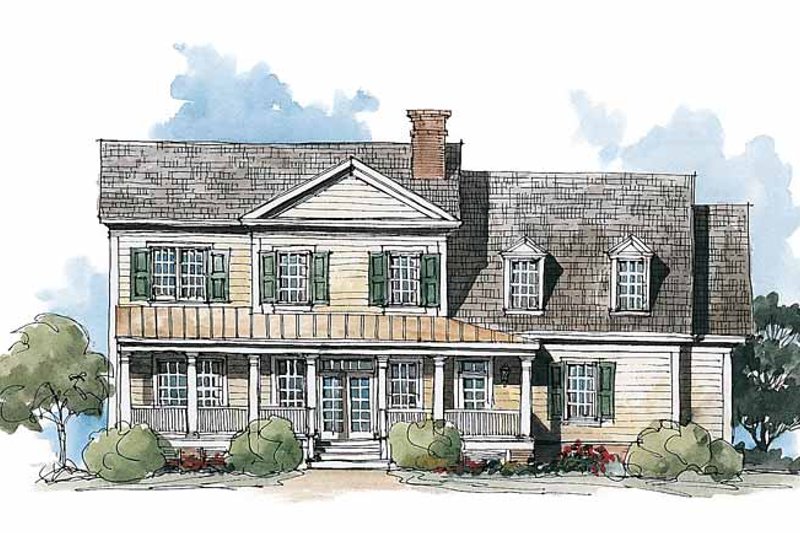

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

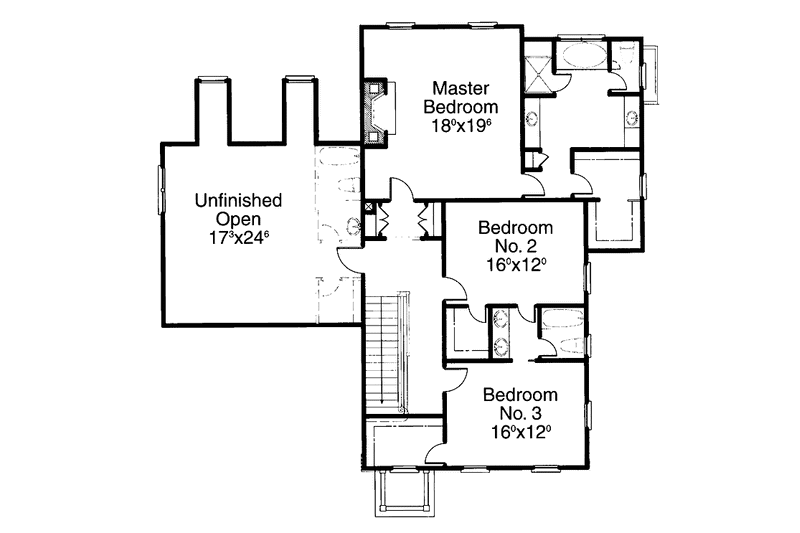

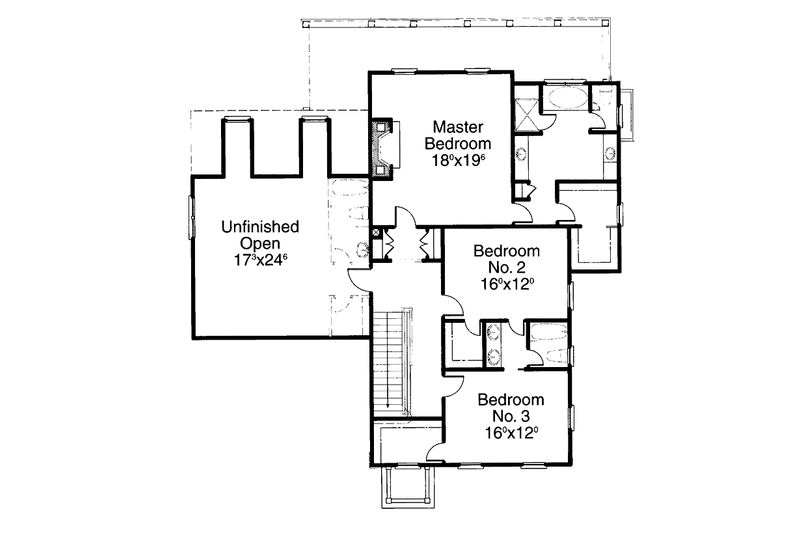

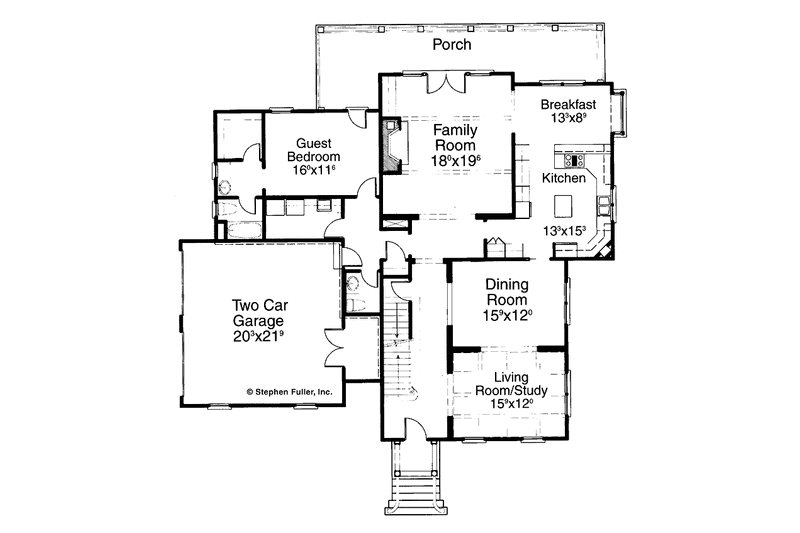

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$900.00
$1000.00
$1250.00
$1250.00
$800.00
Foundation
$0.00
Framing
$0.00
Additional Options
$65.00
$100.00
$39.00
$200.00
$85.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
