Key Specs
3516
sq ft
4
Beds
3.5
Baths
2
Floors
2
Garages
Phone: 1-888-447-1946
See our Terms & Conditions and Privacy Policy.
with Code CTB2024 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 1017-92
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 81' 4"
Height : 33' 1"
Width : 56' 2"
Area
First Floor: 2227 sq/ft
Second Floor: 1289 sq/ft
Roof
Primary Pitch : 7:12
Roof Framing : Truss
Roof Type : Tile
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Block
Bedroom Features
Formal Dining Room
Main Floor Master Bedroom
Additional Room Features
Den Office Study Computer
Great Room Living Room
Loft
Main Floor Laundry
Outdoor Spaces
Balcony
Rooms

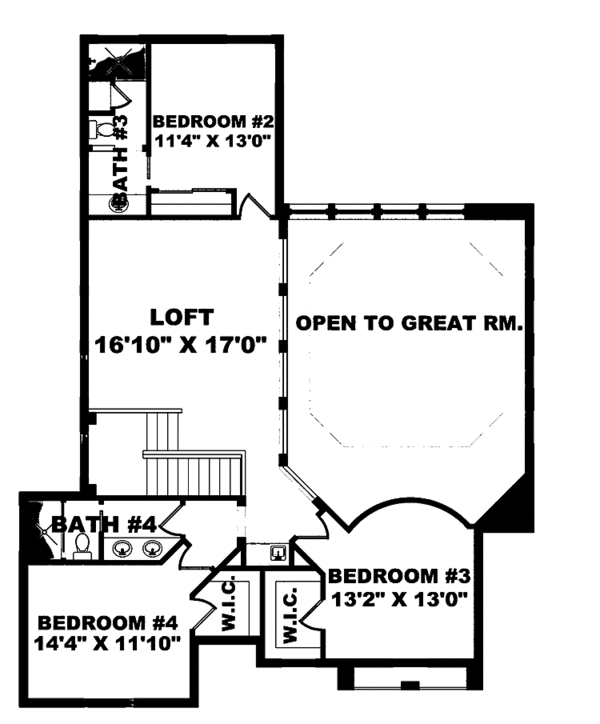

Bedroom 2:
147 sq/ft width 11' 4" x depth 13'
Bedroom 3:
171 sq/ft width 13' 2" x depth 13'
Bedroom 4:
169 sq/ft width 14' 4" x depth 11' 10"

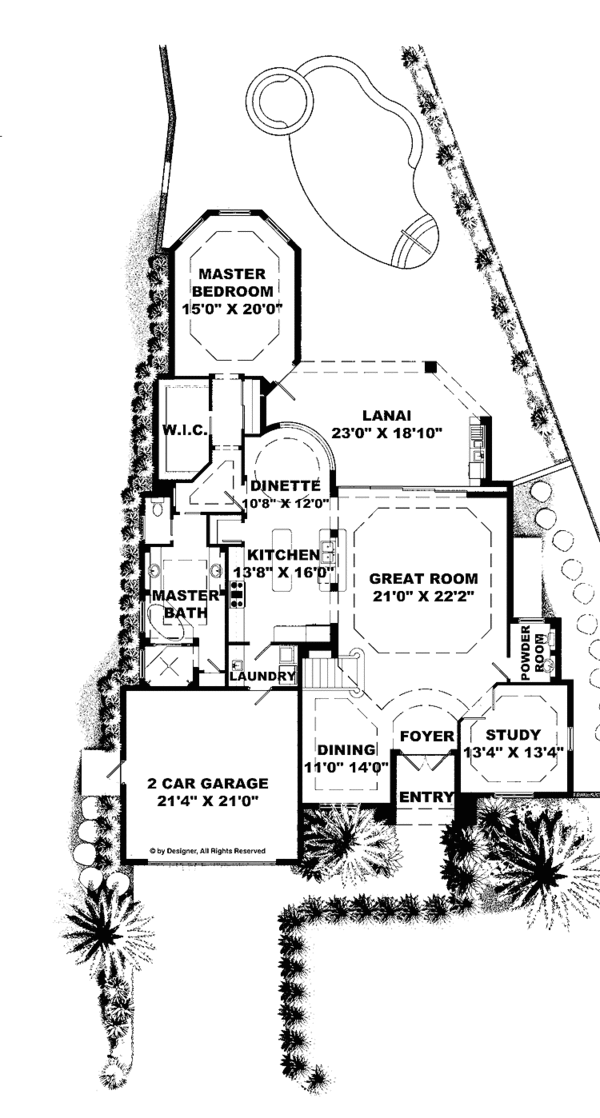

Dinette:
128 sq/ft width 10' 8" x depth 12'
Dining Room:
154 sq/ft width 11' x depth 14'
Garage:
447 sq/ft width 21' 4" x depth 21'
Great Room:
465 sq/ft width 21' x depth 22' 2"
Kitchen:
218 sq/ft width 13' 8" x depth 16'
Lanai:
433 sq/ft width 23' x depth 18' 10"
Loft:
286 sq/ft width 16' 10" x depth 17'
Master Bedroom:
300 sq/ft width 15' x depth 20'
Study:
177 sq/ft width 13' 4" x depth 13' 4"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$1400.00
$1400.00
$1400.00
Foundation
$0.00
Framing
$0.00
Additional Options
$90.00
$100.00
$39.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
