PLAN 34-121
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description

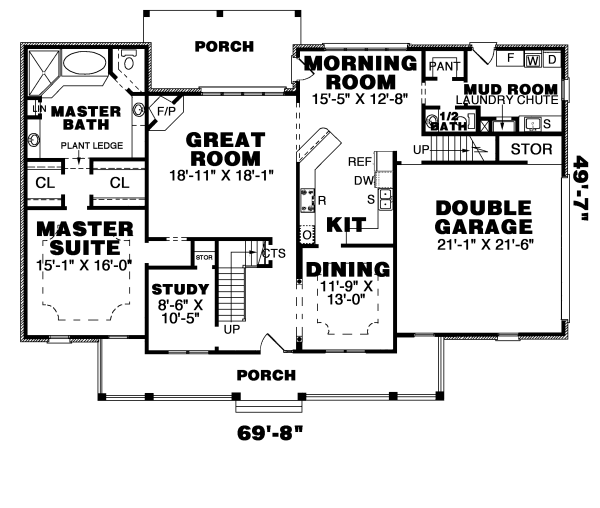

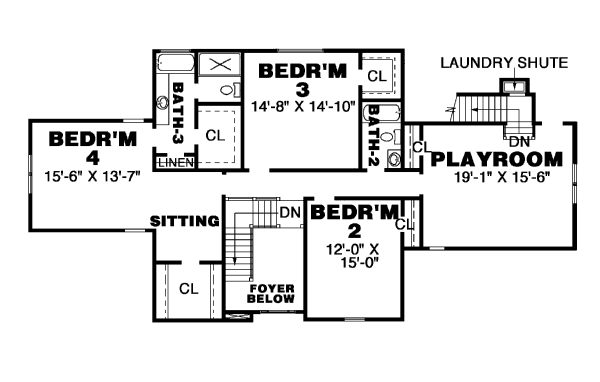

Floor Plans
Full Specs & Features
Dimension
Depth : 49' 7"
Height : 30'
Width : 69' 8"
Area
First Floor: 2065 sq/ft height 9'
Second Floor: 1554 sq/ft
Ceiling
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Roof
Primary Pitch : 8:12
Roof Framing : Conventional
Roof Type : Shingle
Secondary Pitch : 10:12
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2"x4"
Bedroom Features
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Hobby Rec Room Game Room
Storage Area
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms
Bedroom 2:
180 sq/ft width 12' x depth 15'
Bedroom 3:
217 sq/ft width 14' 8" x depth 14' 10"
Bedroom 4:
210 sq/ft width 15' 6" x depth 13' 7"
Dining Room:
152 sq/ft width 11' 9" x depth 13'
Garage:
453 sq/ft width 21' 1" x depth 21' 6"
Great Room:
342 sq/ft width 18' 11" x depth 18' 1"
Master Suite:
241 sq/ft width 15' 1" x depth 16'
Morning Room:
195 sq/ft width 15' 5" x depth 12' 8"
Play Room:
295 sq/ft width 19' 1" x depth 15' 6"
Study:
88 sq/ft width 8' 6" x depth 10' 5"
What's Included In This Plan Set
- Foundation plan (slab type) ( 1/4"= 1'-0" in most cases)
- Floor plans including electrical layout (1/4" = 1'-0" in most cases)
- Set of elevations (all four sides)
- Building section(s) stairs & vaulted ceiling details
- Roof plan
- Kitchen & bath elevations
- Miscellaneous details
- Typical detail sheets
Plan Set
$1300.00
$1900.00
$1900.00
$1900.00
$2650.00
$950.00
Foundation
$0.00
Additional Options
$125.00
$100.00
$39.00
$200.00
$0.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
