PLAN 1017-95

Home > Style > Mediterranean

Key Specs

3763
sq ft

5
Beds

3
Baths

2
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

An elevator links all three levels of this splendid (and surprisingly compact) Mediterranean abode, from the vast garage space on the first floor to the open kitchen and great room (plus three bedrooms) above, all the way to the private third level, which is completely devoted to the master suite. Up here, owners can relax in the big bedroom, the lounge, in the massive corner tub, or on the covered balcony. A wet bar and enormous closet complete this top-level oasis. Note: First story walls constructed of concrete block; upper stories concrete block / Wood 2 X 4 combination

Floor Plans

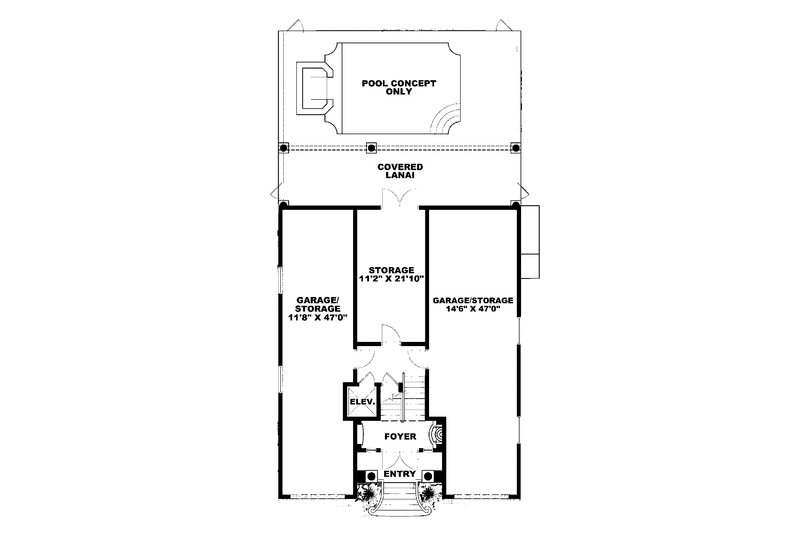

Floor Plan - Lower Floor

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

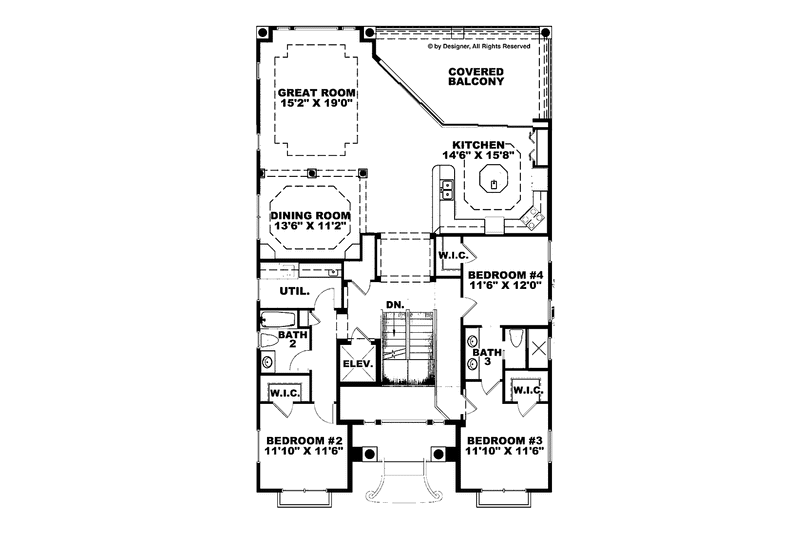

Floor Plan - Main Floor

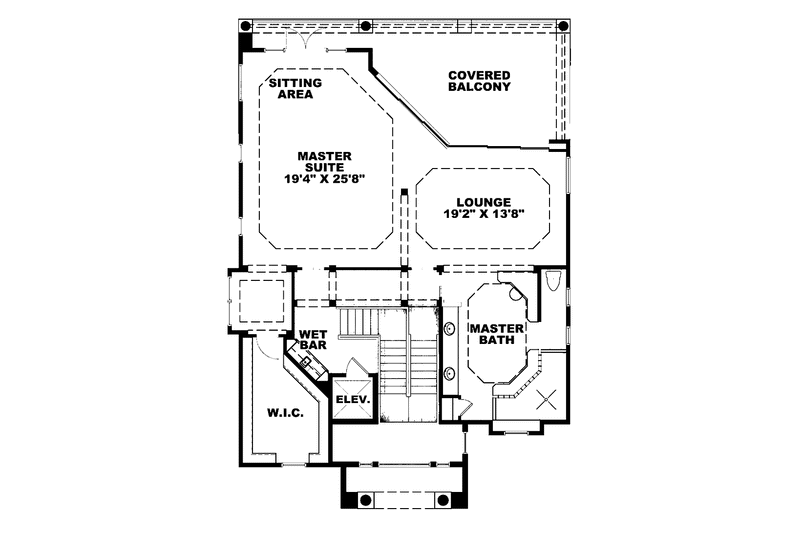

Floor Plan - Upper Floor

Full Specs & Features

Dimension

Depth : 77' 2"

Height : 40' 4"

Width : 40'

Area

First Floor: 2135 sq/ft

Garage: 1641 sq/ft

Second Floor: 1641 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 6:12

Roof Framing : Truss

Roof Type : Tile

Exterior Wall Framing

Exterior Wall Finish : Stucco

Bedroom Features

Upstairs Master Bedrooms

Walk In Closet

Additional Room Features

Loft

Master Sitting Area

Outdoor Spaces

Balcony

Covered Front Porch

Covered Rear Porch

Wheelchair Adaptable

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
