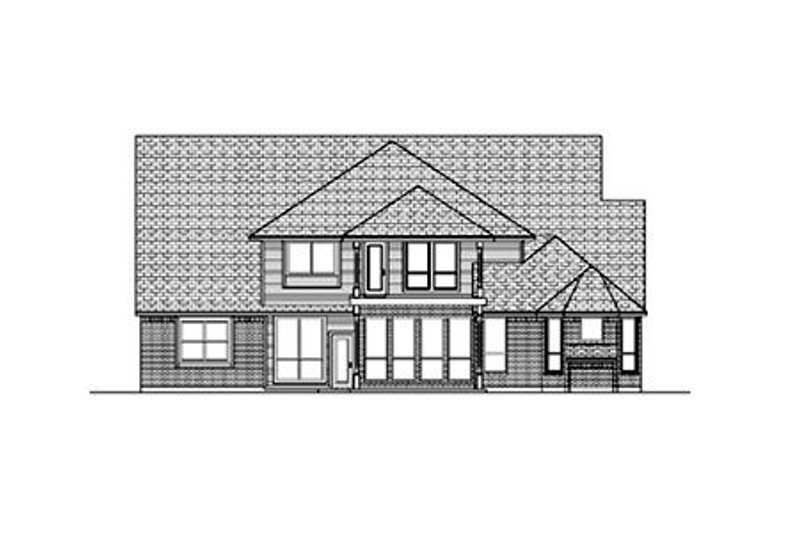

Home Plan - Colonial Exterior - Rear Elevation Plan #84-421

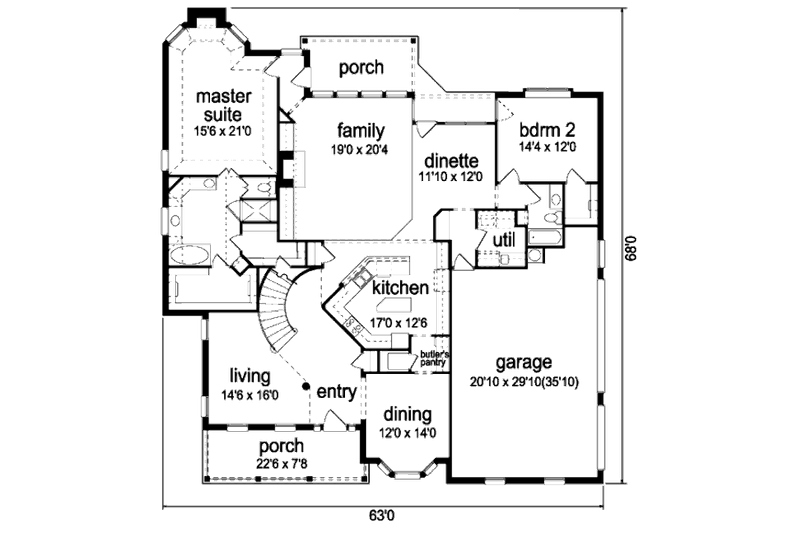

Home Plan - Colonial Floor Plan - Main Floor Plan #84-421

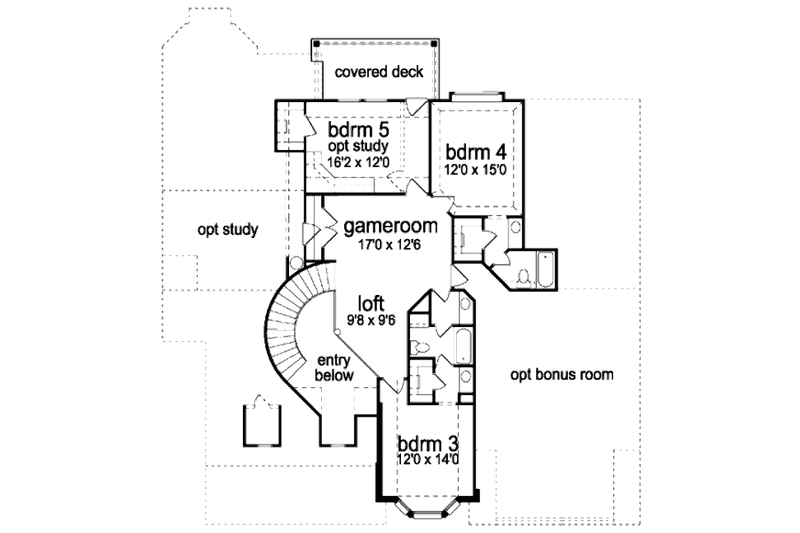

Home Plan - Colonial Floor Plan - Upper Floor Plan #84-421

Jump to:
All (4)
Exterior (2)
Floor plans (2)

Get Personalized Help

Home > Style > Colonial

Key Specs

3814
sq ft

5
Beds

4
Baths

2
Floors

3
Garages

Select Plan Set Options

What's included?

Additional options

Right-Reading Reverse

$160.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$40.00/each

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$80.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$31.20

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$160.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets

$60.00

Printed sets showing plan in reverse, text and dimensions will be backwards.

Subtotal

$1100.00 NOW $880.00

You save $220.00 (20% savings)

Sale ends soon!

Also order by phone: 1-888-447-1946

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-888-447-1946

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

are Only $4.99
with Code CTB2025 (limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost To Build Report

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 84-421

Home > Style > Colonial

Key Specs

3814
sq ft

5
Beds

4
Baths

2
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

This colonial design floor plan is 3814 sq ft and has 5 bedrooms and 4 bathrooms.

Floor Plans

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Dimension

Depth : 68'

Height : 31' 8"

Width : 63'

Area

First Floor: 2620 sq/ft

Second Floor: 1194 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 10'

Upper Ceiling Ft : 8'

Roof

Primary Pitch : 10:12

Roof Framing : Combination Truss/Conventional

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Brick/Shingle

Framing : 2"x4"

Bedroom Features

Guest Suite

Main Floor Bedrooms

Main Floor Master Bedroom

Split Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Butler's Pantry

Eating Bar

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Family Room Keeping Room

Hobby Rec Room Game Room

Loft

Play Flex Room

Storage Area

Unfinished Future Space

Garage Features

Oversized Garage

Side Entry Garage

Lot Characteristics

Suited For Corner Lot

Suited For View Lot

Outdoor Spaces

Balcony

Covered Front Porch

Covered Rear Porch

What's Included In This Plan Set

See a sample plan set

FOUNDATION LAYOUT PLAN: 1/4" Scale - Dimensioned but not engineered. Structural design of foundation needs to be provided by a local structural engineer.
FRONT RENDERING: 1/4" Scale
FLOOR PLAN(S): 1/4" Scale - Electrical and plumbing noted directly on plan(s). Mechanical layouts not included.
ELEVATIONS: 1/4" scale rear elevation and 1/8" scale side elevations
ROOF PLAN: 1/8" scale showing hips, peaks and valleys of roof. Information noted on Elevations page.
STANDARD DETAIL PAGE: Shows typical building section (not necessarily specific to this plan), and building code notes.

Questions? Call 1-888-447-1946

Plan Set

PDF Set:
$880.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set:
$928.00

5 printed plan sets mailed to you.

8 Copy Set:
$1008.00

8 printed plan sets mailed to you.

Reproducible Set:
$1008.00

For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

CAD Set:
$1700.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Single Set:
$768.00

One printed set for bidding purposes only. Not a legal building set for construction.

Foundation

Basement:
$0.00

Ideal for level lot, lower level of home partially or fully underground.

Crawlspace:
$0.00

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab:
$0.00

Ideal for level lot, single layer concrete poured directly on grade.

Additional Options

Right-Reading Reverse:
$160.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets:
$40.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design:
$80.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide:
$31.20

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$160.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets:
$60.00

A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
