PLAN 942-11
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans

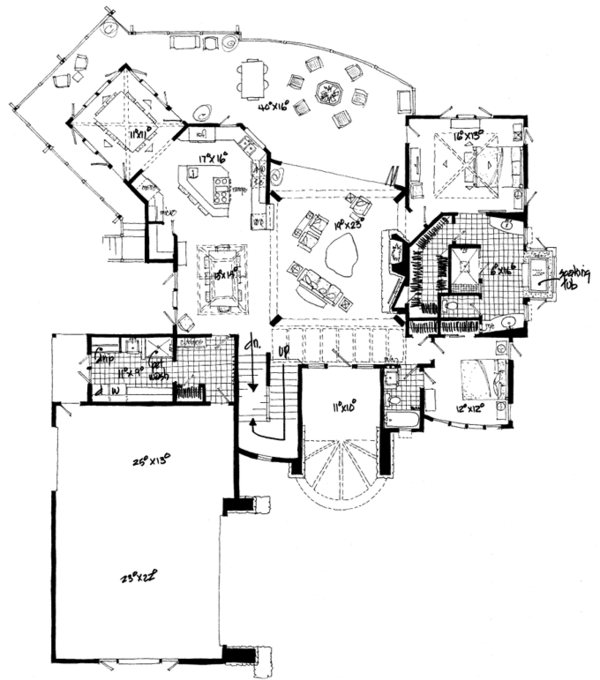

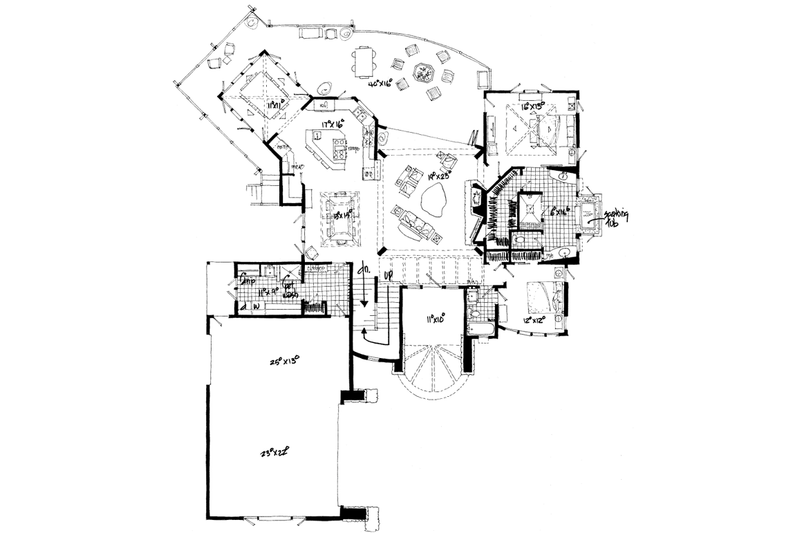

Floor Plan - Main Floor

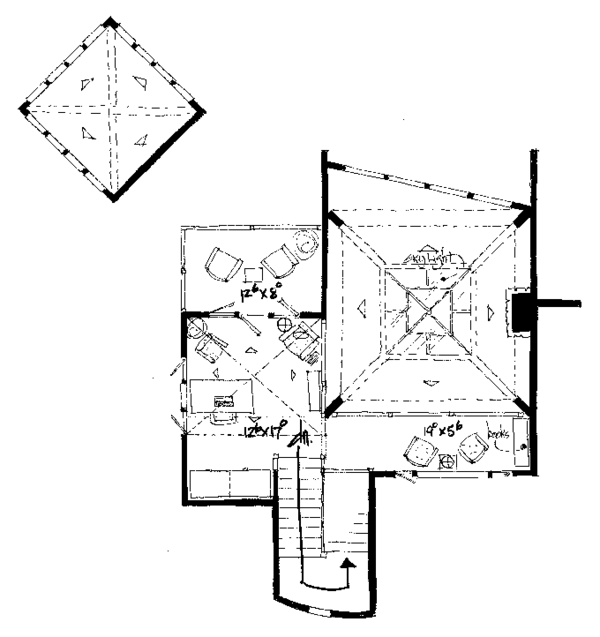

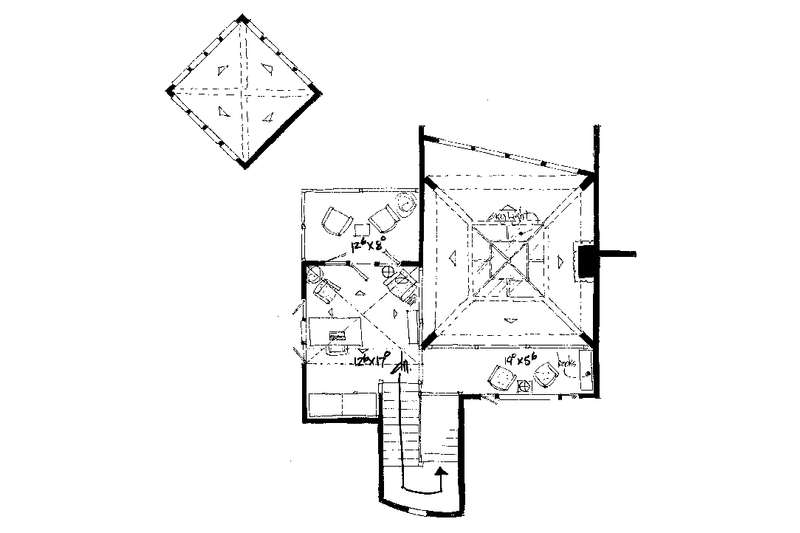

Floor Plan - Upper Floor

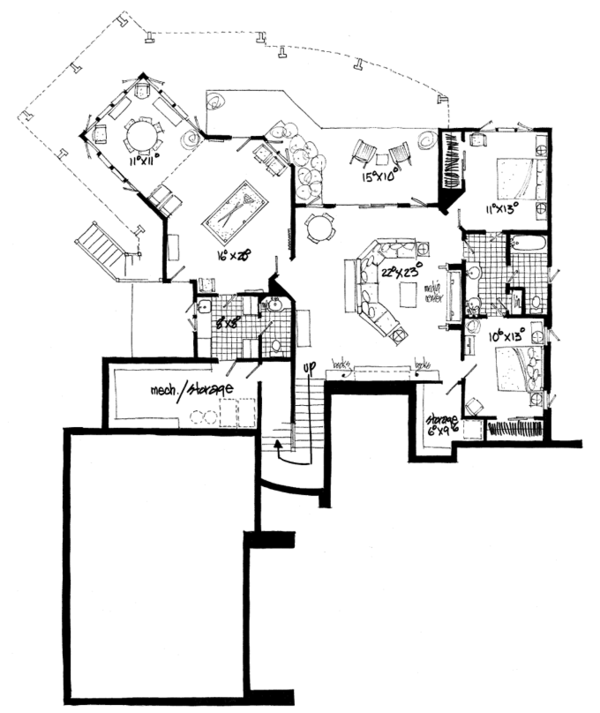

Floor Plan - Lower Floor
Floor Plan - Other Floor
Full Specs & Features
Dimension
Depth : 84'
Height : 31' 5"
Width : 70' 6"
Area
Basement Living: 1640 sq/ft
First Floor: 2225 sq/ft
Garage: 900 sq/ft
Second Floor: 220 sq/ft
Roof
Primary Pitch : 6:12
Roof Framing : Combination Truss/Conventional
Roof Type : Build-Up
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : Wood - 2x6 Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Guest Suite
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Kitchenette Wet Bar
Additional Room Features
Den Office Study Computer
Exercise Room
Family Room Keeping Room
Great Room Living Room
Hobby Rec Room Game Room
Loft
Main Floor Laundry
Media Room
Mud Room
Open Floor Plan
Storage Area
Vaulted / Cathedral Ceilings
Workshop
Garage Features
Golf Cart Storage
Side Entry Garage
Outdoor Spaces
Balcony
Courtyard
Covered Front Porch
Covered Rear Porch
Deck
Wrap Around Porch
Rooms
Bedroom 2:
width 12' x depth 12'
Bedroom 3:
width 11' x depth 13'
Bedroom 4:
width 10' 6" x depth 13'
Dining Room:
width 13' x depth 14'
Family Room:
width 22' x depth 23'
Front Porch:
width 11' x depth 10'
Game Room:
width 11' x depth 11'
Garage 1:
width 23' x depth 22'
Garage 2:
width 25' x depth 13'
Great Room:
width 19' x depth 23'
Home Office/Den:
width 12' 6" x depth 17'
Kitchen:
width 17' x depth 16'
Laundry Room:
width 11' x depth 9'
Lower Level Laundry Room:
width 8' x depth 8'
Lower Level Patio:
width 15' x depth 10'
Main Level Rear Deck:
width 40' x depth 16'
Master Bath:
width 6' x depth 16'
Master Bedroom:
width 16' x depth 13'
Nook:
width 11' x depth 11'
Pool Room:
width 16' x depth 20'
Storage:
width 6' x depth 9' 6"
Upper Level Deck:
width 12' 6" x depth 8'
Upper Level Study Area:
width 19' x depth 5' 6"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

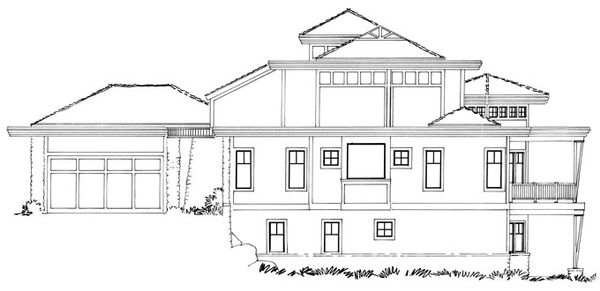

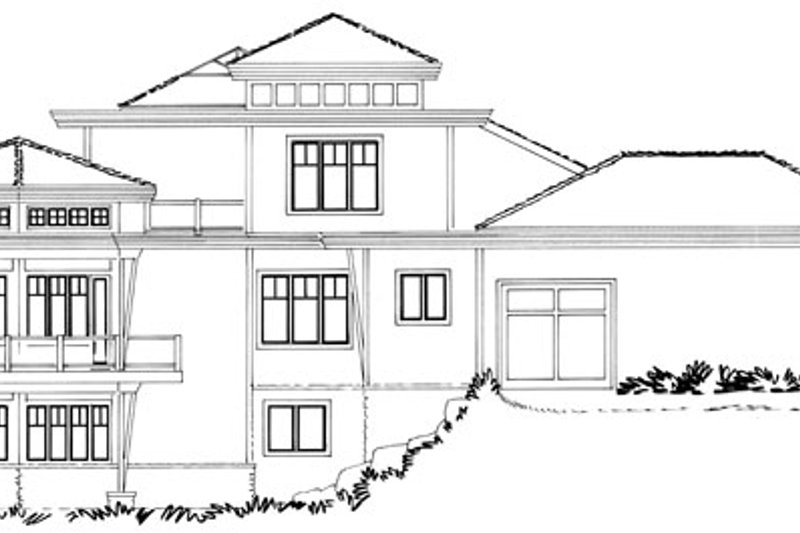

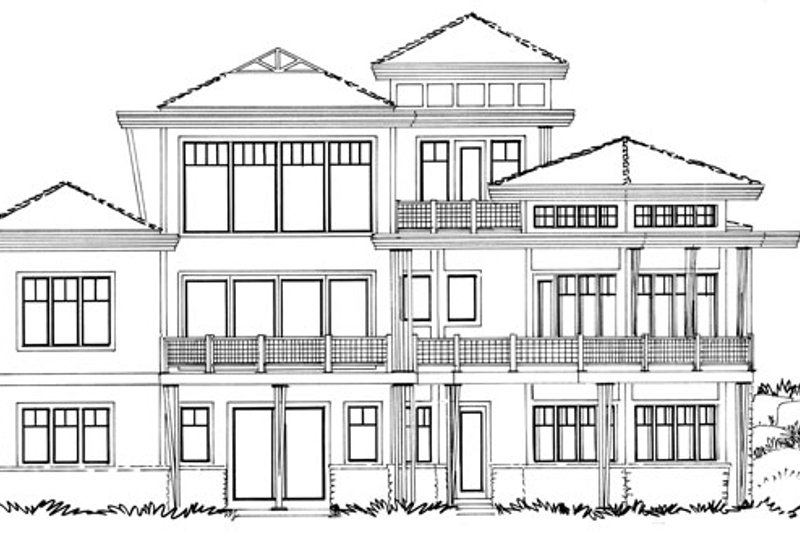

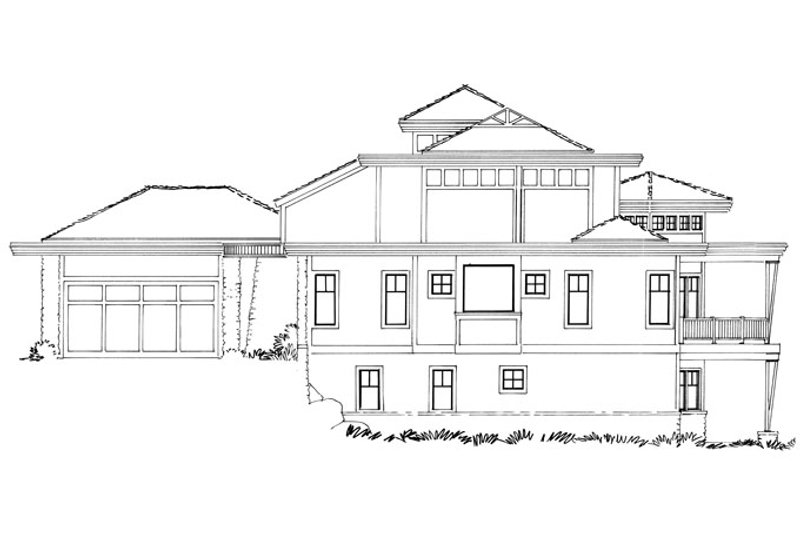

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
